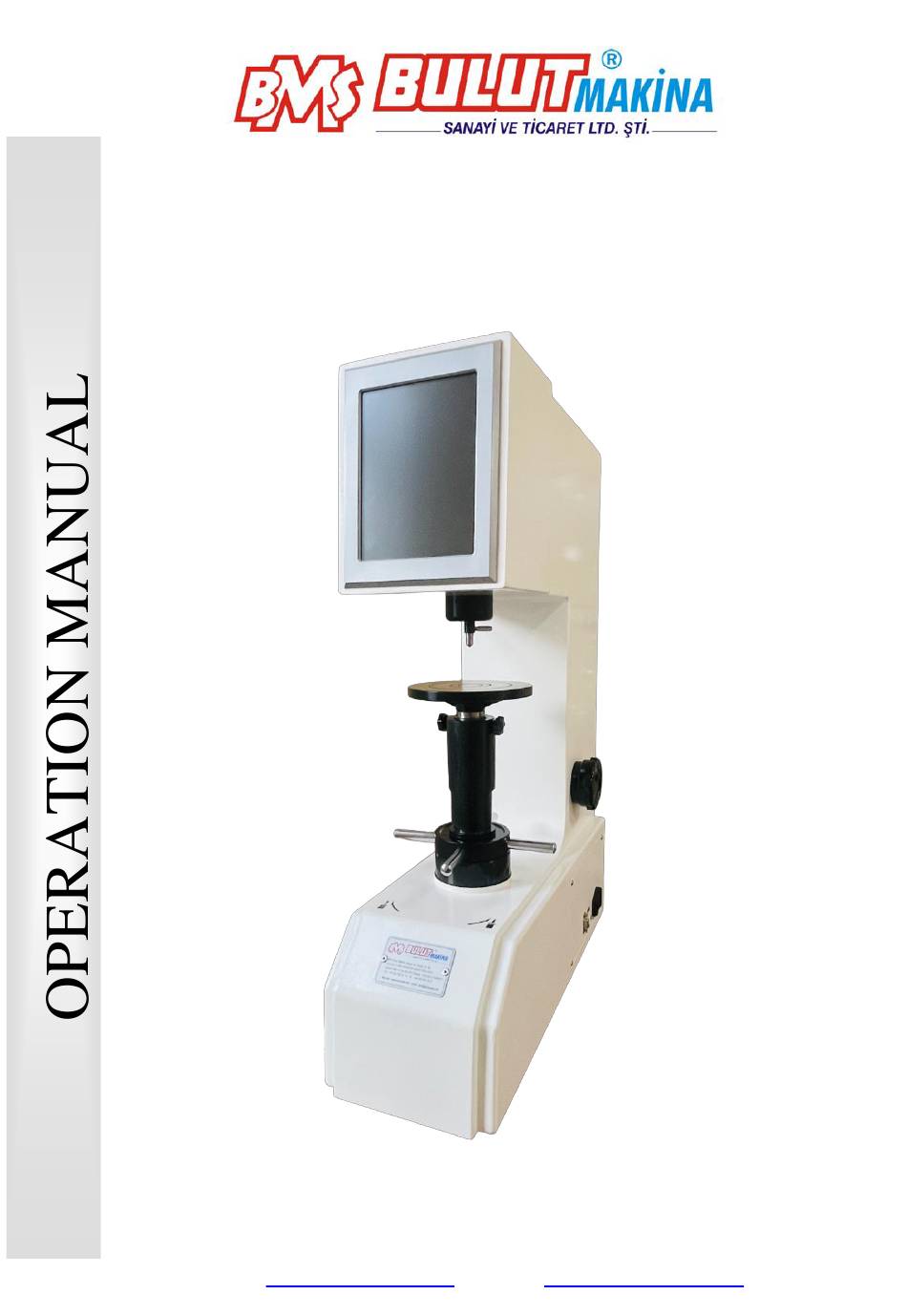

- Page 1 DIGIROCK-RMC Digital Rockwell Hardness Tester BMS Bulut Makina Sanayi ve Ticaret Ltd. Şti. Kocaeli KOBİ Organize Sanayi Bölgesi Köseler Mahallesi, 6.Cadde No: 20/2 Dilovası / KOCAELİ / TURKEY Phone: +90 262 502 97 73-76 / +90 262 503 06 51 Web: www.bulutmak.com...
- Page 2 Main Description ................................2 The Technical Specifications of the Hardness Tester....................2 The Installation of the Hardness Tester ......................3 The Unpacking of the Tester ..........................3 The Installation of the Tester (Fig.2) ....................... 3 Operator panel and menu description ........................... 5 Information input .............................
- Page 3 Main Description DIGIROCK-RMC Rockwell Hardness Tester is equipped with the large screen touch screen display, the operation panel adopts the menu structure, which has good reliability, operability and intuitive. Here are the major functions: The selection of Rockwell Hardness Scales: HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、HRL、HRM、HRR、...
- Page 4 Scales Hardness range of the Standard blocks Max. tolerance of displaying value (20～75)HRA ±2HRA (＞75～88)HRA ±1.5HRA (20～45)HRB ±4HRB (＞45～80)HRB ±3HRB (＞80～100)HRB ±2HRB (20～70)HRC ±1.5HRC (40～70)HRD ±2HRD (58～69)HRE ±2..2HRE (＞70～94)HRE ±2HRE (＞90～100)HRE ±2HRE (60～90)HRF ±3HRF (＞90～100)HRF ±2HRF (30～50)HRG ±6HRG (＞50～75)HRG ±4.5HRG (＞75～94)HRG ±3HRG (80～100)HRH...
- Page 5 （Fig. 2） 1 The upper cover 2 The back cover 3 The dial 4 The fastening screw for the indenter 5 The indenter 6 The working table 7 Upper and down moving shaft 8 The rotating wheel 9 The load change hand wheel 10 The printer 11 RS-232 interface 12 The power socket 13 Regulating Screw The Installation of the Weight Group (Fig.3) During installation of weights, the instrument should be in the state without and test force.
- Page 6 Table 3 Graduated Value on the Scale Test Force（N） Force on the Weight (weight code) Load-Changing Wheel 588.4(60kg) Weight A 980.7(100kg) Weight A +Weight B 1471(150kg) 1471 Weight A +Weight B + Weight C Operator panel and menu description Connect the power cord and turn on the power switch (9), then plug in U disk, Operation interface open(fig.3). Note: When the power is turn on, the instrument will initialize, the instrument cannot be operated, after that the instrument can be used properly.
- Page 7 (Fig 5) 3.4 Choose hardness scale choose the one you need such as” HRC”(Fig.6),then touch screen back to main interface. Click Hardness type Fig.6 3.5 Conversion Click “Conversion” and choose the scale. If don’t need to modify, click Return. as shown in figure 7 Fig.7 Notice: Calibrate electric shock dislocation of the touchscreen.
- Page 8 Test pieces shall be stably placed on the test table, during testing cannot move the specimen, and to ensure that the test force is applied vertically on the specimen. According to the specimen shape and size to select the appropriate test Table. Irregularly shape Specimens can manufacture special fixture according to their own specific shapes to make hardness test shows correct value.
