Summary of Contents for FEZIBO FZ-SM03PS-2

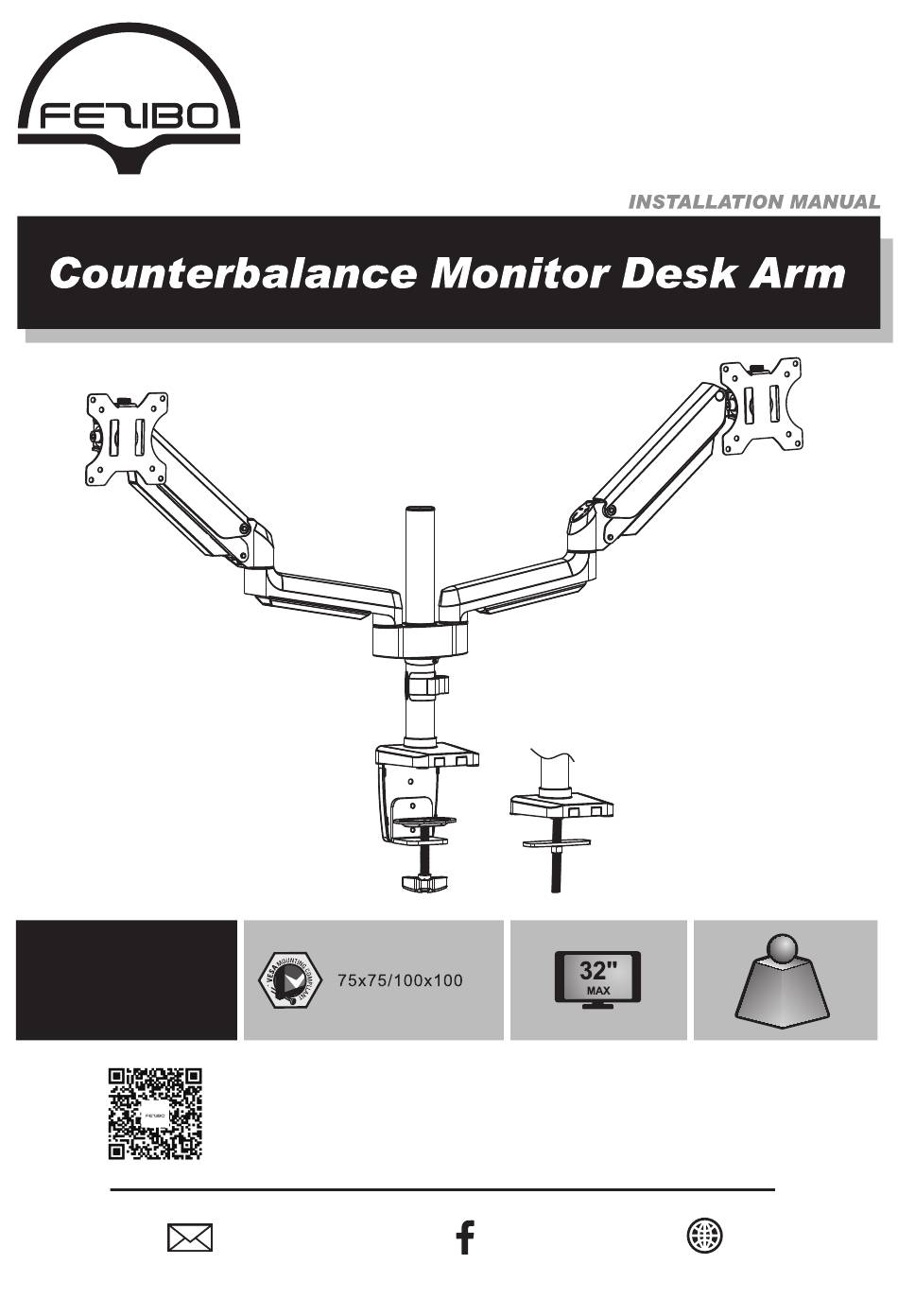

- Page 1 FZ-SM03PS-2 1.5~8kg (3.3~17.6lbs) RA TED Scan the QR code with your mobile device follow the link for know more about FEZIBO products. https://www.facebook.com/Fezibous/?ref=bookmarks Service@fezibo.com www.facebook.com/Fezibous www.fezibo.com...
- Page 2 Safety Hazard Symbols Review: These symbols alert users of a safety condition that demands attention. All users should be able to recognize and understand the significance of the following Safety Hazards if encountered on the product or within the documentation. Children who are not able to recognize and respond appropriately to Safety Alerts should not use this product without adult supervision! Symbol Signal Word...
-
Page 3: Features And Specifications
Features & Specifi cations 3.3 - 17.6 lbs (1.5 - 8kg) CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR! 360° 45° 360° 180° 45°... - Page 4 Phillips 4mm Allen 5mm Allen 6mm Allen Screw driver Wrench 3mm Allen Wrench Wrench Wrench (not included) Wrench (x2) Pole Base VESA Plate Clamp Base Clamp Cable Clip Long Screw Support (x2) (x2) (x3) Q (x3) Base Support Washer Bolts Bolts Bolts Security Nut...
- Page 5 STEP 1 Attach Pole to the Base Attach pole (B) onto base (C) of monitor stand with bolts (Q) using provided 4mm Allen wrench (R). STEP 2 Choose a mounting option OPTION A: Clamp Installation Install clamp base support (E) onto base of monitor stand with bolts (P) using provided 4mm Allen wrench (R).
- Page 6 Apply pads (J) to bottom of base to prevent table top from being scratched. Adjust the Mount to the Desktop Adjust the Mount to the Desktop Thickness 50-85mm Thickness 10-55mm Secure clamp (F) to upper two holes with Secure clamp (F) to lower two holes with bolts (O) using 4mm Allen wrench (R) for bolts (O) using 4mm Allen wrench (R) for desks with a thickness of 10-55mm.
- Page 7 Attach base support cover (G) to clamp base support (E). Tighten the clamp to the desktop using the plastic knob. STEP 2 (Continued) OPTION B: Grommet Base Installation Slide long screw (H) through the top of the grommet base support (I) and install on base of monitor stand with bolts using 4mm Allen wrench (R).
- Page 8 Position stand on desk with long screw through hole, and secure by using the support plate (K) and washer (M) on underside of the mounting surface, tighten the nut (L) with wrench (U). STEP 3 Assemble the Arm 1: Adjust the collar on the pole to the desired height and secure with provided 3mm Allen Wrench (V).
- Page 9 STEP 4 A ttach the monit or s t o the arm OPTION A: Flat Back Monit Attach the VESA plate (D) to back of monitor and secure with screws (M-A) or (M-C) with washers (M-E). Avoid excessive tightening screws damage the monitor. OPTION B: Cur ved Back Monit or Attach the VESA plate (D) to back of monitor and secure with screws (M-B) or (M-D) with washers (M-E) and washers (M-F).
-
Page 10: Step 5 Adjust The Tension
Slide the monitor onto the head of swivel arm, install the security nut (N). Make sure the security nut is installed before you rotate the monitor. STEP 5 Adjust the tension Adjust gas spring tension by turning Be sure to keep the arm in horizontal screw with 6mm Allen wrench (T) . -
Page 11: Step 6 Cable Management
STEP 6 Cable Management For both bottom and upper portion of the spring arm, just slide the cable cover up and away from the spring arm, do not need to take much effort to pull the ends of the cable cover away from the spring arm. - Page 12 STEP 7 Inser t the Allen Wr ench int o the Slot Adjust monitor to the desired position and insert Allen wrenches (R&T) into the slot ± 90° +45° ± 180° -45° ± 180° ± 135°...
- Page 13 If any parts are received damaged or defective, please contact us. We are happy to replace parts to ensure you have a fully functioning product. Service@fezibo.com www.facebook.com/Fezi bous www.fezibo.com For more FEZ I BO products, check out our website at: www.fezibo.com...
