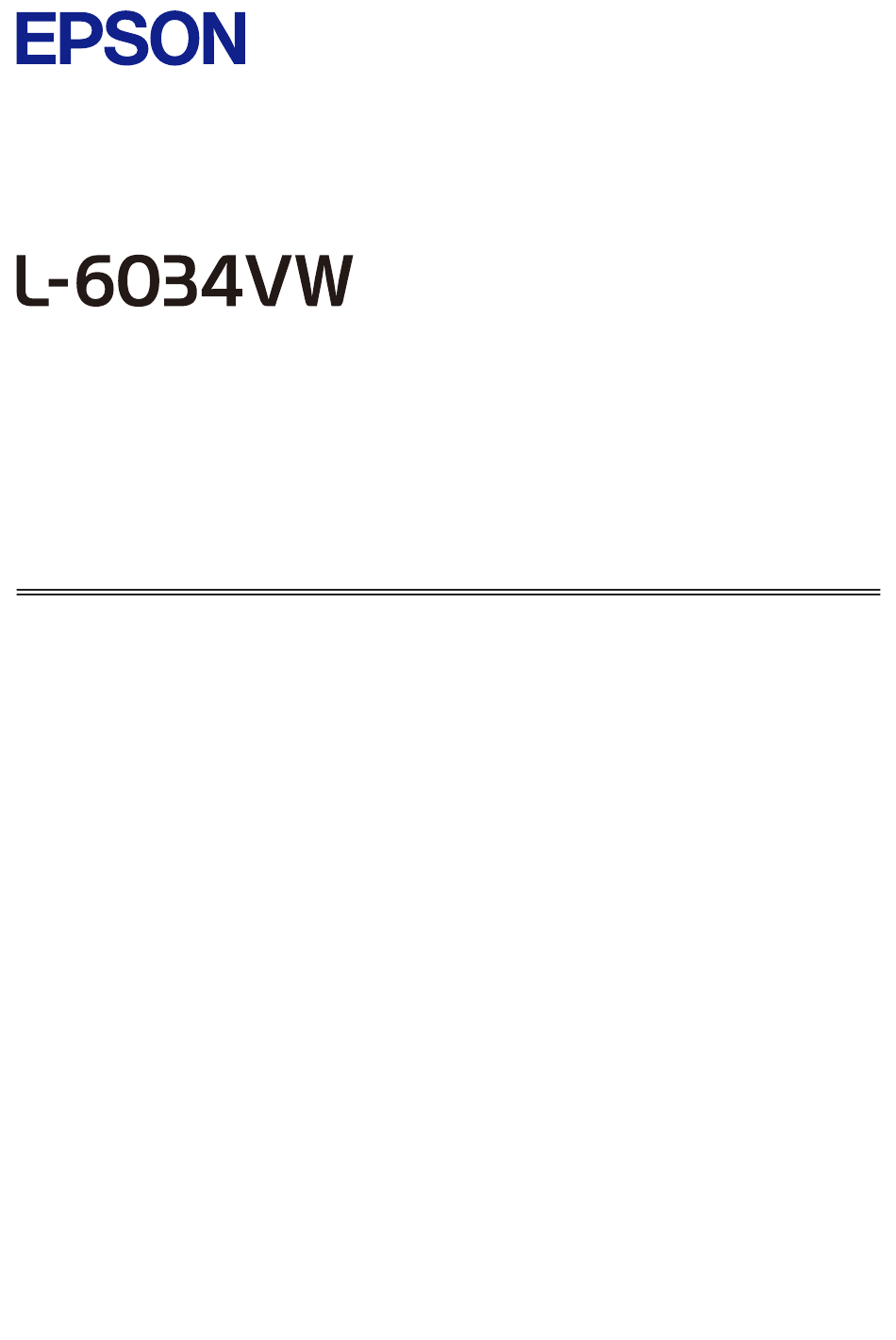

  • Page 1 Introducing New Features (System Version 2.9.0) CMP0429-00 EN Original instructions...
  • Page 2 (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s operating and maintenance instructions. Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as Original Epson Products or Epson Approved Products by Seiko Epson Corporation.
  • Page 3 ® Microsoft Windows 8.1 operating system ❏ Microsoft ® Windows ® 8 operating system ❏ Microsoft ® Windows ® 7 operating system Mac OS In this manual, “Mac OS” is used to refer to all versions. ©Seiko Epson Corporation 2023.
  • Page 4 L-6034VW Introducing New Features (System Version 2.9.0) Introducing New Features Introducing New Features This document introduces new features that have been added in system version 2.9.0. ❏ Improved the Head Stitch function in the Preset for Printing. When the standard density control for stitching is not effective enough at removing any dark or light stripes in the print results, the newly added adjustment method may help to remove these stripes.
  • Page 5 L-6034VW Introducing New Features (System Version 2.9.0) Introducing New Features Adjusting Using Head Stitch The method for adjusting head stitching differs depending on the Nozzle Overlap setting in the preset for printing. “When Nozzle Overlap is set to Standard” on page 5 “When Nozzle Overlap is set to Customized”...
  • Page 6 L-6034VW Introducing New Features (System Version 2.9.0) Introducing New Features Select the preset for printing and perform test printing. Select the Preset Management menu - For Printing tab, and select the Preset for Printing that was used for printing. Then, press Edit.
  • Page 7 L-6034VW Introducing New Features (System Version 2.9.0) Introducing New Features Select Set All Colors and use the slider to adjust the density. If the streaks are dark, move the slider in the - direction. If streaks are light, move the slider in the + direction.
  • Page 8 L-6034VW Introducing New Features (System Version 2.9.0) Introducing New Features Print the pattern for determining the color to be adjusted (a PDF file) with the preset for printing to be used in production printing, and then cut out the pattern.
  • Page 9 L-6034VW Introducing New Features (System Version 2.9.0) Introducing New Features Select Set Each Color and use the slider to adjust the density of the color of streaks. If the streaks are dark, move the slider in the - direction. If streaks are light, move the slider in the + direction.
  • Page 10 L-6034VW Introducing New Features (System Version 2.9.0) Introducing New Features When Nozzle Overlap is set to Customized The basic steps for this procedure are the same as when Nozzle Overlap is set to Standard. “When Nozzle Overlap is set to Standard” on page 5 From the Preset Management menu - For Printing tab, select the Preset for Printing you used for printing, and then press Edit.
  • Page 11 L-6034VW Introducing New Features (System Version 2.9.0) Introducing New Features In Nozzle Overlap, move the slider that is the same color as the streaks to adjust them. Move the slider toward [-] if the streaks are dark (a). Move the slider toward [+] if the streaks are white (b).
  • Page 12 L-6034VW Introducing New Features (System Version 2.9.0) Introducing New Features Repeat Density adjustments and test printing until the streaks are no longer noticeable. This completes this section. Note: ❏ If you replace the substrate after the adjustments are complete, adjust the Nozzle Overlap and Density in that order.

  • Page 13: Replacing Ink Cartridges

    L-6034VW Introducing New Features (System Version 2.9.0) Introducing New Features Replacing Ink Cartridges Added precautions for inserting and removing the ink cartridge tray. (Precaution regarding damaging the lever in step Prepare a new ink cartridge. Open the cartridge door. Grip the handle and pull the ink cartridge tray forward.
  • Page 14 L-6034VW Introducing New Features (System Version 2.9.0) Introducing New Features Remove the used ink cartridge. Important: If the ink cartridge is secured by a plate in the press you are using, loosen the screw and remove the plate before removing the ink cartridge.
  • Page 15 L-6034VW Introducing New Features (System Version 2.9.0) Introducing New Features Important: If the ink cartridge is secured by a plate in the press you are using, attach the plate and tighten the screw after installing the ink cartridge. Close the ink cartridge case cover.
  • Page 16 L-6034VW Introducing New Features (System Version 2.9.0) Introducing New Features Shake the ink cartridge by holding the handle at the front and sliding the entire ink cartridge tray in and out by approximately 10 cm at a time. Important: ❏ If you do not shake the ink cartridges, print quality may decline due to ink sedimentation.
  • Page 17 L-6034VW Introducing New Features (System Version 2.9.0) Introducing New Features With the surface of the ink cartridge case facing up, place it on the ink cartridge tray. Lift up the lever, and insert the drawer until it reaches the rear interior.
  • Page 18 L-6034VW Introducing New Features (System Version 2.9.0) Introducing New Features Pinning UV Light Strength (Preset Management) Added a restriction that jobs containing white layers cannot be printed when Pinning UV Light Strength is set to Off. Item Explanation Pinning UV Light Strength...
  • Page 19 L-6034VW Introducing New Features (System Version 2.9.0) Introducing New Features Group Settings (Job Management) Added print jobs with different Pinning UV Light Strength settings to the print jobs that cannot be grouped. Item Explanation Group Settings Batches multiple print jobs into one job (grouping).
  • Page 20 L-6034VW Introducing New Features (System Version 2.9.0) Introducing New Features Sending Daily Reports The shared folder on the press where daily reports are stored has been specified. Timing When the press is shutdown Save location The folder on the user's computer specified in Maintenance - Detailed Settings - Daily Report Output Folder Make sure that network sharing is enabled for the specified folder.
  • Page 21 L-6034VW Introducing New Features (System Version 2.9.0) Introducing New Features Exporting and Importing Presets Changed the text for the export destination (in Windows) of presets for printing. (Step 4) Press Preset Management from the menu on the left on the touch panel.
  • Page 22 L-6034VW Introducing New Features (System Version 2.9.0) Introducing New Features Exporting and Importing Print Information Changed the text for the export destination (in Windows) of print information. (Step 5) Press Preset Management from the menu on the left on the touch panel.
  • Page 23 L-6034VW Introducing New Features (System Version 2.9.0) Introducing New Features Mixing Ink Cartridges Corrected the number of times to shake the C (cyan), M (magenta), Y (yellow), and Bk (black) ink cartridges in the explanation for "Periodic Mixing Method" as shown below.
