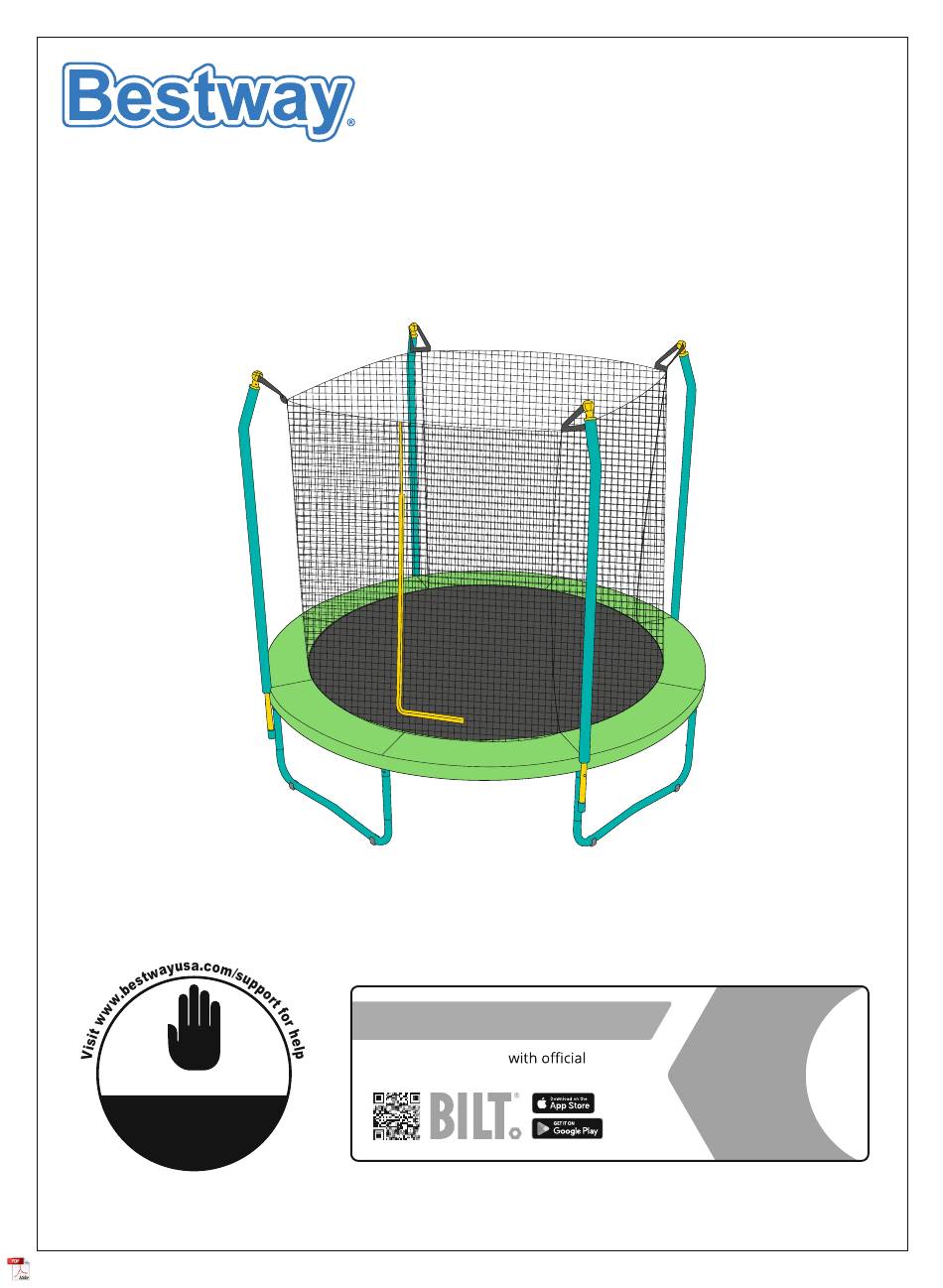

XTREME AIR
OWNER'S MANUAL
59102E
Please note, image is for illustration purposes only; product may differ in appearance.
Scan for easy 3D instructions
Tap. Zoom. Rotate
interactive instructions on the BILT app.
WE SUGGEST NOT TO RETURN
THE PRODUCT TO THE STORE
QUESTIONS? PROBLEMS?
MISSING PARTS?
For FAQ, Manuals, Videos Or
Spare Parts, Please Visit
bestwayusa.com/support

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XTREME AIR 59102E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bestway XTREME AIR 59102E

Summary of Contents for Bestway XTREME AIR 59102E

  • Page 1 ™ XTREME AIR OWNER’S MANUAL 59102E Please note, image is for illustration purposes only; product may differ in appearance. Scan for easy 3D instructions Tap. Zoom. Rotate interactive instructions on the BILT app. WE SUGGEST NOT TO RETURN THE PRODUCT TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals, Videos Or...

  • Page 2: Table Of Contents

    Drawings are for illustration purposes only. May not reflect actual product. Not to scale. • Bestway will not be responsible for any damage caused to the trampoline due to mishandling or failure to follow these instructions. USE INSTRUCTIONS...

  • Page 3: Safety Information

    SAFETY INFORMATION Read these materials prior to assembling and using this Trampoline. Carefully read, understand, and follow all information in this user manual before installing and using the trampoline. These warnings, instructions, and safety guidelines address some common risks of recreation, but they cannot cover all risks and dangers in all cases.
  • Page 4 SAFETY INFORMATION • For information concerning skill training, contact a certified trampoline instructor. • Bounce only when the surface of the bed is dry. Wind or air movement should be calm to gentle. The trampoline must not be used in gusty or severe winds. •...

  • Page 5: Parts & Tools Needed

    PARTS & TOOLS NEEDED Compare the parts in your box to the parts listed in this manual. Verify that the equipment components represent the model that you had intended to purchase. If any parts are damaged or missing at the time of purchase, visit our website bestwayusa.com/support.

  • Page 6: Setup Instructions

    May not reflect actual product. Not to scale. Assembly of this trampoline can be completed without additional tools. Bestway is not responsible for damage caused to the trampoline due to mishandling or failure to follow these instructions.
  • Page 7 INSTALLATION Connect the Base Rail (F) with the T-connector (E). The base rails have different-sized ends, a small one (P1) and a large one (P2). First, insert the large end (P2) into each T-connector and then the small end (P1). Make sure the spring slots are facing upward.
  • Page 8 INSTALLATION Connect the Vertical Leg (A) and the Vertical Leg (B) onto the Leg Base (C) to form the base structure. Make sure the spring-loading pins on the two vertical legs are inserted correctly. Insert the base structure completed in Step 3 into the T-Connector (E) from Step 1. Ensure that the spring-loading pins of the vertical legs are inserted into the T-connectors correctly.
  • Page 9 INSTALLATION Feel free to scan the QR Code for the installation clip of this section! Spring Assembly The Trampoline Mat (G) has metal rings with red markings, which should be the first ones using springs to connect to the frame of the upper structure. These rings with red markings should be on each side of the Vertical Leg A and match up with the posted upward-arrow red stickers.
  • Page 10 INSTALLATION The spring (I) has two ends with different shapes: the P3 end must be inserted into the rings of the Trampoline Mat (G), while the P4 end must be inserted into the frame of the upper structure. The assembly of the springs must be carried out using the QuickSpring™ Trampoline Tool (J): - Insert the P3 end of the spring into the metal ring of the mat.
  • Page 11 INSTALLATION Cross-install the rest of the springs.
  • Page 12 INSTALLATION Position the Frame Pad (H) over the springs and frame. Use the provided strings to secure the Frame Pad (H) to the metal rings of the trampoline mat (9.1&9.2) and the frame of the upper structure besides the vertical legs (9.3&9.4).
  • Page 13 INSTALLATION Enclosure Net Assembly Insert the Lower Frame Support with Foam (L) into the Upper Frame Support with Support Cap (K).
  • Page 14 INSTALLATION Attach the Support Cap of the Upper Frame Support (K) to the top of the enclosure netting. Make sure the caps' opening faces outward. Insert the Lower Frame Support with Foam (L) into the outward-facing metal cube on the Vertical leg A as shown in 12.1.
  • Page 15 INSTALLATION 12.2 12.3 12.4 12.5 12.6 12.7 12.8 12.9 The QuickSpring™ Trampoline Tool (J) is specially designed for multiple uses during the setup. You can use the wrench at the end of the handle to tighten the screws.

  • Page 16: Use Instructions

    INSTALLATION Complete the trampoline installation by fixing the Anchors (N) to the ground. Anchors are designed to secure the trampoline and reduce the risk of the trampoline moving when it's windy or in use. USE INSTRUCTIONS FUNDAMENTAL TRAMPOLINE SKILLS Trampolining is a fun and engaging activity that requires some basic knowledge of steps and bounces. To get started, we suggest you follow the lessons outlined here.
  • Page 17 USE INSTRUCTIONS Lesson One - Feet Drop 1. Bounce from a standing position, keep your head upright and your eyes focused on the frame pad. 2. Swing your arms forward and upward in a circular motion. 3. While in the air, bring your feet together and point your toes downward.
  • Page 18 USE INSTRUCTIONS Lesson Four - Seat Drop 1. Bounce from a standing position, and keep your eyes focused on the frame pad. 2. Land in a seated position with your legs parallel to the mat. 3. Put your hands on the mat beside your hips.

  • Page 19: Maintenance Instructions

    If any part becomes damaged or worn, please stop using the trampoline immediately until this part is replaced with authorized Bestway parts. If you need to move the trampoline, two or more people are required to lift the trampoline from the ground. Do not drag the trampoline.

  • Page 20: Warranty Terms

    Because Bestway cannot control the quality of Products sold by unauthorized sellers, this warranty applies only to Products that were purchased from Bestway or a Bestway authorized seller in the United States and Canada, unless otherwise prohibited by law. Bestway reserves the right to reject warranty claims for Products purchased from unauthorized sellers, including unauthorized Internet sites.
  • Page 21 Please write the problem you are having with your specific product, be as detailed as possible: Note: MAIL-IN OPTION ONLY. This Mailing information: Bestway (USA), Inc. warranty form must be filled out with a Attn: Warranty copy of your receipt/invoice and mailed 3435 S.
  • Page 24 Trademarks used in some countries under license from / Manufactured by Bestway Inflatables & Material Corp., No. 208 Jin Yuan Wu Road, Shanghai, 201812, China (Tel: +86 21 69135588). Represented in North America by Bestway (USA) Inc., 3435 S. McQueen Road, Chandler, AZ 85286, United States of America. www.bestwayusa.com...
