Summary of Contents for enphase Engage ET10-230-40

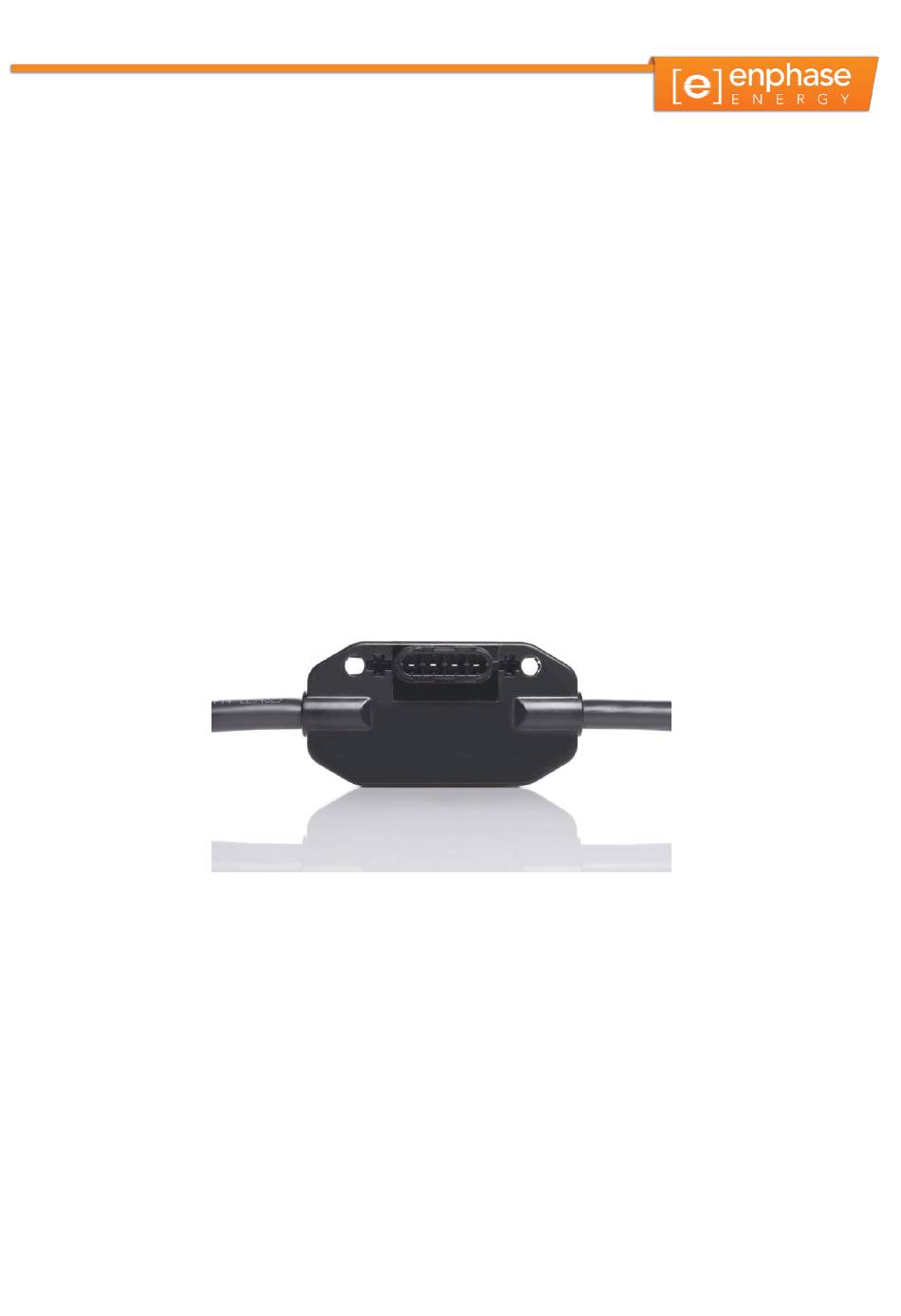

- Page 1 I NS TA L L A TI O N MA NU A L Enphase Engage™ Cable and Accessories 141-00016, Rev 03...
-
Page 2: Other Information
+44 (0) 1908 828 928 http://www.enphase.com/uk info@enphaseenergy.com Other Information Product information is subject to change without notice. All trademarks are recognized as the property of their respective owners. Copyright © 2012 Enphase Energy. All rights reserved. Copyright 2012 Enphase Energy 141-00016 Rev 03... -
Page 3: Table Of Contents
Step 1 – Measure AC at the Electricity Network Connection ............10 Step 2 – Install the AC Branch Circuit Junction Box ..............11 Step 3 – Position the Enphase Engage Cable ................12 Step 4 – Attach the Microinverters to the Mounting Rail ............... 12 Step 5 –... -
Page 4: Important Safety Information
Important Safety Information Read this First To reduce the risk of electrical shock, and to ensure the safe installation and operation of the Enphase System, the following safety indications appear throughout this document. Indicates a hazardous situation, which if not avoided, will result in death or serious injury. -
Page 5: The Enphase Engage Cable And Accessories
In some areas, the statistical frequency of lightning strikes near a PV installation is high enough that lightning protection must be installed as part of an Enphase system. In some areas, a surge protection device might be mandatory following a risk analysis, according to local regulation, BS 7671, or NF C 15- 100 (art. -
Page 6: Connector Spacing Options
The voltage types are either single-phase or three-phase. All Engage Cable connectors bear labels indicating the voltage designation. Single-phase (3G2.5) Engage Cable includes three conductors. Three-phase (5G2.5) Engage Cable includes five conductors. Because Enphase microinverters output onto one phase, the 5G2.5 Engage Cable balances the phases by rotating conductor use from one microinverter to the next as shown in the following diagram. -
Page 7: Mounting Rail Compatibility
1.7 m (67”) 230 Vac, Landscape over 100 ET17-230-BULK 3 conductors 1.7 m (67”) 400 Vac, Landscape 17.3 kg ET17-400-30 5 conductors 1.7 m (67”) 400 Vac, Landscape over 100 ET17-400-BULK 5 conductors Copyright 2012 Enphase Energy 141-00016 Rev 03... -
Page 8: Planning For Engage Cable Lengths And Type
Engage Cable and Accessories Installation Planning for Engage Cable Lengths and Type The Enphase Engage Cable and Accessories are flexible enough to adapt to almost any solar design. To determine the length and type that you need, take into account the following considerations: ... -
Page 9: Installing Enphase Engage Cable And Accessories
Engage Cable and Accessories Installation Installing Enphase Engage Cable and Accessories Follow the instructions in this section to install the Enphase Engage Cable and Accessories. For information on microinverter installation, refer to the M215 Installation and Operation Manual at http://www.enphase.com/support/downloads. -
Page 10: Installation Procedure
Engage Cable and Accessories Installation Installation Procedure Installing the Enphase Engage Cable and Accessories involves several key steps: 1. Measure AC at the Electricity Network Connection 2. Install the AC Branch Circuit Junction Box 3. Position the Enphase Engage Cable 4. -
Page 11: Step 2 - Install The Ac Branch Circuit Junction Box
Engage Cable to minimize this potential. NOTE: Do NOT exceed the maximum number of microinverters in an AC branch circuit as listed in the Enphase Microinverter Installation manual, and protect each microinverter AC branch circuit with a 20 A maximum breaker (or in accordance with local installation code). -
Page 12: Step 3 - Position The Enphase Engage Cable
Module widths vary by manufacturer. On the Engage Cable, connectors are spaced at intervals to allow for the widest PV modules compatible with Enphase Microinverters. If narrower modules are used, it may be necessary to account for excess cable by adding a loop of cable at suitable intervals. -
Page 13: Step 5 - Dress The Engage Cable
These holes are to be used only for disconnecting. Keep these release holes clear and accessible. a. Attach the Enphase Cable to the rail using tie wraps. b. Dress any excess in loops so that Engage Cable does not contact the roof. -
Page 14: Step 5 - Dress The Engage Cable (Continued)
NOTE: If you need to remove a sealing cap, you must use the Enphase disconnect tool. See “Disconnecting a Microinverter from the Engage Cable” on page 19 for more information on disconnection. -
Page 15: Step 6 - Terminate The Unused End Of The Engage Cable
Slide the hex nut onto the Engage Cable. e. Insert the Engage Cable end all the way into the wire organizer (up to the stop). Copyright 2012 Enphase Energy 141-00016 Rev 03... - Page 16 Insert a #2 Philips screwdriver into the slot on the cap to hold it in place. (Alternatively you can hold the cap firmly in place using the Enphase disconnect tool). k. Use a 22mm (7/8 inch) spanner and tighten the nut until the latching mechanism has been screwed all the way to the base.
-
Page 17: Replacing Or Removing The Terminator
Risk of Electrical Shock. Be aware that installation of this equipment includes risk of electric shock. Do not install the AC junction box without first removing AC power from the Enphase System. Never open, remove or replace the terminator while it is connected to the power supply. -
Page 18: Step 8 - Verification And Commissioning
Ensure that all unused connectors are capped. d. Ensure that all connectors are properly seated. e. Install the microinverters and commission the system as instructed by the Enphase Microinverter installation and operation manual and in accordance with all local and national requirements. -
Page 19: Disconnecting A Microinverter From The Engage Cable
If you do not plan to replace the microinverter immediately, you must cover any unused connector with a sealing cap. Listen for two clicks as the cap engages. Sealing caps may not be reused. Copyright 2012 Enphase Energy 141-00016 Rev 03... -
Page 20: Technical Data
11.8 cm x 6.0 cm x 3.2 cm (4.64” x 2.36” x 1.25”) Terminator dimensions 3.6 cm diameter x 5.1 cm tall (1.4” x 2”) Engage Cable weight Approximate: ~0.5 kg (1 lb) per drop Copyright 2012 Enphase Energy 141-00016 Rev 03... -
Page 21: Sample Wiring Diagram - M215, 230 Vac, Single-Phase
Engage Cable and Accessories Installation Sample Wiring Diagram – M215, 230 Vac, Single-phase Copyright 2012 Enphase Energy 141-00016 Rev 03... -
Page 22: Sample Wiring Diagram - M215, 400 Vac, Three-Phase
Engage Cable and Accessories Installation Sample Wiring Diagram – M215, 400 Vac, Three-phase Copyright 2012 Enphase Energy 141-00016 Rev 03... -
Page 23: Informazioni Di Contatto
Enphase Energy Srl Via Volta, 98 20832 Desio (MB) - Italia +39 0362 308854 +39 0362 331718 http://www.enphase.com/it informazioni@enphaseenergy.com support.italy@enphaseenergy.com Contact Enphase Energy UK LTD Fairbourne Drive, Atterbury Milton Keynes, MK10 9RG United Kingdom Phone: +44 (0) 1908 828 928 http://www.enphase.com/uk info@enphaseenergy.com...
