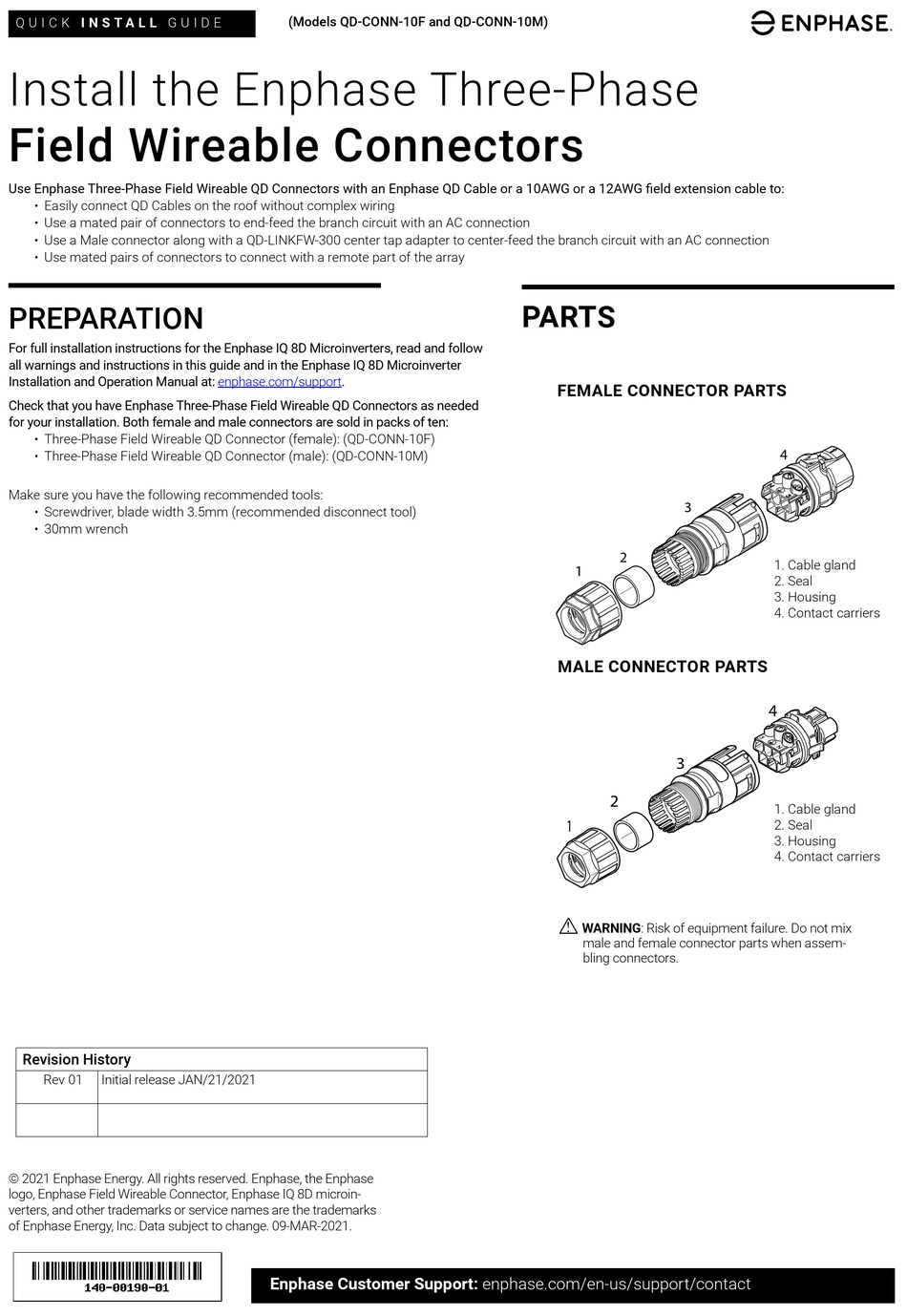

Q U I C K I N S T A L L G U I D E
Install the Enphase Three-Phase
Field Wireable Connectors
Use Enphase Three-Phase Field Wireable QD Connectors with an Enphase QD Cable or a 10AWG or a 12AWG field extension cable to:
• Easily connect QD Cables on the roof without complex wiring
• Use a mated pair of connectors to end-feed the branch circuit with an AC connection
• Use a Male connector along with a QD-LINKFW-300 center tap adapter to center-feed the branch circuit with an AC connection
• Use mated pairs of connectors to connect with a remote part of the array
PREPARATION
For full installation instructions for the Enphase IQ 8D Microinverters, read and follow
all warnings and instructions in this guide and in the Enphase IQ 8D Microinverter
Installation and Operation Manual at: enphase.com/support.
Check that you have Enphase Three-Phase Field Wireable QD Connectors as needed
for your installation. Both female and male connectors are sold in packs of ten:
• Three-Phase Field Wireable QD Connector (female): (QD-CONN-10F)
• Three-Phase Field Wireable QD Connector (male): (QD-CONN-10M)
Make sure you have the following recommended tools:
• Screwdriver, blade width 3.5mm (recommended disconnect tool)
• 30mm wrench
Revision History
Rev 01 Initial release JAN/21/2021
© 2021 Enphase Energy. All rights reserved. Enphase, the Enphase
logo, Enphase Field Wireable Connector, Enphase IQ 8D microin-
verters, and other trademarks or service names are the trademarks
of Enphase Energy, Inc. Data subject to change. 09-MAR-2021.
(Models QD-CONN-10F and QD-CONN-10M)
Enphase Customer Support: enphase.com/en-us/support/contact
PARTS
FEMALE CONNECTOR PARTS
3
2
1
MALE CONNECTOR PARTS
3
2
1
*
WARNING: Risk of equipment failure. Do not mix
male and female connector parts when assem-
bling connectors.
4
1. Cable gland
2. Seal
3. Housing
4. Contact carriers
4
1. Cable gland
2. Seal
3. Housing
4. Contact carriers
