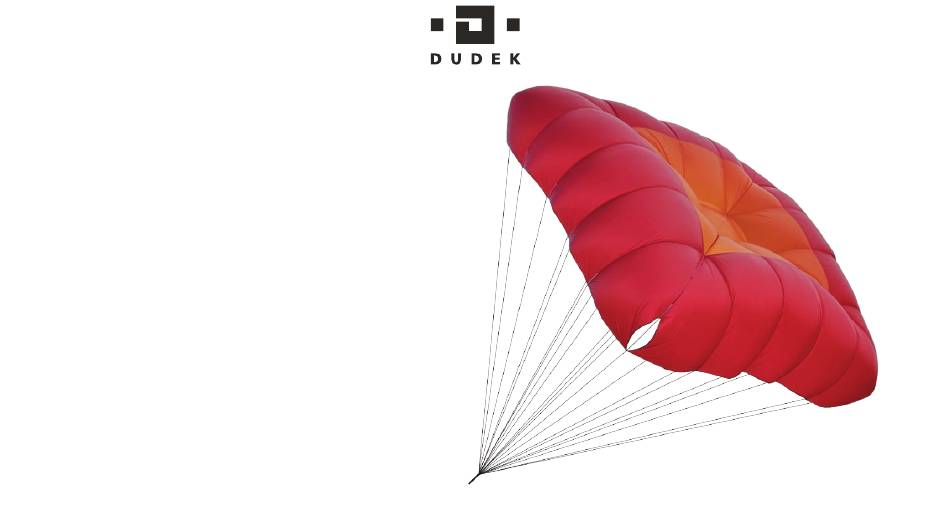

  • Page 1 User manual Nano SQ v18.10.2024...

  • Page 2: Table Of Contents

    NANO SQ \ USER’S MANUAL Contents Congratulations! Operating limits Guarantee Description Connect the reserve parachute to the harness Repairs Set cointains Compatibility test Environmental care Technical data Pre-flight check and releasing the system Join our community Materials Packing instruction Manufacturer data...

  • Page 3: Congratulations

    Panels of the Nano SQ are cut by a CNC individual notice. and prevent accidental openings. The cutter to ensure pre-assembly precision handle is also reinforced for an easy and the right shape of panels. The canopy grip, even when wearing gloves.

  • Page 4: Set Cointains

    NANO SQ \ USER’S MANUAL Set cointains • Parachute inside the inner container • Parachute card • USB drive with this manual.

  • Page 5: Technical Data

    NANO SQ \ USER’S MANUAL Technical data Materials Nano SQ Model Size: Nano SQ Canopy Surface flat [m2] Dominico R1010-33C / R2020-44 AC Edelrid Pax 160 / Restrix 150 Min. payload* [kg] Lines Max payload* [kg] Liros Dyneema line D-Pro 5 mm...

  • Page 6: Construction

    NANO SQ \ USER’S MANUAL Construction Canopy Lines Centre lines Main risers Packing loops (on the top side)

  • Page 7: Operating Limits

    NANO SQ \ USER’S MANUAL Operating limits Connect the reserve parachute to the harness Nano SQ has been specially developed requirement, to more often air out and To connect the reserve parachute to the It is important to ensure that the...

  • Page 8: Compatibility Test

    NANO SQ \ USER’S MANUAL Compatibility test Pre-flight check and releasing the system Nano SQ rescue system is appropriate careful with back protector Before each flight, check all straps The force of the throw will separate integrated reserve parachute manipulation in your harness when the...

  • Page 9: Packing Instruction

    NANO SQ \ USER’S MANUAL Packing instruction The following manual is aimed at pilots the lines, the suspension points, who are competent in folding modern the main riser and the screw square reserve parachutes. shackle. manual itself cannot serve as a...
  • Page 10 NANO SQ \ USER’S MANUAL...
  • Page 11 NANO SQ \ USER’S MANUAL Find 4 central loops and connect them by an aid line.
  • Page 12 NANO SQ \ USER’S MANUAL Find 20 top loops and connect them by second aid line.
  • Page 13 NANO SQ \ USER’S MANUAL One by one 10 panels...
  • Page 14 NANO SQ \ USER’S MANUAL The first line is sewn with blue threads...
  • Page 15 NANO SQ \ USER’S MANUAL One by one 10 panels...
  • Page 16 NANO SQ \ USER’S MANUAL...
  • Page 17 NANO SQ \ USER’S MANUAL Find center of the canopy. Put it inside of the center.
  • Page 18 NANO SQ \ USER’S MANUAL...
  • Page 19 NANO SQ \ USER’S MANUAL Panels 3 and 8 on each side should be placed from the inside by hand.
  • Page 20 NANO SQ \ USER’S MANUAL Lines checking, 4 groups.
  • Page 21 NANO SQ \ USER’S MANUAL...
  • Page 22 NANO SQ \ USER’S MANUAL...
  • Page 23 NANO SQ \ USER’S MANUAL Double fold: Remove aid lines.
  • Page 24 NANO SQ \ USER’S MANUAL...
  • Page 25 NANO SQ \ USER’S MANUAL 3 x 3 Free length around 50 - 60 cm.
  • Page 26 NANO SQ \ USER’S MANUAL Twist the rubber cord for a correct lines retention.

  • Page 27: Maintenance

    NANO SQ \ USER’S MANUAL Maintenance Guarantee The canopy is to be stored in a clean system. The manufacturer must inspect The reserves are guaranteed for 2 area. Avoid prolonged contaminated canopies. The container years against any production fault since exposure to direct sunlight.

  • Page 28: Repairs

    Repairs All repairs must be carried by the manufacturer. Any unqualified repair might lead to a system failure. Your Nano SQ reserve parachute consists of many high-quality, long-life components. When replacing parts (lines, risers, fabric panels, etc.), only original parts should be used.

  • Page 29: Environmental Care

    Dudek Paragliders will do that some simple rules. Make sure you are for you. Just send your product to the not harming nature wherever you fly.

  • Page 30: Join Our Community

    NANO SQ \ USER’S MANUAL Join our community By purchasing our gear you've become Do not forget to label everything you an important part of Dudek Paragliders publish social media with family! #dudekparagliders! Share your experiences with the entire community and stay current with new offers by joining our fanpages.

  • Page 31: Manufacturer Data

    Dudek Paragliders - POWAIR Sp. z o.o. Centralna 2U 86-031 Osielsko, Poland tel. (+48) 52 324 17 40 www.dudek.eu info@dudek.eu Designed in Europe Made in Europe...
