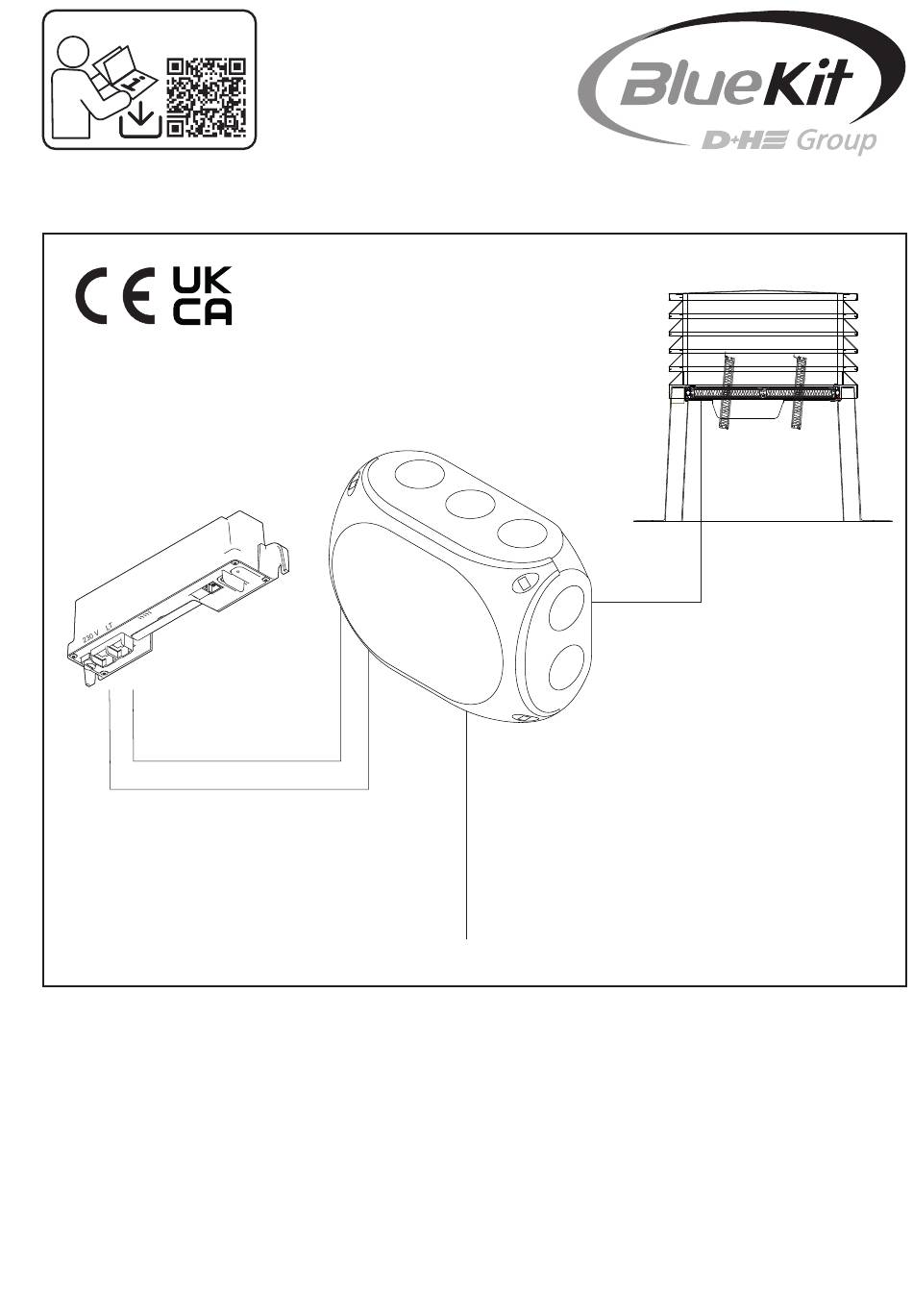

  • Page 1 Bluekit Downloads en Original instructions 99.829.59 1.0/02/25...

  • Page 2: Safety Notes

    - Only for inside mounting reference. - Not for use in locations where children may be present - Just use unchanged original D+H parts Caution Falling Hazard! Intended use - Always secure ventilation elements properly against falling down the shaft.

  • Page 3: Connection Diagram

    System components description 1. FM-L • Connection module for transmitting a ventilation signal (OPEN/CLOSED) to control a motor. • Cable junction box, external lugs for wall installation, cover holder, screw caps • Cable length 2.5 m (connection to LST-CO2-V3) 24 V power supply unit (integrated in the FM-L) •...
  • Page 4 Mounting – Lift Status Transmitter LST-CO -V3 The LST-CO2-V3 is used to monitor the CO2 content, air humidity and air temperature in the lift shaft. The resulting ventilation requirement is reported to the motor via the connection module. Installation is on the shaft wall near the FM-L.
  • Page 5 DIP switch settings – LST-CO -V3 DIP switch S1 livery S1.1 Monitoring the emergency call button input S1.2 Configuration of the connected central processing unit S1.3 Temperature monitoring Factory settings S1.4 Air humidity monitoring S1.5 Monitoring the CO content S1.6 Threshold value for temperature monitoring ON = 28 °C, OFF = 32 °C S1.7...
  • Page 6 Mounting - Weather protection HVC, HVL, ALAS If there is no weather protection in front of the ventilation opening on site, appropriate weather protection must be correctly attached to the outer shell of the building. The ALAS grille can be guided through the wall opening from the inside and inserted into the opening. Then pull the ALAS grille up to the outer wall and fasten it to the wall with mounting brackets.
  • Page 7 Mounting - Ventilation flap JK 180, JK 190, NK-SL HVC / HVL HVC / HVL min. 20 cm JK 180 JK 180 Standard mounting JK-180: The ventilation flap is inserted into the ceiling or wall from the inside. If the existing opening is too small, the ventilation flap with motor can also be installed facing into the shaft.

  • Page 8: Maintenance And Cleaning
