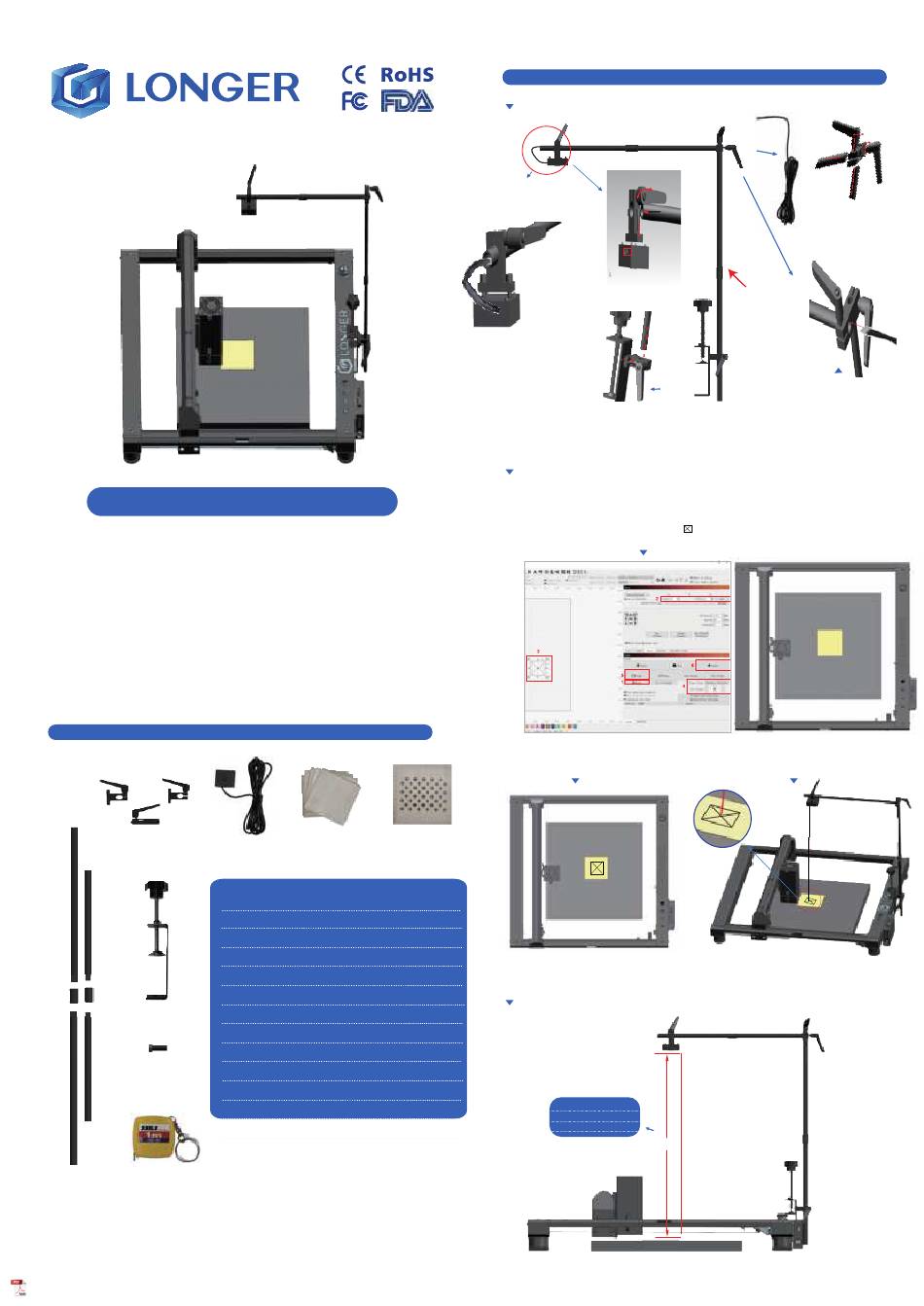

LONGER RAY5 Series Instructions

Camera Instructions
LONGER LASER ENGRAVER CAMERA INSTRUCTIONS
Thank you for choosing our products.
Please read this manual carefully before use.
Please reference more details on digital manual about the operation of
Laser Engraver and installation of LaserGRBL or LightBurn.
Please join our Facebook Group:
LONGER Laser Engraver Official Group
Email: s upport@longer.n et
If you have any question, please feel free to contact us as above.
*Copyright © Shenzhen Longer 3D Technology Co.,Ltd. All Rights Reserved
PA C K I N G L I S T
Connector
Base
M5*10 Screw x4
Bracket Ruler
Camera Basswood
Focusing piece
Brand:
Longer
Pixel: 8MP
3264*2448
Resolution:
1/3"
Sensor:
Pixel Size: 1.4x1.4um
FOV: 78°
Photuography range: 700*520mm
Camera size: 38*38*10mm
Lightburn
Software:
Driver-free for Windows/Mac systems
Driver:
Focus: 3.6mm
Aperture:
F2.0
INSTRUCTIONS STEPS
1
Connect the following components according to the steps shown in the figure.
6 3
2
Note: Pay attention to the direction
of the interface when installing.
4
2
Determine the center position of the camera.
①Connect the engraving machine, and click Home to complete, change the X position to 225mm in the
mobile option, and change the Y position to 220mm (the engraving format is 450*440mm, X is changed
to 225mm, Y is changed to 220mm; if the engraving format is 400*400mm, X is changed to 200mm, Y is
changed to 200mm), click go. After completion, put the 100mm*100mm basswood flat on the center of
the working area and draw a 50*50 file like"
Start Form, and select the center point as the Job Origin click Frame to adjust the position of the
basswood.
2
3
5
1
②Modify the engraving parameters and click
to start engraving. After the engraving is
completed, it is shown in the figure below.
3
Make the distance between the working plane and the camera lens 545 mm，
make sure the camera sees the entire work area.
Height Photography range
545mm 710*520mm
445mm 590*420mm
2
Note: The camera is mounted on
the short pole.
1
First, rotate the pipe
length to length to
5
short link
Pass the cable of the camera through
the hole of the bracket to connect the
camera.
" in LightBurn software. Select the Current Position as the
6
4
③Align the center of the camera lens with the
intersection point on the basswood board as
vertically as possible.
Height
