ROADMASTER, Inc.
What You'll Need
Sockets and Wrench
General Hand tools
8
Thank you for choosing the Guardian XL!
Before you begin installation, we recom-
mend laying out all the kit components in
order. This simple step not only helps you
visualize how each piece works together
but also ensures you have everything you
need for a seamless setup. If you discover
any missing components, don't hesitate to
reach out to us so we can assist you right
away!
Need Help? Call Toll-Free
1-800-669-9690
85-6583-00
Guardian
™
MANUAL AND INSTRUCTIONS
6110 NE 127th Ave.
The Guardian is designed to help reduce the damage to the vehicle while
being towed. Although the Guardian will significantly reduce the amount of
vehicle damage, the Guardian will not eliminate all damage. Correspondingly,
ROADMASTER expressly disallows any and all claims related to rock chips,
dings, scratches or any other damage incurred to the towed vehicle.
15
7
12
14
3

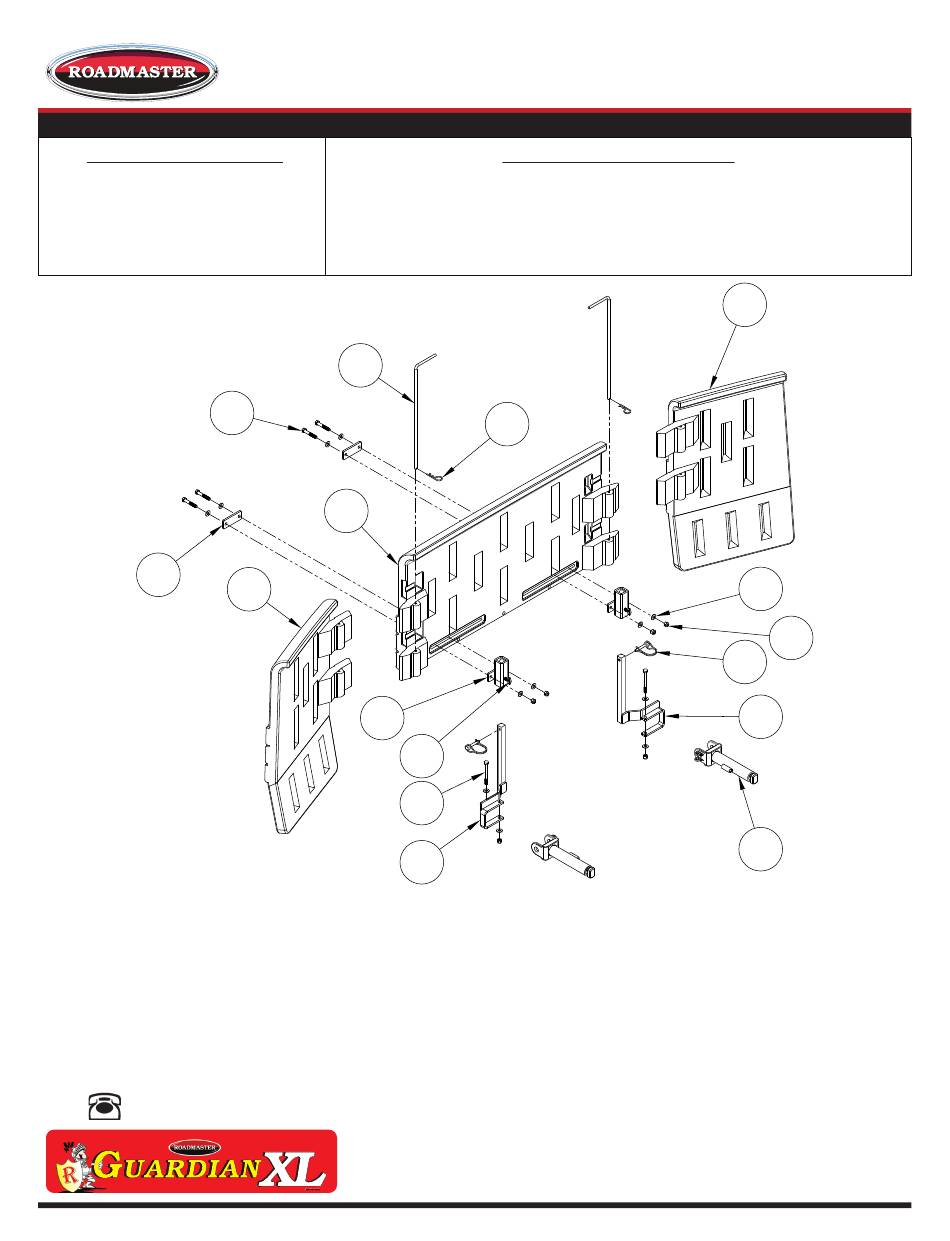

ITEM ... QTY. .. DESCRIPTION ................................................................ PART
1 .......... 1 ........ POST CLAMP - DS ..................................................... C003828
2 .......... 1 ........ POST CLAMP - PS ..................................................... C003829
3 .......... 2 ........ POST RECEIVER ....................................................... C003830
4 .......... 6 ........ 3/8" LOCK NUT........................................................ 350255-00
5 .......... 12 ...... 3/8" SAE FLAT WASHER ........................................ 350304-50
6 .......... 2 ........ 3/8" X 3 1/2" BOLT ................................................... 350065-00
7 .......... 4 ........ 3/8-16 x 2 1/4" BOLT ................................................ 350060-00
8 .......... 2 ........ MOUNTING PLATE .................................................... A006745
9 .......... 2 ........ BASEPLATE ARM - NOT INCLUDED
10 ........ 2 ........ THUMB SCREW ...................................................... 357246-00
11 ........ 2 ........ 5/16" SAFETY PIN ................................................... 356997-00
12 ........ 1 ........ GUARDIAN CENTER PANEL
13 ........ 1 ........ GUARDIAN PS PANEL ............................................... A006050
14 ........ 1 ........ GUARDIAN DS PANEL .............................................. A006051
15 ........ 2 ........ GUARDIAN ROD ........................................................ B001721
16 ........ 2 ........ 1/8" R-CLIP .............................................................. 357030-00
XL
Vancouver, WA 98682
IMPORTANT NOTICE!
16
10
6
1
360-896-0407
www.RoadmasterInc.com
13
5
11
2
9
#4100
03/25
RS
4
Fig. A
C002383B
A006049
pg 1
