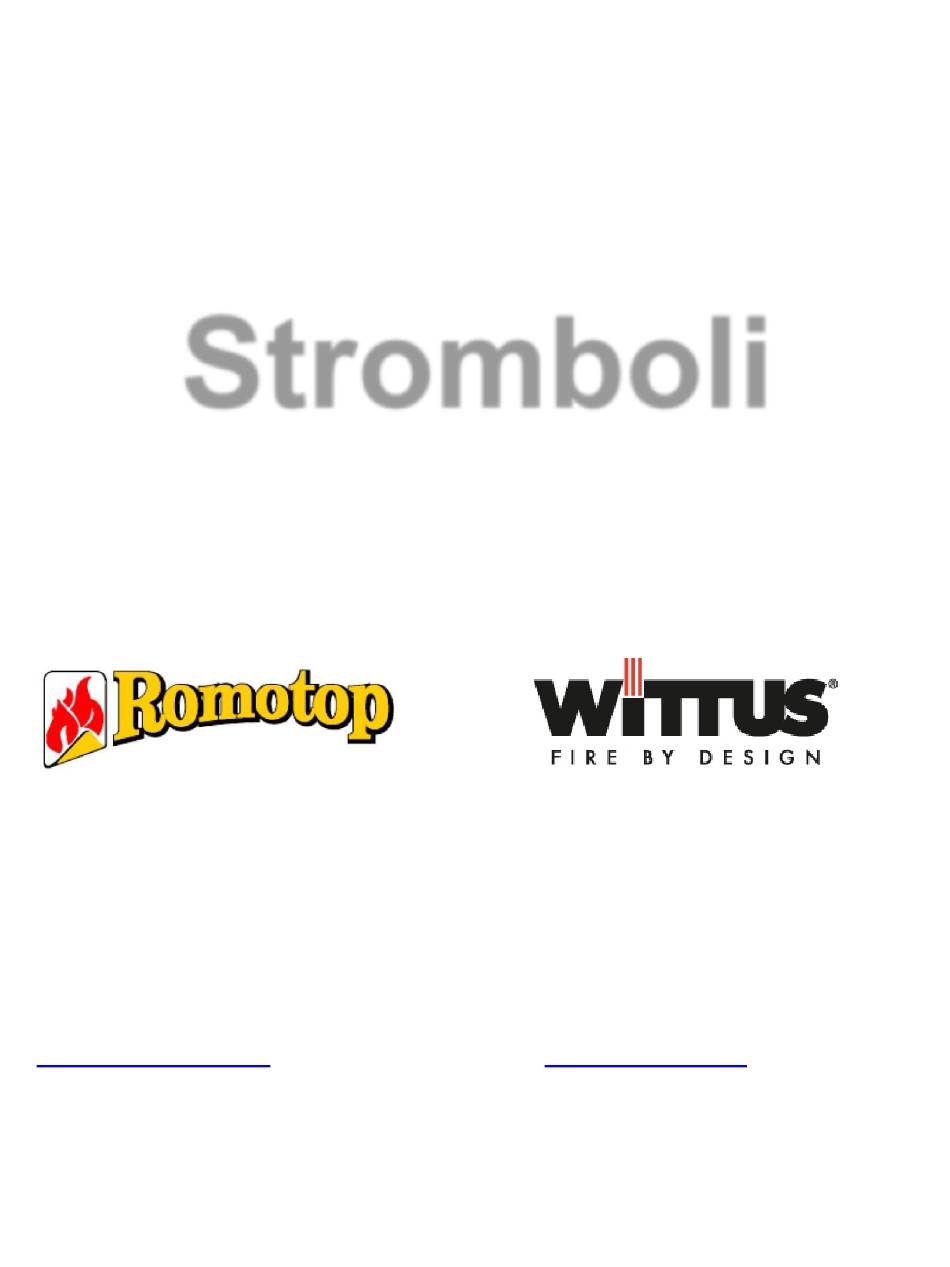

Installation / Operator /
Maintenance Manual for
Stromboli
Manufactured by:
ROMOTOP spol. s r. o.
Komenského 325
742 01 Suchdol nad Odrou
Czech Republic
T: +420 556 770 911
F: +420 556 770 920
www.romotop.com
Imported by:
Wittus Inc.
PO Box 120
Pound Ridge, NY 10576
USA
T: 914 764 5679
F: 914 764 0465
www.wittus.com
Page 1
Advertisement
Table of Contents
Related Manuals for Romotop Stromboli 01
Summary of Contents for Romotop Stromboli 01
- Page 1 Installation / Operator / Maintenance Manual for Stromboli Manufactured by: Imported by: ROMOTOP spol. s r. o. Wittus Inc. Komenského 325 PO Box 120 742 01 Suchdol nad Odrou Pound Ridge, NY 10576 Czech Republic T: +420 556 770 911...
- Page 2 Installation / Operator / Maintenance Manual STROMBOLI FIREPLACE Model# 01 – Soapstone Model# 02 – Ceramic Tile Model# 03 – Steel Model# 04 – Sandstone Page 2...
- Page 3 IMPORTANT! CAUTION: Please read this entire manual before you install and use your new room heater. For your safety, follow these installation, operation and maintenance instructions exactly, without deviation. Failure to follow these instructions may result in property damage, bodily injury, or even death. If this appliance is not properly installed, a house fire may result.
-
Page 4: Table Of Contents
TABLE OF CONTENTS 1. Planning Your Installation 1.1 Questions to Ask Local Building Officials 1.2 Smoke Detectors 1.3 Selecting a Location 1.4 Clearance from Combustible Walls 1.5 Floor Protection 1.6 Ventilation 1.7 Fresh Air 2. Installation 2.1 Installing Marble Accents 2.2 Baffle Bricks 2.3 Types of Chimneys 2.4 Acceptable Connector Pipe for Installations... -
Page 5: Troubleshooting
9. Troubleshooting 9.1 Poor Draft Conditions 9.2 Fireplace does not give off enough heat 9.3 Fireplace gives off too much heat 10. Important 11. Fire Safety (Please read, very important!!!) 12. Warranty 13. Replacement Parts List 13.1 Replacement Tiles 13.2 Replacement Glass and Door Handle 13.3 Replacement Baffle Bricks Testing/Listing Appliance Type: Solid Fuel Room Heater... -
Page 6: Planning Your Installation
1. Planning Your Installation 1.1 Questions to Ask Local Building Officials A correct installation is critical and imperative for reducing fire hazards and perilous conditions that can arise when wood burning appliances are improperly installed. The installer must follow all of the manufacturer’s instructions. -
Page 7: Clearance From Combustible Walls
1.4 Clearance from Combustible Walls WARNING: IT IS VERY IMPORTANT THAT YOU OBSERVE THE MINIMUM CLEARANCES. There are listed clearances for your fireplace which were determined in a Laboratory test, using various “classes” of stove pipe or chimney. Minimums are first established for the fireplace itself and then increased, based on how much heat is transferred by each class of pipe. -
Page 8: Floor Protection
1.5 Floor Protection This appliance requires a non-combustible floor protection to protect against burning embers. If the floor is to be stone, tile, brick, etc., it must be mortared or grouted to form a continuous, non- combustible surface. If a chimney connector extends horizontally over the floor, protection must cover the floor under the connector and at least 2”... -
Page 9: Ventilation
1.6 Ventilation (Residential homes which do not require an outside air inlet). Ventilation is essential when using a solid fuel fireplace. The combustion process uses oxygen from inside the home, and it may be necessary to open a window or install a vent to provide combustion air in a house that is well insulated. -
Page 10: Installation
2. Installation 2.1 Installing Marble Accents Marble is a natural product, and, therefore, each piece will have its own unique character. Marble can be scratched so care should be taken to avoid putting heavy or rough objects (trivet/steamers) on the surface. -
Page 11: Types Of Chimneys
2.3 Types of Chimneys The chimney is a vital part of your fireplace installation. A properly built masonry chimney or a properly installed factory built chimney will assure a consistent draft under a variety of weather conditions (a smoking fireplace is usually caused by a chimney problem). The fireplace flue size is 6 inches (152 mm) diameter, which is approximately 28 square inches (711 square mm) minimum. -
Page 12: Chimney Height Requirements
Vapor Barrier at Chimney Penetration Install all venting components per the vent manufacturer’s installation instructions. Ensure that there is an effective vapor barrier at the location where the chimney penetrates the exterior of the structure. This can be accomplished by applying a non-hardening, waterproof sealant to the following components: •... - Page 13 Page 13...
-
Page 14: Combustible Wall Chimney Connector Pass-Throughs
2.8 Combustible Wall Chimney Connector Pass-Throughs Method A. 12” (305 mm) Clearance to Combustible Wall Member: Using a minimum thickness of 3.5” (90 mm) brick and a 5/8” (16 mm) minimum wall thickness clay liner, construct a wall pass- through. The clay liner must conform to ASTM C315 (Standard Specification for Clay Fire Linings) or its equivalent. -
Page 15: User's Guide
3.1 Hand Protection Please use protective gloves when opening the door!!! You can then add wood while the handle is hot. 3.2 Technical Data and Dimensions Description STROMBOLI 01 STROMBOLI 02 STROMBOLI 03 STROMBOLI 04 Dimensions 1073 x 666 x 475... - Page 16 Average Wood Use – Single Load 3-4 Chimney Data pieces of wood, 15-20% moisture Draft Average Flue Gas Flue Gas Heat (Pa) (cm2) (g/s) (0C) (kg/h) Note: We reserve the right to make modifications in the interest of technical advances! Page 16...
-
Page 17: Delivery
3.3 Delivery Damage can occur to the product during transport, even though the packaging appears to be undamaged, upon visual inspection. Therefore, it is important that you inspect the fireplace itself very carefully and report all damages within one week. In the event of obvious visual damage to the product or its packaging, make a note of this on the shipping papers before accepting the merchandise. -
Page 18: Fresh Air Supply
have a sufficient supply of fresh air. • Never remove hot ashes. Store the ashes in a container that is fire-proof and not combustible. • Always use the protective glove when operating the appliance. Do not touch the fireplace with your bare hand when it is in operation. •... -
Page 19: Operating Your Fireplace
6.1 Regulating the Heat In the Stromboli 01, 02, 03, and 04 there is also a primary air control knob below the door on the left side (labelled “P”). Pull it out to open or push it in to close. -
Page 20: Door
6.2 Door Caution: Use protective glove!!! When adding wood, pull out the door handle. The door opens from the right side. After you have finished, remember to securely lock the door again by pressing it back in. Warning: Be careful in using the door. Never operate the fireplace with broken glass!!! A torsion spring is used to automatically close this door. -
Page 21: Starting A Fire
7.2 Starting a Fire It is important to engage the wood in a trouble-free combustion process as quickly and safely as possible. In order to accomplish this, the wood should be layered in the fireplace as follows: Never use alcohol, gasoline or similar substances, including glossy paper, to light the fire. It does not burn properly, and its printed colors produce highly toxic elements in the fumes. -
Page 22: Burning During Transition Periods
7.7 Burning during Transition Periods During transition periods (Spring / Fall), outside temperatures of over 16°C can cause a smoke buildup in the fireplace. If sufficient draft cannot be created with a startup fire at this temperature (= rapid generation of high heat by quick burning of newspaper), so that the fumes are not completely removed, then you should abandon your plans for a fire. -
Page 23: Fire Safety (Please Read, Very Important!!!)
9. Troubleshooting 9.1 Poor Draft Conditions • Is the chimney too short? • Is the chimney or flue leaking? • Is the flue protruding out from the chimney? Is the door from another fireplace that is connected to the same chimney, open? •... - Page 24 Glass Dimensions: Height: 550.0mm Width: 420.0mm Thickness: 4.0mm Radius: 420.0mm IMPORTANT: Replace glass only with glass from the manufacturer or distributor of this appliance Page 24...
- Page 25 13.3 Replacement of baffle and firebrick Note: Cracks in the stone do not have any effect on the combustion and service life of the fireplace. The bricks should not remain touching the metal for prolonged periods of time. Warning: When stoking logs, make sure they do not hit the brick hard to prevent damage! To replace the baffle and firebrick: •...
