Summary of Contents for Edwards Radius Roller RRM2
- Page 1 Radius Roller RRM2 Operations Manual Serial Number: Original Instructions - RRM2...
-
Page 2: Declarations Of Conformity
Machinery Safety Directive 2006/42/EC General Directive: Electromagnetic Compatibility Directive 2004/108/EEC Low Voltage Directive 2006/95/ES Declaration of E.C. Compliance Conforming Machinery: Model: Radius Roller RRM2 Company Profile Type: Hydraulic Accessory Serial Number: Refer to Title Page Warranty Manufacturer: Edwards Manufacturing Company... -
Page 3: Warranty
This information, however, will enable the user of the machine to make a better evaluation of the hazard and risk. which have been altered, changed or modified in any way, Edwards Manufacturing Company 1107 Sykes Street Albert Lea, MN 56007 USA or subjected to abusive and abnormal use, inadequate... -
Page 4: Operator And Supervisor Information
Do not resell, relocate or export to a destination other than to the original Maintenance Manual machinery may result in operator death or injury. point of sale. Edwards has designed this machine to meet the stan- Wear Personal Protective Equipment dards of the original receiving country and is not liable for meeting any... - Page 5 Porta Power. Turn the 3-position switch on the front of the machine case to the Ac- The Radius Roller is powered by either an Edwards Ironworker with the cessory position. This operation disables the Ironworker and switches With the Edwards Porta-Power off, install accessory hoses, power and When disconnecting your Radius Roller, simply reverse procedure.
-
Page 6: Base Operation

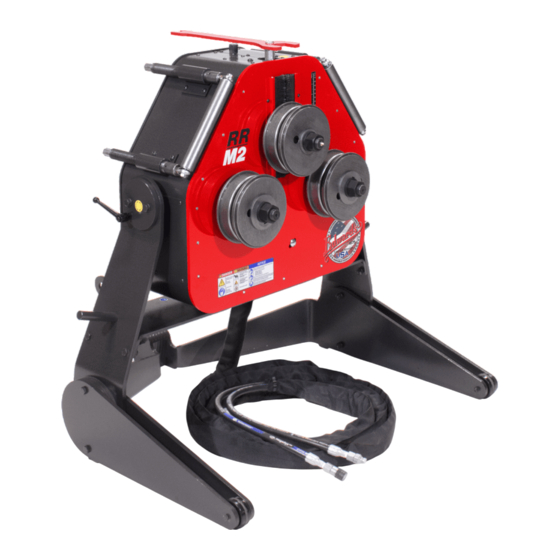

Rolling Base Tilting Head-Frame Operation The head-frame of your Edwards RRM2 Radius Roller is mounted with a yoke and pin to a sleeve and stop mechanism in the roller stand. This mounting configuration allows for the Roller enclosure to be operated in either a horizontal or vertical orientation. - Page 7 (3 pieces) onto the fully lubricated idler shaft. It is critical that the TIGHTEN SECURING NUTS TO SHAFTING. idler shaft be thoroughly lubricated with NLGI#2 extreme pressure Loading Material Your Edwards Radius Roller will roll-form flat, angle, pipe and tube grease LUBRICATION sections to variable radiuses when equipped with the proper, Prepare your work by cleaning the material and die surfaces.
- Page 8 Rolling Common Sections ROLL FORMING ANGLE SECTIONS ROLL FORMING ROUND SECTIONS Roll forming angle sections is a multi-pass process. Patience and test Roll forming solid round, pipe and tube sections is possible with the ROLL FORMING FLAT SECTIONS material are required to provide for a successful part. Universal Die Set.
-
Page 9: Troubleshooting
Troubleshooting Quality parts are dependent upon conscientious setup, operation and maintenance of your RRM2 Radius Roller. Physically review your Radius Roller prior to any operation. Confirm all static components are tight in the assembly. Confirm all moving components are free of obstruction. Confirm all tooling and assemblies are properly seated within the assembly. Problem Solution Roller Inoperable...
