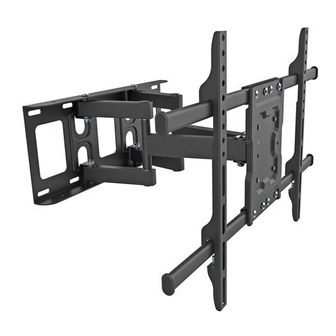

Parts List
Description
A wall arm assembly
B adaptor plate
C adaptor bracket
D adaptor tube
E connector plate
F bubble level
G M8 concrete anchor
H M8 x 60mm hex wood screw
I 5mm allen wrench
J M4 x 12mm
K M4 x 25mm
L M6 x 12mm
M M6 x 25mm
N M8 x 12mm
O M8 x 25mm
P M8 x 50mm
Q M6 washer
R M8 washer
S spacer
T M6 x 10mm machine screw
U M8 x 20mm skt
V M8 flat washer
W M8 x 35mm
A ( 1 )
wall arm assembly
J ( 4 )
M4 x 12mm
N ( 4 )
M8 x 12mm
P ( 4 )
520-1031
M8 x 50mm
Qty
1
1
2
4
2
1
4
4
1
4
4
4
4
4
4
4
8
8
4
4
8
4
4
K ( 4 )
M4 x 25mm
O ( 4 )
M8 x 25mm
520-1128
(127 - 191 cm)
B ( 1 )
adaptor plate
E ( 2 )
connector plate
L ( 4 )
M6 x 12mm
W ( 4 )
M8 x 35mm
Q ( 8 )
M6 washer
1
2020-07-31
50" - 75"
MAX
C ( 2 )
adaptor bracket
M ( 4 )
M6 x 25mm
#:204-9108-5
99 lb
(45 kg)
D ( 4 )
adaptor tube
F ( 1 )
bubble level
S ( 4 )
10mm height
spacer
R ( 8 )
M8 washer
(2020-12-16)
Advertisement
Related Manuals for peerless-AV TVA775
Summary of Contents for peerless-AV TVA775

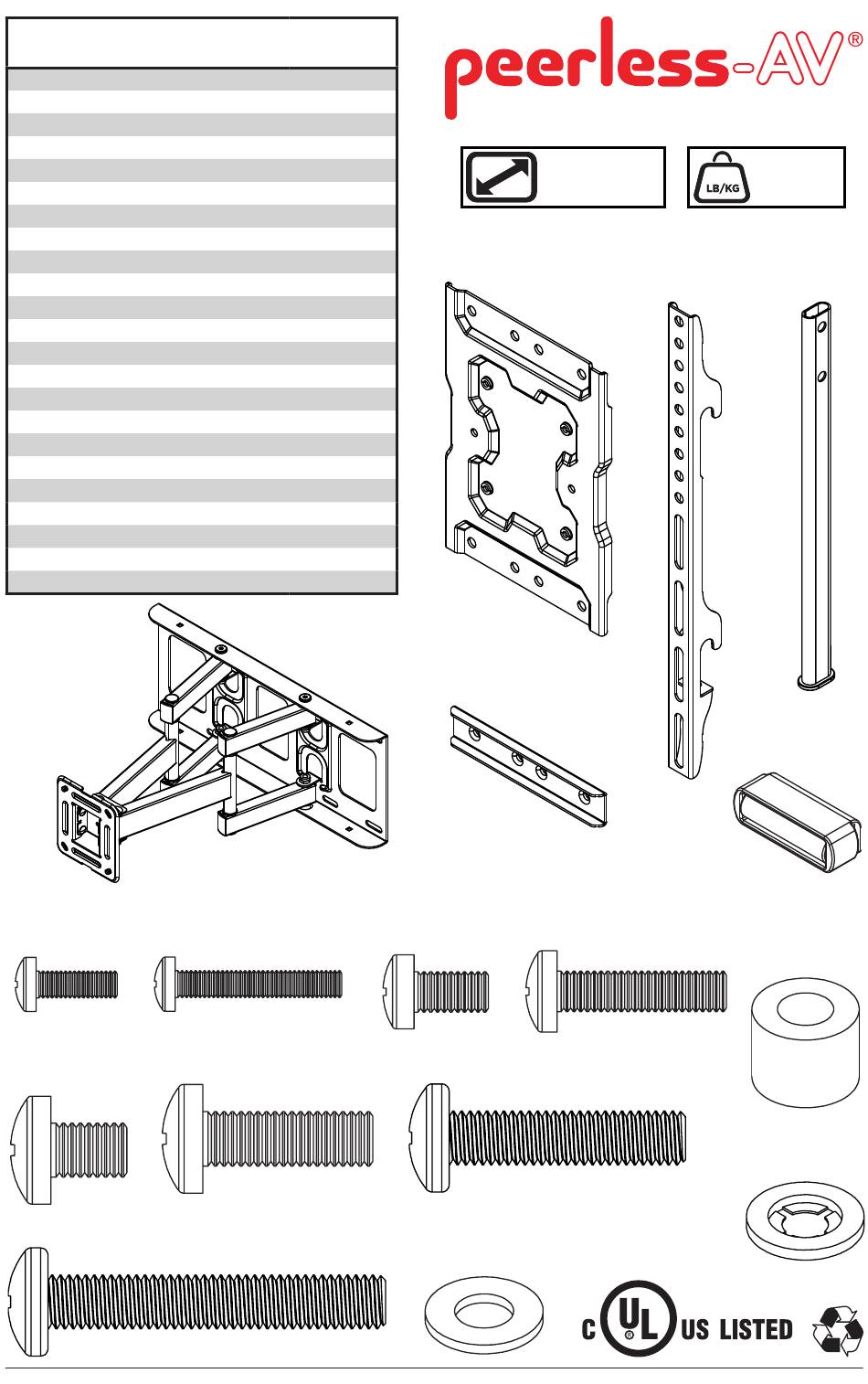

- Page 1 Parts List Description A wall arm assembly B adaptor plate C adaptor bracket D adaptor tube 50" - 75" 99 lb E connector plate (127 - 191 cm) (45 kg) F bubble level G M8 concrete anchor H M8 x 60mm hex wood screw B ( 1 ) C ( 2 ) D ( 4 )
