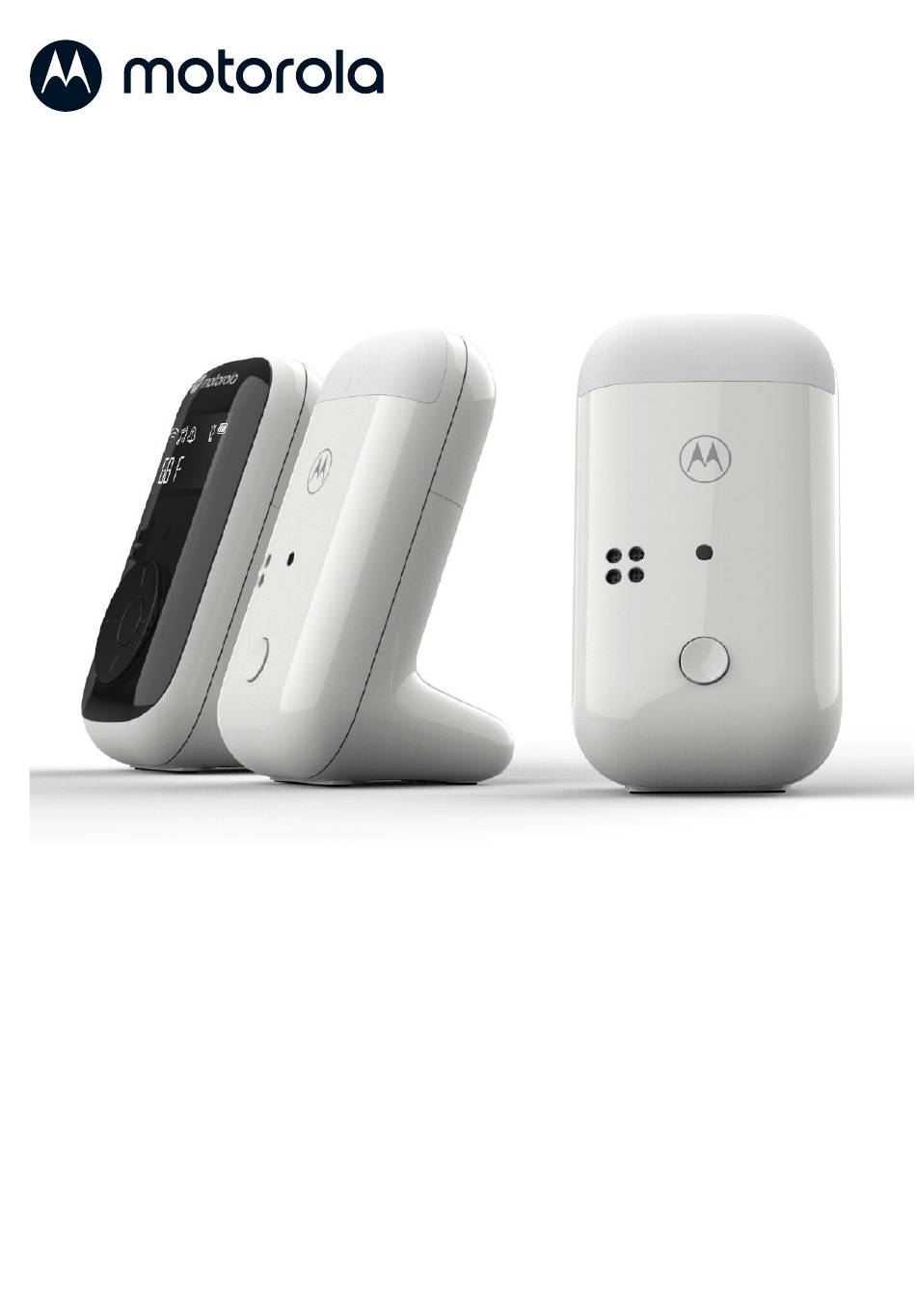

- Page 1 AUDIO BABY MONITOR For: PIP15 MULTI-ROOM PIP15-2 MULTI-ROOM PIP15-3 MULTI-ROOM PIP15-4 MULTI-ROOM User Guide Important Notes: • Charge PIP15-2 MULTI-ROOM for 16 hours before use.
-
Page 2: Safety Instructions
Safety instructions WARNING Strangulation Hazard. Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 1 metre away). Never use extension cords with AC Adapters. Only use the AC Adapters provided. - Page 3 Baby monitor setup and use: • Determine a location for the baby unit that will allow you to hear your baby in his/her cot. • Place the baby unit on a flat surface, such as a dresser, bureau, or shelf. •...
- Page 4 Welcome... to your new Motorola PIP15-2 MULTI-ROOM Baby Monitor! • Secure, interference free reception and high-quality sound. • Magnetically attached baby and parent units. • Long range up to 1000 feet outdoors (line of sight). • Two-way talk back between baby and parent units.
- Page 5 This User Guide provides you with all the information you need to get the most from your digital audio baby monitor. Read the instructions carefully, and be aware that this digital audio baby monitor is only intended as an aid. It is not a substitute for responsible and proper adult supervision.
-
Page 6: Table Of Contents
At a glance ................7 Connect and charge ............9 Before use ................11 Using the digital audio baby monitor .......12 Help ..................16 Technical Specifications ..........17 General information ............18... -
Page 7: At A Glance
At a glance Baby unit Front view Back view A Microphone B Power button Press and hold to turn the baby unit on or off. C Power jack D Power / Battery charging/ Linking LED indicator • When powered on, it lights up in red first and becomes green. •... -
Page 8: Parent Unit
Parent unit Front view Back view A Display B Microphone C Scroll up / Volume up Press to increase the speaker volume or scroll up in screen. D Menu / OK / Scroll left • Enter the main menu and confirm menu options. •... -
Page 9: Connect And Charge
2. Connect and charge WARNING • Use only the approved rechargeable Ni-MH battery cells (AAA Ni-MH rechargeable batteries) supplied with your PIP15-2 MULTI-ROOM. • Strangulation Hazard. Children have STRANGLED in cords. Keep adapter cords out of the reach of children (more than 1 metre away). Never use extension cords with AC adapters. - Page 10 3. Switch on the AC power (if your AC power outlet has a switch). The battery charging LED indicator will light up in red and turn dim when the batteries are fully charged. 4. To connect another baby unit, repeat the above steps. Note: If the battery charging LED indicator flashes red when turning on the power button, it means the battery level is low and needs recharging.
-
Page 11: Before Use
3. . Before use Intended use Be aware that this Digital Audio Baby Monitor is only intended as an aid. It is not a substitute for responsible and proper adult supervision. Setup location • Do not place any baby units or cords in the cribs or within reach of the babies. -
Page 12: Using The Digital Audio Baby Monitor
4. Use the digital audio baby monitor Turn the baby unit on / off • Press and hold on the baby unit to turn it on. The power / linking LED indicator lights up in red first and becomes green. •... -
Page 13: Sound Alert
Mute the speaker Press continuously or press and hold to mute the speaker of the parent unit. When it is muted, will be displayed. Sound alert When the parent unit detects a sound, the LED backlight on the parent unit screen will turn on. -
Page 14: Reset The Baby Monitor
To deregister a baby unit, follow the steps below. On the parent unit, press MENU / OK then scroll MENU / OK to REGISTER. 2. Press MENU / OK then scroll + / - to UNPAIR. 3. Press MENU / OK then scroll + / - to select a baby unit. 4. - Page 15 4.16 Set the night light on or off to NIGHT LIGHT. Press MENU / OK then scroll 2. Scroll to select a baby unit, press MENU / OK to confirm. 4.17 Lullabies playback for the baby unit Make sure the baby unit(s) are switched on, 2.
-
Page 16: Help
Help The power / linking LED Indicator on the parent unit does not turn on. • Check whether the parent unit is powered on. • Check whether the batteries are correctly installed and not drained. • Connect the parent unit to the power supply to recharge it. The power / linking LED indicator on the parent unit flashes. -
Page 17: Technical Specifications
Technical Specifications RF frequency bands 1881.792 MHz to 1897.344 MHz (Europe) 1921.536 MHz to 1928.448 MHz (USA & Canada) RF transmission power < 0.25 W (EU version) Line of sight operating range 300 meters (1000 feet) between the baby and parent units Power adapter for the baby SHENZHEN BAIJUNDA ELECTRONIC CO. -
Page 18: General Information
Meizhou, Guangdong, P.R.China . (“MZGW”) What Does this Warranty Cover? Subject to the exclusions contained below, MZGW warrants that this Motorola branded product (“Product”) or certified accessory (“Accessory”) sold for use with this product that it manufactured to be free from defects in materials and workmanship under normal consumer usage for the period outlined below. - Page 19 PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OF IMPLIED. IN NO EVENT SHALL MOTOROLA OR MZGW BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING...
- Page 20 (c) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of Motorola or MZGW are excluded from coverage.
-
Page 21: Fcc And Ic Regulations
EU Declaration of Conformity (DoC) Hereby, MZGW declares that the radio equipment type is in compliance with RE Directive 2014/53/EU. The full text of the EU declaration of conformity is available on the website: motorolanursery.com UK Declaration of Conformity (DoC) Hereby, MZGW declares that this product is in compliance with the requirements for UKCA marking. -
Page 22: Radiation Exposure Statement
ISED Warning This device complies with Innovation, Science, and Economic Development Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. - Page 23 MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. All other trademarks are the property of their respective owners. © 2024 Motorola Mobility LLC. All rights reserved. Version 3_EN...
