Summary of Contents for Motorola nursery PIP15

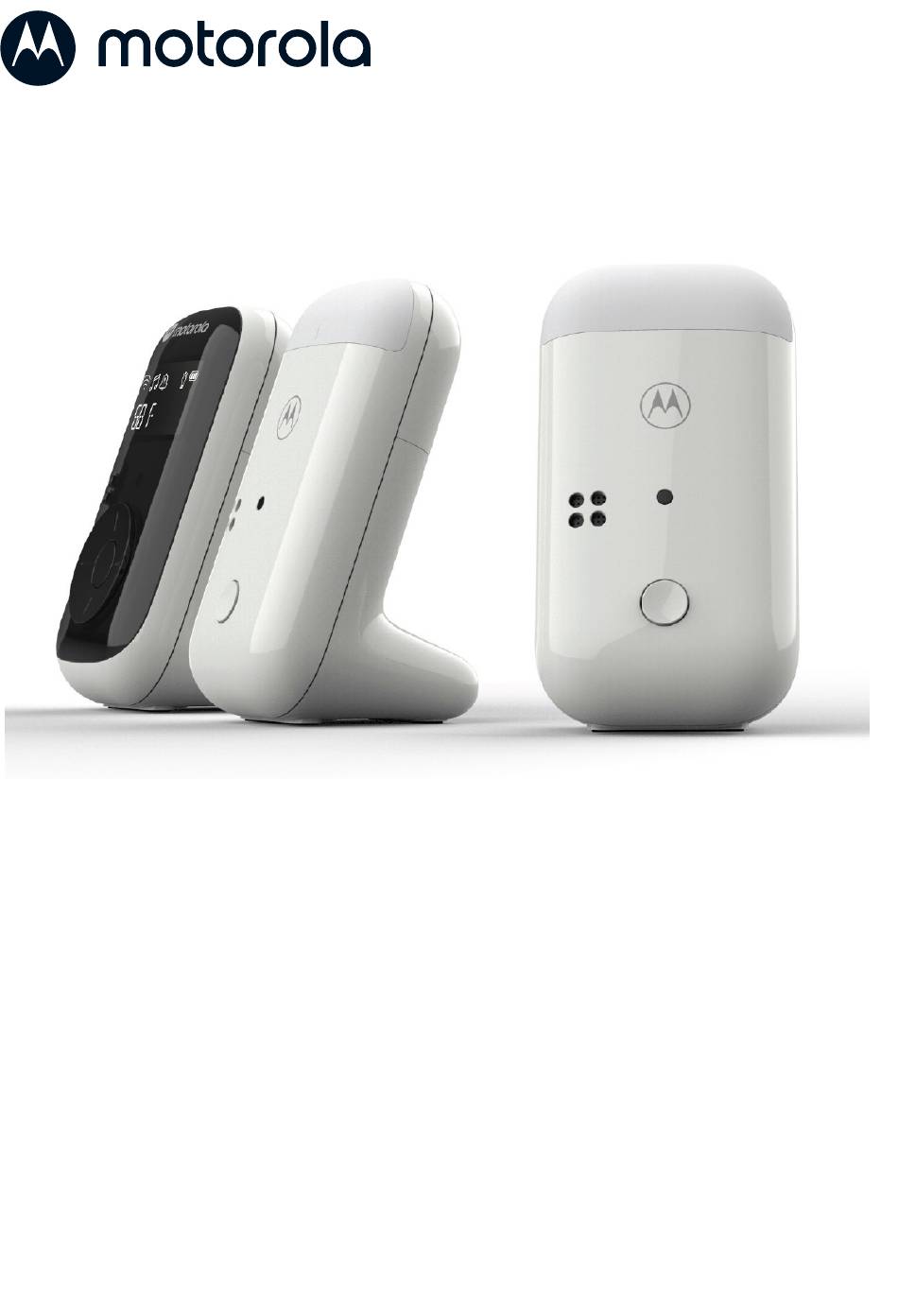

- Page 1 nursery AUDIO BABY MONITOR User Guide For: PIP15 PIP15-2 MULTI PIP15-3 MULTI PIP15-4 MULTI Important Notes: • Charge both parent unit and baby units for 16 hours before initial use.
- Page 2 Safety instructions WARNING Strangulation Hazard. Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 1 metre away). Never use extension cords with AC Adapters. Only use the AC Adapters provided.
- Page 3 Baby monitor setup and use: • Determine a location for the baby unit that will allow you to hear your baby in his/her cot. • Place the baby unit on a flat surface, such as a dresser, bureau, or shelf. •...
- Page 4 Welcome... to your new Motorola PIP15 or PIP15 MULTI Baby Monitor! • Secure, interference free reception and high-quality sound. • Long range up to 1500 feet (450 meters) outdoors (line of sight). • Portable baby units with around 10 hours of battery usage.
- Page 5 This User Guide provides you with all the information you need to get the most from your audio baby monitor. Read the instructions carefully, and be aware that this audio baby monitor is only intended as an aid. It is not a substitute for responsible and proper adult supervision.
-
Page 6: Table Of Contents
Getting started ..............7 Getting to know your baby monitor ......10 Before use ................13 Intended use ......................13 Setup location ....................13 Operating range ....................13 Check the microphone and speaker ............13 Using the audio baby monitor ........14 Turn the baby unit on / off ................14 Turn the parent unit on / off ................14 Listening and cycling modes ...............14 Adjust the speaker volume on the parent unit ........14... -
Page 7: Getting Started
Getting started Location Important Do not place your PIP15 or PIP15 MULTI in the bathroom or other humid areas. Place your units within reach of the AC power outlet and wall socket. The socket-outlet should be installed near the equipment and should be easily accessible. - Page 8 Installing batteries into the parent unit Important Warning! Use only the approved rechargeable Ni-MH battery cells (2 x AAA Ni-MH rechargeable batteries) supplied with your PIP15 or PIP15 MULTI. Lift up the battery cover to remove it from the parent unit. 2.
- Page 9 Battery low warning • On the baby units, if the battery charging LED indicator flashes red when turning on the power button, it means the battery level is low and needs recharging. • On the parent unit, if flashes on the screen display when turning on the power button, it means the battery level is low and needs recharging.
-
Page 10: Getting To Know Your Baby Monitor
Getting to know your baby monitor Overview of your baby unit Front view Back view A Night night B Microphone C Power / Night night button • Single press to toggle the brightness of the night light from off, low, medium and high. - Page 11 Overview of your parent unit Front view Back view A Display B Microphone C Scroll up / Volume up Press to increase the speaker volume or scroll up in screen. D Menu / Scroll left • Enter the main menu. •...
- Page 12 LCD display Status icons Indicates the current signal strength level (4 levels). The night light (with the number of the baby unit) is on. The speaker is muted. The sound alert icon is on. Indicates the current battery levels (3 levels). A baby unit (with its number and name) is connected and blinks when sound is detected.
-
Page 13: Before Use
Before use Intended use Be aware that this Audio Baby Monitor is only intended as an aid. It is not a substitute for responsible and proper adult supervision. Setup location • Do not place any baby units or cords in the cribs or within reach of the babies. -
Page 14: Using The Audio Baby Monitor
Using the audio baby monitor Turn the baby unit on / off • Press and hold on the baby unit to turn it on. The power LED indicator lights up in red first and becomes green. • Press and hold on the baby unit again to turn it off. -
Page 15: Talk Back
Talk back Press continuously on the parent unit to select an individual baby unit or all baby units. Then the screen will display with the baby unit number(s) selected. Press and hold , and speak to your baby/babies through the microphone of the parent unit. -
Page 16: Reset The Baby Monitor
4.10 Reset the baby monitor Press MENU then scroll to RESET. 2. Press two times to confirm. 4.11 Set the key tone on or off. Press MENU then scroll to KEY TONE. 2. Press two times to confirm. 4.12 Temperature 4.12.1 Set the temperature format Press MENU then scroll... -
Page 17: Lullabies Playback For The Baby Unit
4.16 Lullabies playback for the baby unit Make sure the baby unit(s) are switched on, 2. On the parent unit, press MENU then scroll o LULLABY. 3. Press then scroll to select a baby unit, press two times to confirm. During lullabies playback, you can perform the following actions: •... -
Page 18: 4.18.2 Set The Sound Alert On Or Off
4.18.2 Set the sound alert on or off Press MENU then scroll to VOX. SOUND ALERT. 2. Press then scroll to select 3. Press two times to confirm. Notes: • The VOX setting has OFF, LEVEL 1, LEVEL 2, LEVEL 3 and LEVEL 4. If you set the VOX level to OFF, all sounds will be detected by the baby unit and heard from the parent unit. -
Page 19: Help
Help The power / linking LED Indicator on the parent unit does not turn on. • Check whether the parent unit is powered on. • Check whether the batteries are correctly installed and not drained. • Connect the parent unit to the power supply to recharge it. The power / linking LED indicator on the parent unit flashes. -
Page 20: Technical Specifications
Technical Specifications RF frequency bands 1881.792 MHz to 1897.344 MHz (Europe) 1921.536 MHz to 1928.448 MHz (USA & Canada) RF transmission power < 0.25 W (EU version) Line of sight operating range 450 meters (1500 feet) between the baby and parent units Power adapter for the baby SHENZHEN BAIJUNDA ELECTRONIC CO. -
Page 21: General Information
Meizhou, Guangdong, P.R.China . (“MZGW”) What Does this Warranty Cover? Subject to the exclusions contained below, MZGW warrants that this Motorola branded product (“Product”) or certified accessory (“Accessory”) sold for use with this product that it manufactured to be free from defects in materials and workmanship under normal consumer usage for the period outlined below. - Page 22 PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OF IMPLIED. IN NO EVENT SHALL MOTOROLA OR MZGW BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING...
- Page 23 (c) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of Motorola or MZGW are excluded from coverage.
- Page 24 EU Declaration of Conformity (DoC) Hereby, MZGW declares that the radio equipment type is in compliance with RE Directive 2014/53/EU. The full text of the EU declaration of conformity is available on the website: motorolanursery.com UK Declaration of Conformity (DoC) Hereby, MZGW declares that this product is in compliance with the requirements for UKCA marking.
- Page 25 ISED Warning This device complies with Innovation, Science, and Economic Development Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
- Page 26 MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. All other trademarks are the property of their respective owners. © 2024 Motorola Mobility LLC. All rights reserved. Version 6_EN...
