DOUK AUDIO JAN5654 T4 PLUS Quick Start Manual

Download this manual

Thank you very much for buying our products! Please read this manual

carefully before using the product.

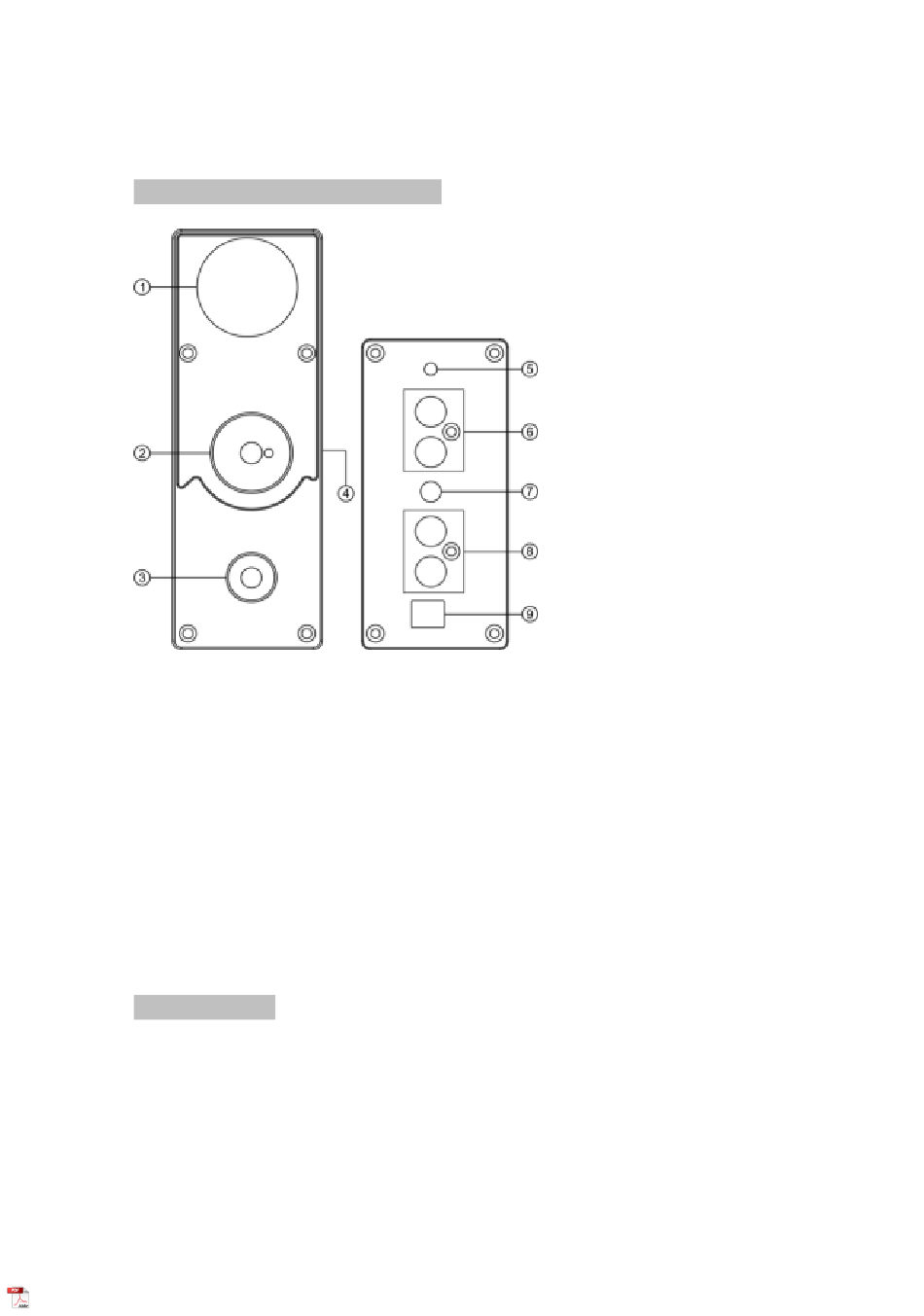

The front and rear panel instructions：

..............................

①

VU Level meter (The pointer swings with the music level)

② .............................. ON/OFF/Volume increase and decrease knob

(Right rotation: power on, volume up / left rotation: volume down, power off)

③ .............................. 3.5 headphone output interface (Synchronize with RCA output)

④ ..............................

(MM and MC selection，MC mode impedance matching selection)

⑤ .............................. Phonograph grounding column

⑥ .............................. Phonograph input interface (Red / R, white / L)

⑦ .............................. Aux input interface (It can connect to CD player, mobile phone,

computer, etc)

⑧ ..............................

RCA output interface (Red / R, white / L)

⑨ .............................. Power interface (DC 12V)

operation steps：

Install the tube into the base of the tube according to the direction

(the tube is not distinguish between left and right, check whether the pin is

deformed before installing the tube, and the deformation can be corrected by hand).

Connect the back-end power amplifier to the RCA output interface of the product.

Need help?

Do you have a question about the JAN5654 T4 PLUS and is the answer not in the manual?

Page 1 Thank you very much for buying our products! Please read this manual carefully before using the product. The front and rear panel instructions： ………………………… ① VU Level meter (The pointer swings with the music level) ② ………………………… ON/OFF/Volume increase and decrease knob (Right rotation: power on, volume up / left rotation: volume down, power off) ③...
Page 2 Connect the sound source to be used to the input interface of the product (when the aux sound source is connected, it will automatically switch to the aux channel. When the aux sound source line is pulled out, Automatically switch to phonograph channel).
Page 3 Q : why do I not connect the sound source after I plug in the input line, and the speaker will have a great buzz? A : 1. If you use unshielded signal lines, there will be interference signals entering the power amplifier.
