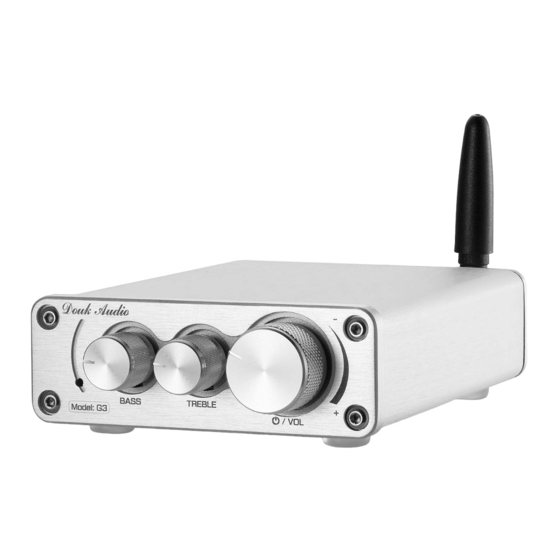

DOUK AUDIO G3 Quick Start Manual

G3/G5 100W Bluetooth
Digital Stereo Power Amplifier
NOTICE
1. Please make sure the power knob shutdown before you connect
G3/G5 to power supply, avoid generating electric sparks although
this is normal without any security issues.
2. Default OPTIONAL 19V power supply enough to drive most home
speakers. If you buy the version without power supply or want
higher output, please prepare high-quality power supply by
yourself. Powered by 24V power supply(4Ω load), the actual
output power can reach 100W.
3. Before turning on the amp, please make sure the volume knob
at the leftmost end, avoid high volume ( high output power )
damaging your speakers.
4. Noise may be caused by poor audio cables, sound sources,
speakers, speaker cables, interference sources, poor contacts
and the device itself. How to determine the reason: 1) remove
all input cables and make sure no interference sources around
such as routers; 2) connect the amp to speakers; 3) connect the
amp to power supply correctly and turn on the amp; 4) if noise
1
exists, then problem may be the amp, power supply, speakers
or speaker cables. Please use another speaker, speaker cables
or power supply to check one by one for further determination; 5)
if no noise, please use other audio cables or audio sources for
further determination.
PARAMETERS
Model
Treble and Bass Control
Audio input
Audio output
Max output power
Power amp chip
Op amp
Speaker impedance
Matched loudspeakers
Frequency response
THD
SNR
Working Voltage
Default power supply(optional)
Dimensions(L*W*H)
Net Weight
G3 G5
Yes No
3.5mm AUX & Bluetooth
Banana speaker jacks
100W(24V, 4Ω load)
TPA3116
3*TL072 2*TL072
4-8Ω
3-8 inch 10-150W
18Hz-25KHz 20Hz-22KHz
0.002%(1KHz) 0.001%(1KHz)
101dB 103dB
DC12-24V (5.5mm / 2.5mm)
19V
105 x 85 x 30mm / 4.13 x 3.35 x 1.18in
260g / 0.57lb
2
