Thank you very much for choosing our products!Please read this manual
carefully before using the product.

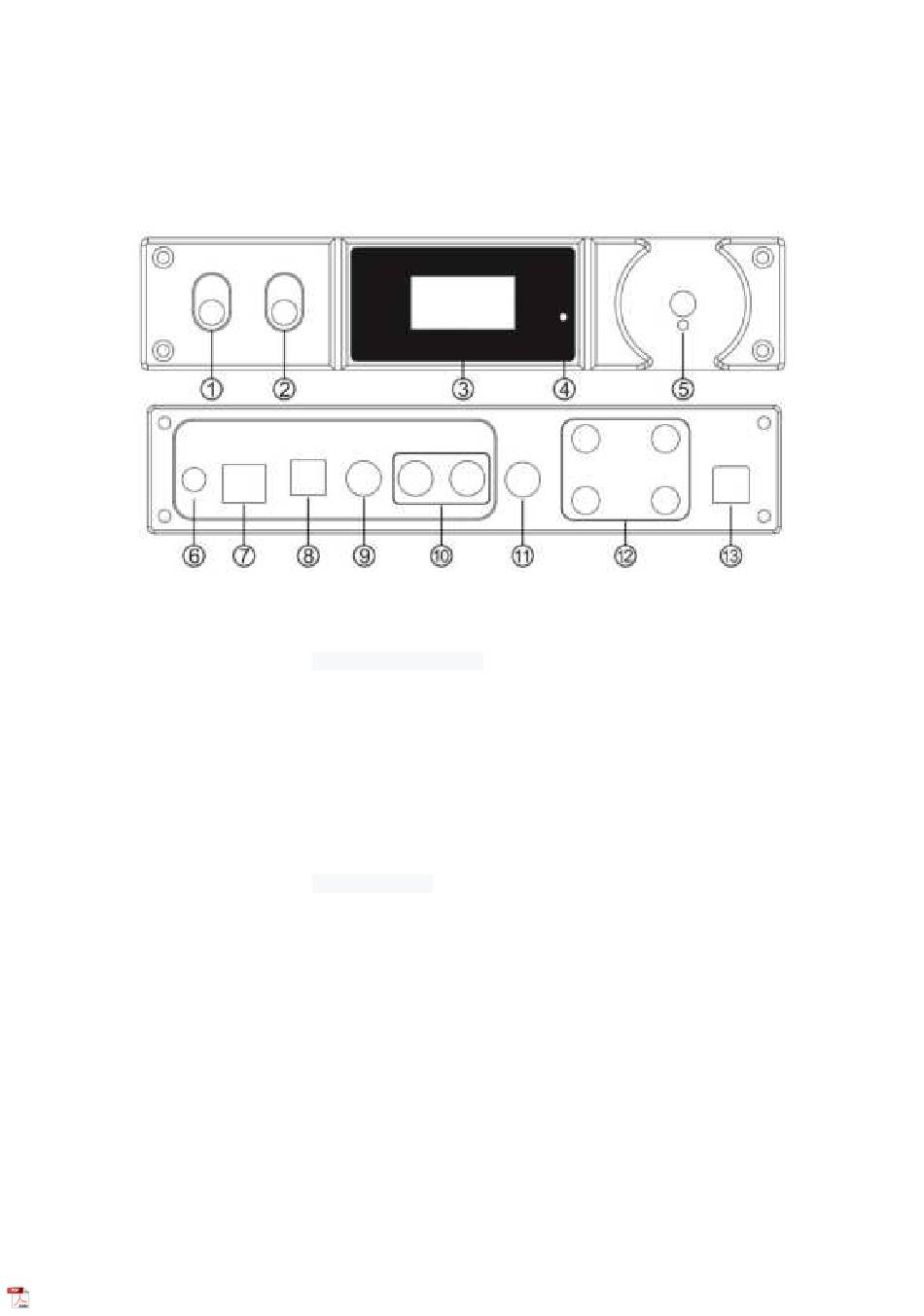

Instruction of Front & Rear Surface:
① ... ... ... ... ...... ... ...... ...
Adjustment
② ..............................
③ .............................. OLEDdis play window
④ .............................. IR remote receiver
⑤ .............................. Vol +/- &mute switch
⑥ .............................. Bluetooth antenna (Bluetooth is optional)
⑦ .............................. PC-USB input interface
⑧ .............................. Optical input interface
⑨ .............................. Coaxial input interface
⑩ .............................. RCA input interface
⑪ ..............................
⑫ .............................. Speaker interface (Red to positive, Black to negative, R to right
speaker, L to left speaker)
⑬
..............................
ON/OFF Switch/Channel Election/Bass & Treble Adjustment/Loudness
Input channel selection Switch
A low-pass output
PSU interface (DC power supply, not exceed 36V)
1
Advertisement
Related Manuals for DOUK AUDIO D05
Summary of Contents for DOUK AUDIO D05
- Page 1 Thank you very much for choosing our products!Please read this manual carefully before using the product. Instruction of Front & Rear Surface: ① … … … … …… … …… … ON/OFF Switch/Channel Election/Bass & Treble Adjustment/Loudness Adjustment ② ………………………… Input channel selection Switch ③...
- Page 2 Remote Instruction: ……………………………………… Turn on/off … … … … … … … … … … … … … … … Input channel selection ………………………………………Sound off ………………………………………Bass + ………………………………………Treble - ………………………………………Treble + … … … … … … … … … … … … … … … Loudness turn/off ………………………………………Bass -...
-
Page 3: Operation Steps
OLED display window instruction: A………Input channel display area,USB/Optical/Coaxial/AUX/BT B………Input sampling rate area, no signal will show - - - C………Volume display area，Volume range 0-99 D………At the bottom is the volume progress bar ±12dB High and low sound setting display style, high and low sound adjustable range EQ display style, display Jazz/Classical/Dance/Pop/Soft/Normal/Rock/SoftRock according to the selection Open different EQs in TONE-ON mode, HIFI mode is pass-through mode... -
Page 4: Specification
1. Connect speakers to SPK OUT interface 2. Connect the sound source to the sound source input interface 3. Connect power supply (power supply should not exceed DC36V) 4. Press machine ON/OFF or remote control to start the machine 5. Press the machine input channel selection key or the remote control to select the input channel 6. - Page 5 Q: Why can't I find Bluetooth？ A: The input channel must be switched to BT to search for a connection to bluetooth Q:Why music is stutter when using bluetoth? A:The effective transmission distance of bluetooth is 10M without blocking. If it exceeds 10M or there is obstruction, the transmission distance of bluetooth will be affected q:Will my speakers burn out if I have a speaker below 100W A:No, the maximum output of the amplifier is 120W, which means the sound is set to the maximum.
