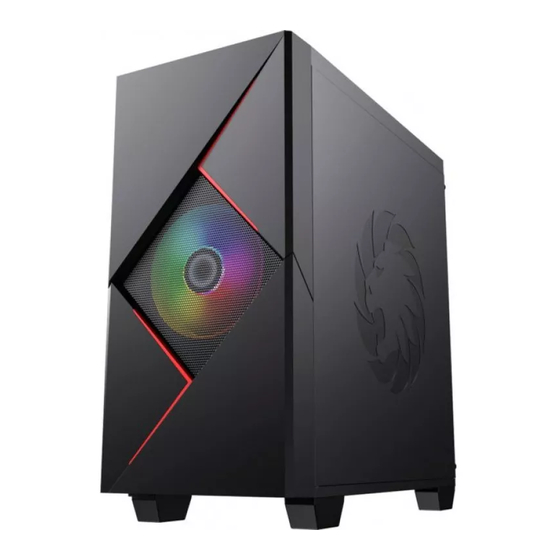

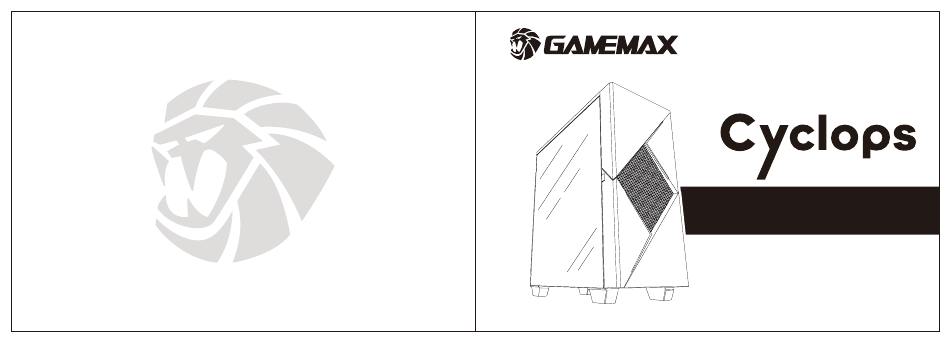

  • Page 1 USER MANUAL CopyRight@ 2021.6...

  • Page 2: Specification

    EXPLOSIVE VIEW SPECIFICATION Model No. Cyclops(MFG.H610) Chassis Materials Chassis 0.6mm SPCC, tempered glass on left side panel Left tempered glass side panel Motherboard support M-ATX、ITX Right side panel PSU type ATX PSU (Bottom located) Front panel TOP panel I/O ports USB3.0*1+USB2.0*1, HD Audio, Light Controller...

  • Page 3: Side Panel Installation

    SIDE PANEL INSTALLATION I/O PORTS Firmly Drop-proof stabilize the screws chassis with one hand, apply a gradual pulling force with another hand from the bottom to take out the front panel. Loose the drop-proof screws A, pull out the right side panel toward Easy open side door to the arrowhead direction.

  • Page 4: Power Supply Installation

    VGA CARD INSTALLATION POWER SUPPLY INSTALLATION Remove the right side panel，then put into the PSU Fix the screws according to the arrowhead direction. MOTHERBOARD INSTALLATION Remove the PCI slot protection cover. Install the graphics card and secure it with a screw. Pre-installed the motherboard screws Put the motherboard into the right position according to the arrowhead direction, then fix the screws...
  • Page 5 HDD AND SSD INSTALLATION FAN AND WATER COOLING INSTALLATION Install fan cooling Installing2x 3.5" toolless or 2x 2.5" storage drive a. when installing 3.5"drive ,without screws; b. when installing 2x2.5" drive use the fine thread phillips head screws (same screws used to secure the motherboard)to secure the drive. Optional mounting position for 2x2.5"...
  • Page 6 FAN AND WATER COOLING INSTALLATION V1.7 A-RGB(RAINBOW) CONTROL HUB Install water cooling Schematic diagram of connection 1. Product features 3. Interface definitions 1-1. 18 col or model s. 3-1. ARGB 1-2. Mode and col or adj ustment. ARGB connect fan or l i ght bar. The tri angl e mark on the pl ug i s al i gned 1-3.
