Serial Bluetooth v.5.2 Smart Adapter, Model: S2B5232EV2 Datasheet V2.3
Serial Bluetooth version 5.2 Smart® Adapter - RS232, Low Energy BLE

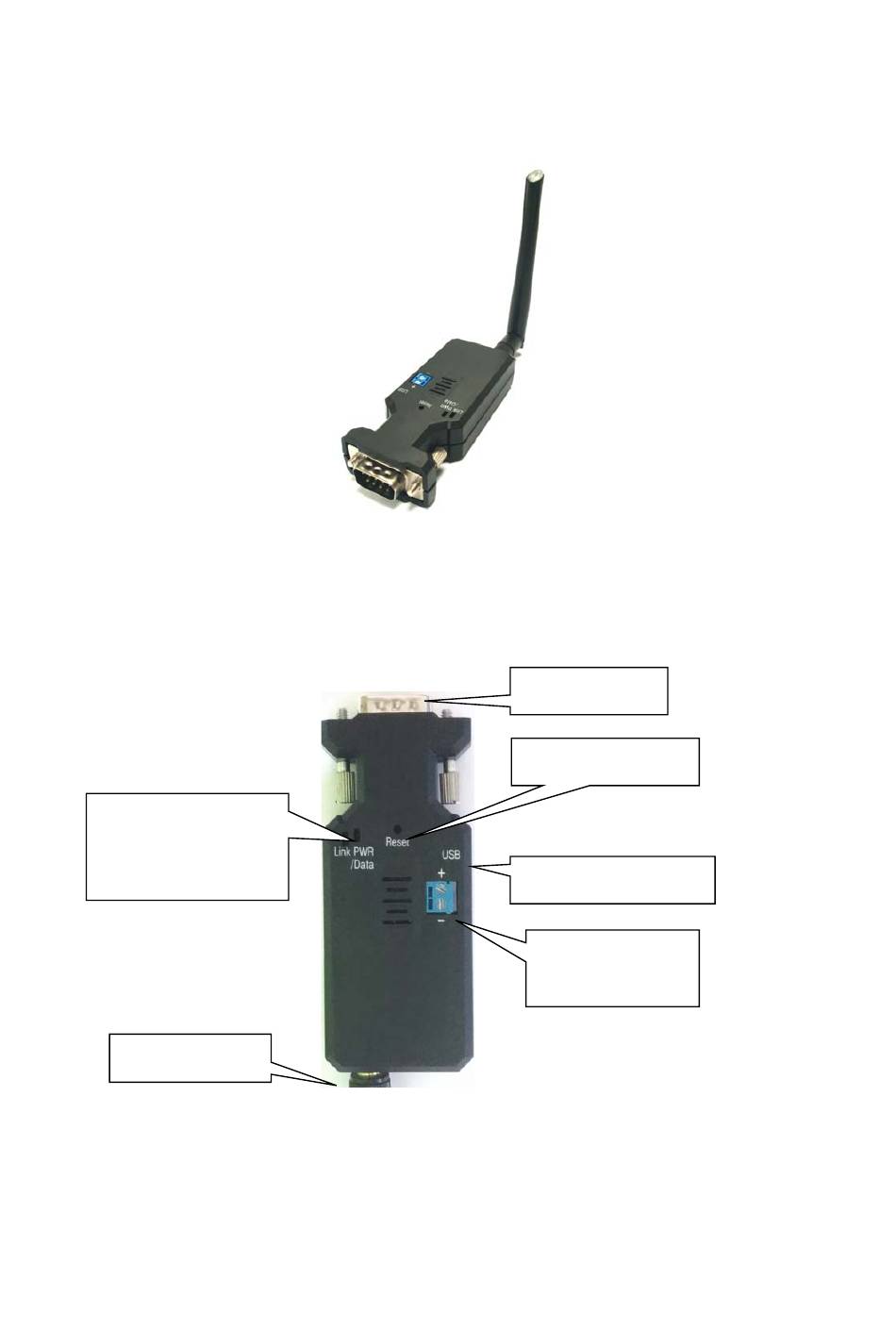

Package content:
BLE RS-232 adapter x 1
User manual x 1
Mini USB Cable x 1
LEDs:
Link: Blue
PWR/Data: Red
2 dBi Antenna
Datasheet and Quick Reference for S2B5232EV2
WWW.USCONVERTERS.COM
DB9 (male)
Reset to Default
Mini USB (Power)
▲ + (5-40 VDC)
▼ GND
1
