WA232E Quick reference v. 1.4

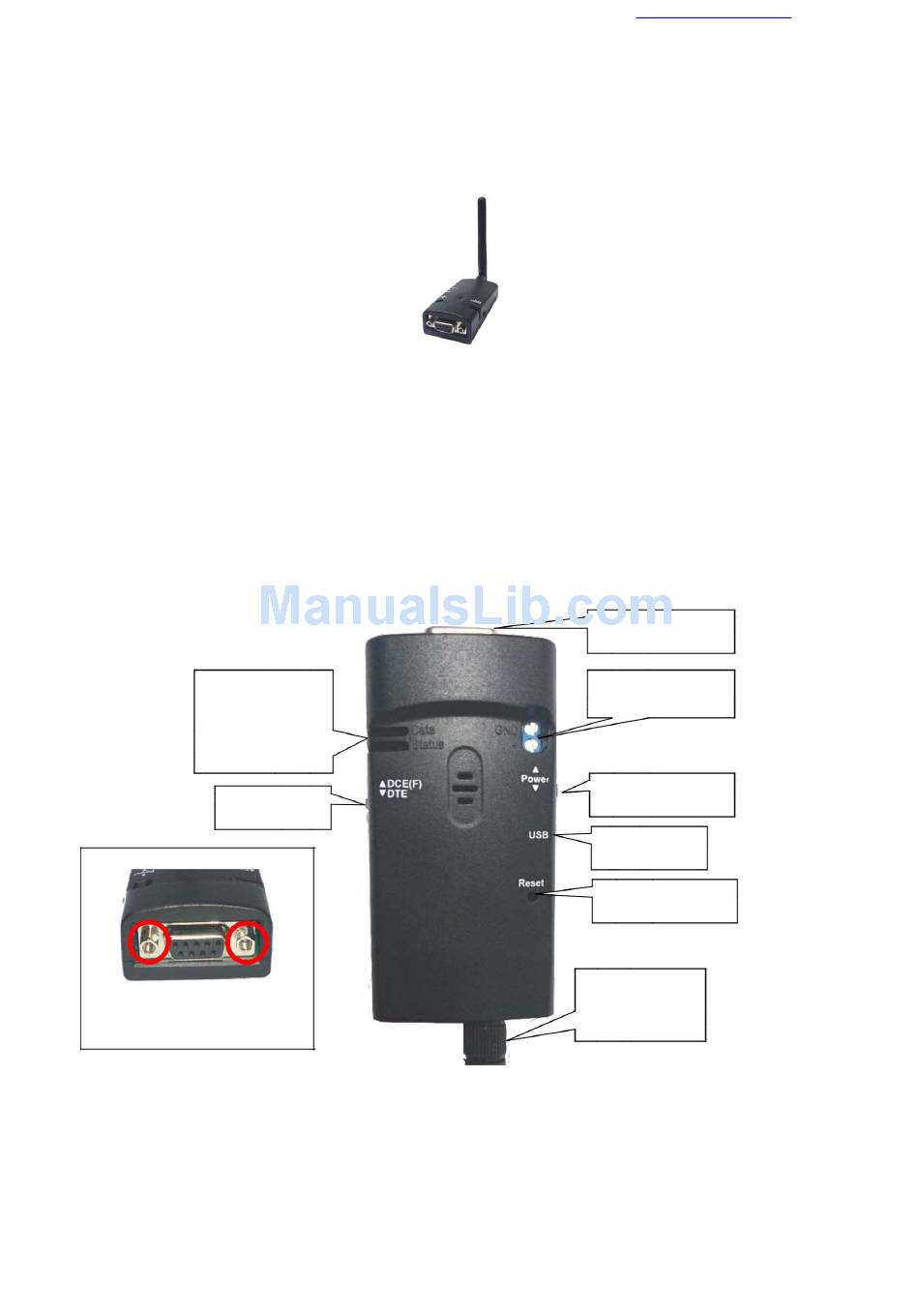

LEDs:
Removable stand-off nuts
Quick reference sheet for
WiFi to RS-232 adapter WA232E
WiFi RS-232 adapter x
1 2 dBi dipole antenna x
1 A4 User manual x 1
DB9 male/male connector x
Data:
Red
Status:
Blue
DCE/DTE
Package Contents:
1 USB Cable x 1
www.usconverters.com
DB9 (Female)
5 - 27VDC
Power switch
Mini USB
Reset switch
2 dBi dipole
antenna
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Usconverters WA232E
Summary of Contents for Usconverters WA232E
- Page 1 WA232E Quick reference v. 1.4 www.usconverters.com Quick reference sheet for WiFi to RS-232 adapter WA232E Package Contents: WiFi RS-232 adapter x 1 2 dBi dipole antenna x 1 A4 User manual x 1 DB9 male/male connector x 1 USB Cable x 1...
-
Page 2: Specifications
WA232E Quick reference v. 1.4 www.usconverters.com SPECIFICATIONS Part number WA232E Processor ASIX AXM23001 chip with ARM Cortex M3 166Mhz Operating system VCOM software for: Windows 10, Windows 8/8.1, Windows 7 (32/64-bit). App available for Android and Network IEEE 802.11 b/g/n Frequency 2.412 - 2.484 GHz... - Page 3 WA232E Quick reference v. 1.4 www.usconverters.com Power The adapter can be powered through the mini USB port, through the screw terminals or through pin 9 in the DB9 connector. 5VDC to 27VDC for all power sources. Default COM port settings ...
- Page 4 WA232E Quick reference v. 1.4 www.usconverters.com LED indication lights: Red: Power On or Off, Blue: WiFi Status Adapter mode WiFi mode LED light WiFi state Working Station Disconnected Flashing 0.5sec interval Connected Flashing 0.5sec interval Working Upgrading FW Station Disconnected...
- Page 5 WA232E Quick reference v. 1.4 www.usconverters.com 2: RFC2217 3: Modbus Gateway Usage: setsrvport <port number> Usage: setdstport <port number> Usage: setdsthn <host name | IP address> Usage: connectype <protocol> <protocol>: 0: TCP 1: UDP Usage: connstatus Usage: wifi_connect [SSID] [WPA PASSWORD / WEP KEY(5 or 13)] [WEP KEY ID]...
- Page 6 WA232E Quick reference v. 1.4 www.usconverters.com 38400 bps 57600 bps 115200 bps 921600 bps <databits>: 7 or 8 bits <stop_bits>: 1 or 2 bit(s) <parity>: 0 = none, 1 = odd, 2 = even <flow_contrl>: 0 = disable, 1 = enable CTS/RTS flow control Usage: dhcpclient <status>...
- Page 7 WA232E Quick reference v. 1.4 www.usconverters.com Usage: setemsc <SecurityType> <PortNumber> <SecurityType>: 0=No security 1=SSL 2=TLS 3=Auto <PortNumber>: 25 or 587 for regular transfer port 465 for SSL port Usage: setemac <UserName> <PassWord> Usage: emconfig Usage: setaw <cold start> <authentication fail> <ip changed> <password changed>...
