Blutronium™ Serial Bluetooth Adapter – Datasheet & Quick Reference
Overall features
•
Advanced but user friendly functions
•
State-of-the-art configuration software
•
Can be configured over Bluetooth
•
Internal rechargeable lithium battery
•
Baud rates from 1200 to 921,600bps
•
Basic configuration by DIP switches
•
Communication range up to 300 feet
•
Works with most mobile devices
•
USB power cable included
•
DCE/DTE controlled by switch
•
Can be powered through the serial interface
•
LED indication lights
•
Works with most serial RS232 devices
•
Full duplex, can send and receive at the same time
•
Tested with Cisco routers and switches
•
Power: USB, DB9, power supply or internal battery
www.usconverters.com
Blutronium™
Serial RS232 Bluetooth Adapter
Datasheet & Quick Reference
www.USconverters.com
Page 1
Advertisement
Related Manuals for Usconverters Blutronium B-TRON 5000
Summary of Contents for Usconverters Blutronium B-TRON 5000

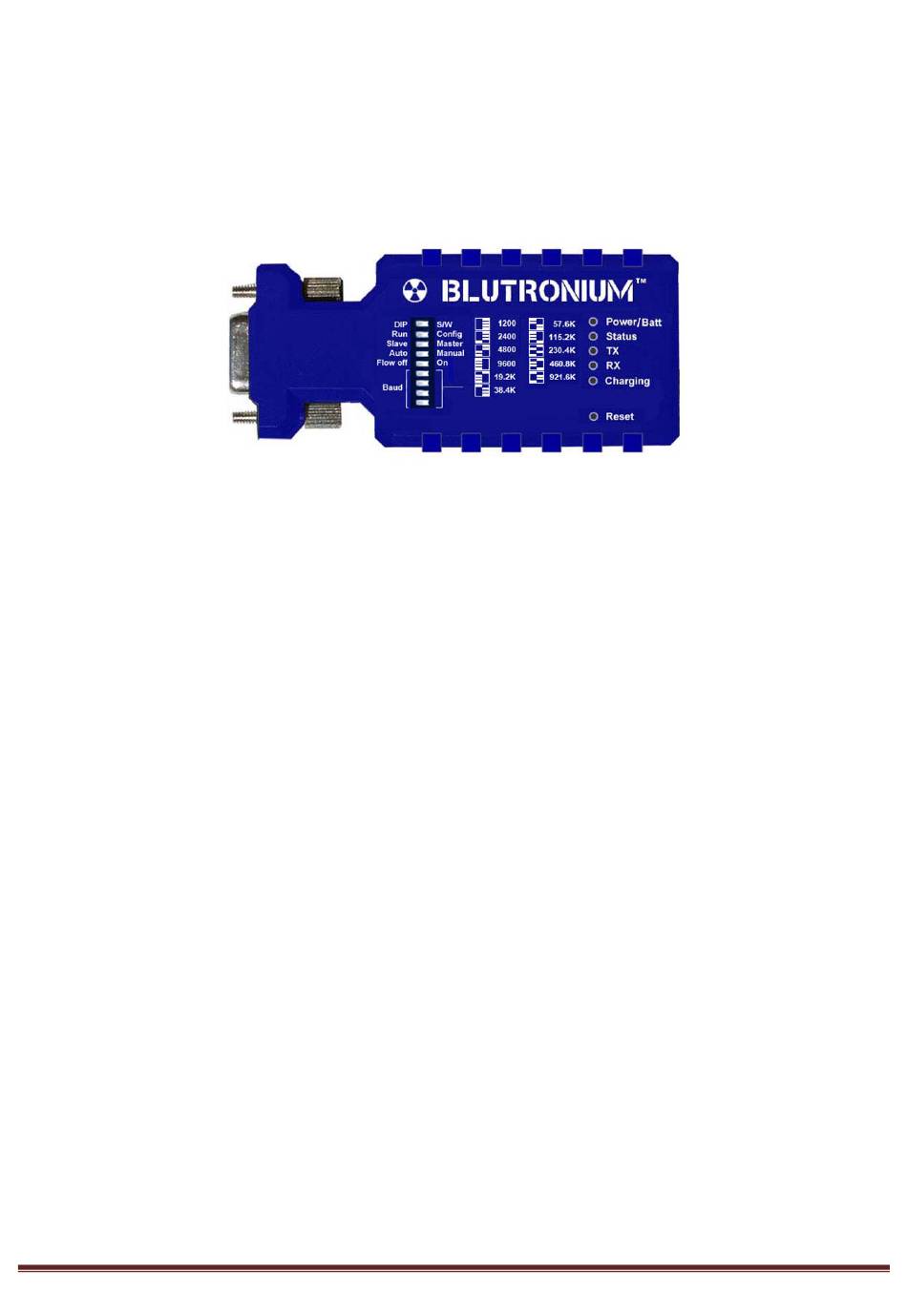

- Page 1 Blutronium™ Serial Bluetooth Adapter – Datasheet & Quick Reference www.USconverters.com Blutronium™ Serial RS232 Bluetooth Adapter Datasheet & Quick Reference Overall features • Advanced but user friendly functions • State-of-the-art configuration software • Can be configured over Bluetooth • Internal rechargeable lithium battery •...
-
Page 2: Specifications
Blutronium™ Serial Bluetooth Adapter – Datasheet & Quick Reference www.USconverters.com SPECIFICATIONS B-TRON 5000 (with internal chip antenna) Part number B-TRON 5000A (with external di-pole antenna) Windows 10, Windows 8.1, Windows 8, Windows 7, Vista, XP, 2000, ME, 98, Linux, Mac,... - Page 3 Blutronium™ Serial Bluetooth Adapter – Datasheet & Quick Reference www.USconverters.com Serial port 1-port female D-sub 9-pin Bluetooth standard V2.1 Class 1, + EDR Frequency range 2.4GHz – 2.4835 GHz ISM Band Hopping 1.600/sec, 1MHz channel space Modulation GFSK-1, DQPSK-2, 8-DPSK-3 Mbps Tx power Max.
- Page 4 Blutronium™ Serial Bluetooth Adapter – Datasheet & Quick Reference www.USconverters.com DIP switches Baud rate settings Indication lights USB for power DCE/DTE switch Power source selector DIP Switches: NOTICE: The DIP switches must be set to the desired positions before the adapter is turned on.
- Page 5 Blutronium™ Serial Bluetooth Adapter – Datasheet & Quick Reference www.USconverters.com Auto / Manual • Position “Auto”: The adapter will automatically connect with a Slave adapter. This only works if the adapter is in Master mode. • Position “Manual”: Master and Slave will need to be connected manually with the 'CONNECT' command.
- Page 6 The parameters can be configured over Bluetooth or through the adapter’s serial port by using the Blutronium Configuration Utility which can be downloaded from https://www.usconverters.com/activate, or by sending AT commands to the adapter. Please see the 'Setup Guide' for how to setup and use the adapter and Configuration Utility.
- Page 7 Blutronium™ Serial Bluetooth Adapter – Datasheet & Quick Reference www.USconverters.com silence after the command is entered. The time interval between each entered characters should be: [500ms] “<” [500ms] “<” [500ms] “<” [1500ms] <<<= Inquire the setting status of the “<<<” command.
- Page 8 Blutronium™ Serial Bluetooth Adapter – Datasheet & Quick Reference www.USconverters.com Display the MAC address of the latest paired device. Recover the latest connection in the command mode. Disconnect the two adapters in the command mode Connect the previous connected adapter.
- Page 9 Blutronium™ Serial Bluetooth Adapter – Datasheet & Quick Reference www.USconverters.com Inquire the current setting NAME= This command is used to specify a name for the adapter. You can specify a friendly name using 0 to 9, A to Z, a to z, space and –, which are all valid characters.
- Page 10 Blutronium™ Serial Bluetooth Adapter – Datasheet & Quick Reference www.USconverters.com minute. If any device is found, its name and its 12-digit-address will be listed. The search ends with a message “Inquiry ends. xx device(s) found.” This command is available only when the adapter is in the master role by manual.
-
Page 11: Radio Frequency Interference Statement
Blutronium™ Serial Bluetooth Adapter – Datasheet & Quick Reference www.USconverters.com Federal Communications Commission (FCC) Statement RADIO FREQUENCY INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
