Datasheet & Quick Reference, S2B2232FIV2 / S2B2232FEV2
LED:
Link: Blue
PWR/Data: Red
Package Contents:
RS-232 adapter x 1
User manual x 1
USB Cable x 1
Di-pole antenna (S2B2232FEV2 only)
www.usconverters.com

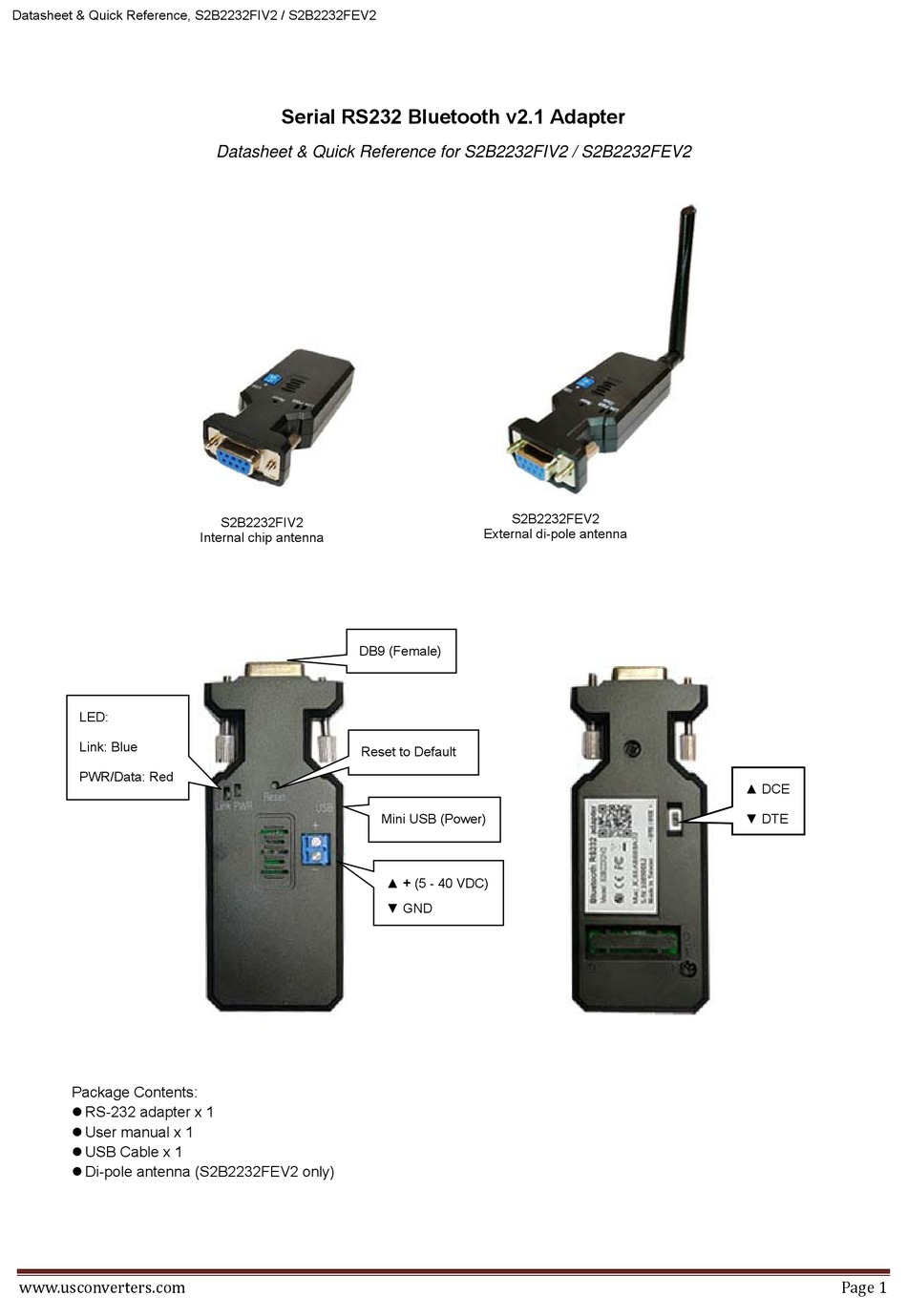

Serial RS232 Bluetooth v2.1 Adapter
Datasheet & Quick Reference for S2B2232FIV2 / S2B2232FEV2
S2B2232FIV2
Internal chip antenna
DB9 (Female)
Reset to Default
S2B2232FEV2
External di-pole antenna
Mini USB (Power)
▲ + (5 - 40 VDC)
▼ GND
▲ DCE
▼ DTE
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Usconverters S2B2232FIV2
Summary of Contents for Usconverters S2B2232FIV2
- Page 1 Datasheet & Quick Reference, S2B2232FIV2 / S2B2232FEV2 Serial RS232 Bluetooth v2.1 Adapter Datasheet & Quick Reference for S2B2232FIV2 / S2B2232FEV2 S2B2232FEV2 S2B2232FIV2 External di-pole antenna Internal chip antenna DB9 (Female) LED: Link: Blue Reset to Default PWR/Data: Red ▲ DCE Mini USB (Power) ▼...
-
Page 2: Specifications
Datasheet & Quick Reference, S2B2232FIV2 / S2B2232FEV2 SPECIFICATIONS (internal chip antenna) S2B2232FIV2 Part number (external di-pole antenna) S2B2232FEV2 Windows 11, Windows 10, Windows 8.1, Windows 8, Windows 7, Vista, XP, 2000, ME, 98, Operating systems Linux, Mac, Android Interface type... - Page 3 Datasheet & Quick Reference, S2B2232FIV2 / S2B2232FEV2 S2B2232FIV2: Internal dipole S2B2232FEV2: External 2dBi di-pole, Reverse Polarity SMA male (inside threads / center Antenna receptacle) Antenna connector on Reverse Polarity SMA female (outside threads / center pin) adapter (S2B2232FEV2) Mini USB cable (5VDC) Power options ...
- Page 4 Datasheet & Quick Reference, S2B2232FIV2 / S2B2232FEV2 Parameters The parameters can be configured via the DB9 RS232 serial port using a standard terminal program such as Putty or Tera Term, or over BLE Bluetooth using an app. Please see the 'Setup Guide' for details.
- Page 5 Datasheet & Quick Reference, S2B2232FIV2 / S2B2232FEV2 DEFAULT= This command is used to restore the default settings and originate a warm start. Restore the default settings (e.g. 9600 bps). The command will re-start the system for 1 second. DEVICE= xxxxxxxxxxx Pre-set the adapter’s mac address.
- Page 6 Datasheet & Quick Reference, S2B2232FIV2 / S2B2232FEV2 PIN= This command is used to specify a PIN. Paired adapters should have a same PIN. The length must be 4 – 16 alphanumeric characters. The master will connect the slave first and check the pin value sent from the slave. The master will connect the slave if the pin value is the same between both.
- Page 7 Datasheet & Quick Reference, S2B2232FIV2 / S2B2232FEV2 Pin configuration Signal DTE Direction DCE Direction Description Input Output Not connected Output Input Transmit Input Output Receive Input Output Not connected Signal ground (and power GND if powered by pin 9) Output...
- Page 8 Datasheet & Quick Reference, S2B2232FIV2 / S2B2232FEV2 UUID_BLE5NAME = ("00031205-0000-1000-8000-00805f9b0130"), Device name, Max. 15bytes,UTF-8,(read/write) UUID_BLE5PIN = ("00031206-0000-1000-8000-00805f9b0130"), Pin code, 6bytes, (read/write) UUID_BLE5RBT = ("00031210-0000-1000-8000-00805f9b0130");Reboot, 2bytes, (read/write) 4. BLE Central command set: Used to connect BLE peripheral device. Available on ROLE=C.
-
Page 9: Radio Frequency Interference Statement
Datasheet & Quick Reference, S2B2232FIV2 / S2B2232FEV2 Federal Communications Commission (FCC) Statement RADIO FREQUENCY INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
