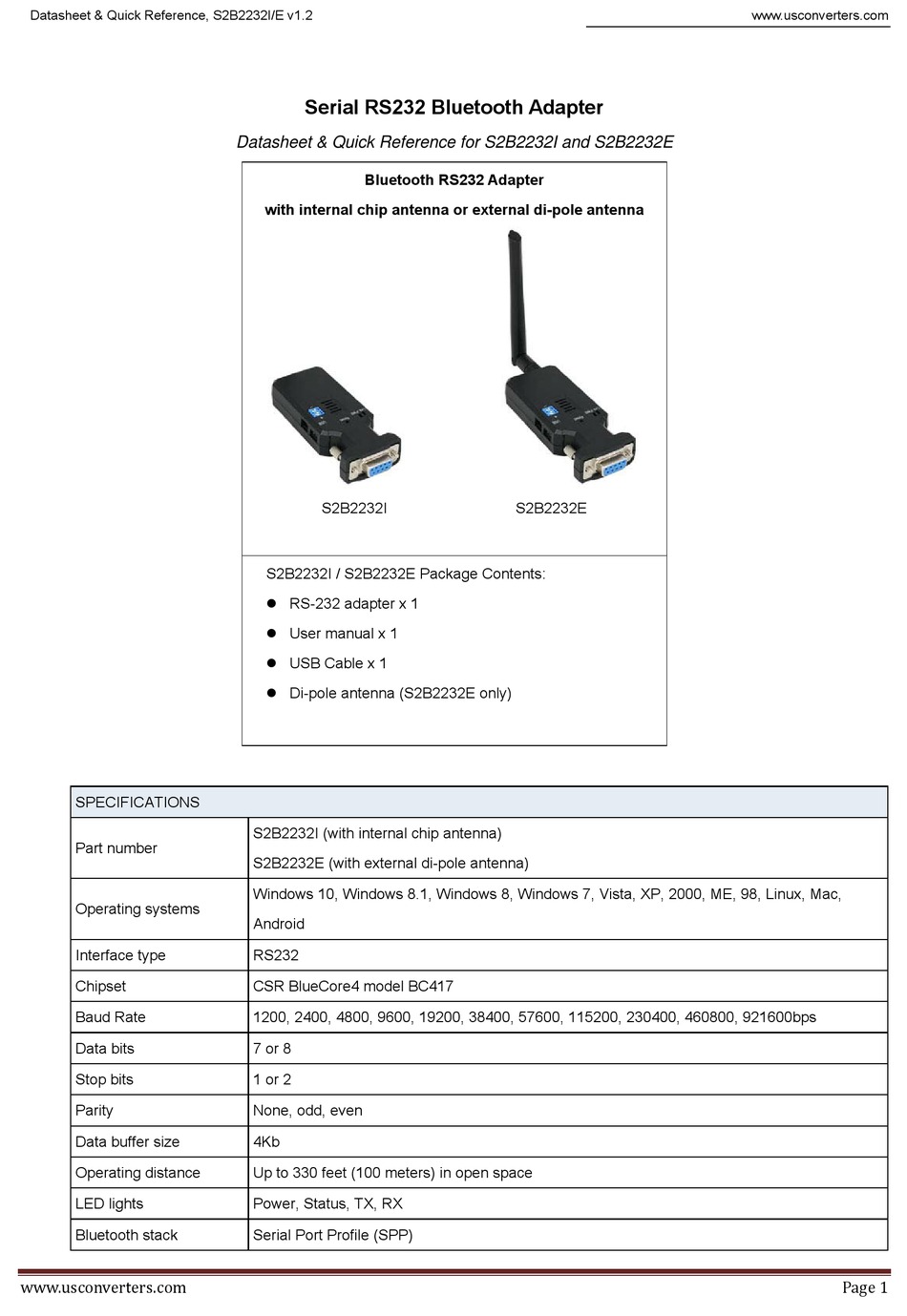

Datasheet & Quick Reference, S2B2232I/E v1.2
SPECIFICATIONS
Part number
Operating systems
Interface type
Chipset
Baud Rate
Data bits
Stop bits
Parity
Data buffer size
Operating distance
LED lights
Bluetooth stack
www.usconverters.com
Serial RS232 Bluetooth Adapter
Datasheet & Quick Reference for S2B2232I and S2B2232E
Bluetooth RS232 Adapter
with internal chip antenna or external di-pole antenna
S2B2232I
S2B2232I / S2B2232E Package Contents:
RS-232 adapter x 1
User manual x 1
USB Cable x 1
Di-pole antenna (S2B2232E only)
S2B2232I (with internal chip antenna)
S2B2232E (with external di-pole antenna)
Windows 10, Windows 8.1, Windows 8, Windows 7, Vista, XP, 2000, ME, 98, Linux, Mac,
Android
RS232
CSR BlueCore4 model BC417
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600bps
7 or 8
1 or 2
None, odd, even
4Kb
Up to 330 feet (100 meters) in open space
Power, Status, TX, RX
Serial Port Profile (SPP)
S2B2232E
www.usconverters.com
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Usconverters S2B2232I
Summary of Contents for Usconverters S2B2232I
- Page 1 Datasheet & Quick Reference, S2B2232I/E v1.2 www.usconverters.com Serial RS232 Bluetooth Adapter Datasheet & Quick Reference for S2B2232I and S2B2232E Bluetooth RS232 Adapter with internal chip antenna or external di-pole antenna S2B2232I S2B2232E S2B2232I / S2B2232E Package Contents: RS-232 adapter x 1 ...
- Page 2 Datasheet & Quick Reference, S2B2232I/E v1.2 www.usconverters.com PIN code available for pairing Connection type Point-to-point Flow control CTS/RTS DEC/DTE Manual switch Parameters configurable • Over Bluetooth (with serial terminal software) • Over serial port (with serial terminal software) RS232 Signals...
- Page 3 Datasheet & Quick Reference, S2B2232I/E v1.2 www.usconverters.com Female DB9 Indication LEDs Reset Mini USB power in 5 – 40VDC power in Default factory settings: Baud rate: 9600 bps Data bit: 8 Parity: none Stop bit: 1 ...
- Page 4 Datasheet & Quick Reference, S2B2232I/E v1.2 www.usconverters.com ▲ DCE ▼ DTE DIP Switch DIP switch settings Setup CTS/RTS Stop Bit Parity Role Baud Rate 3-2-1 0: DIP Switch 0: Disable 0: 1 00: None 0:Slave 110:2400 1: AT Command 1: Enable...
- Page 5 The parameters can be configured via the DB9 RS232 serial port or over Bluetooth. The terminal software TeraTerm or Putty can be downloaded for free from www.usconverters.com is recommended for configuring the parameters. Please see the 'Setup Guide' for details.
- Page 6 Datasheet & Quick Reference, S2B2232I/E v1.2 www.usconverters.com 460800 460800 bps 921600 921600 bps Restore the default settings. (Baud rate = 9600 bps) Inquire the current baud rate. CONNECT= This command is used to establish a connection manually. It is available only when the adapter is in the Master role.
- Page 7 Datasheet & Quick Reference, S2B2232I/E v1.2 www.usconverters.com Inquire the current setting NAME= This command is used to specify a name for the adapter. You can specify a friendly name using 0 to 9, A to Z, a to z, space and –, which are all valid characters.
- Page 8 Datasheet & Quick Reference, S2B2232I/E v1.2 www.usconverters.com Inquire the current mode of the adapter. SEARCH= This command is used to search for any Bluetooth device in the neighborhood within one minute. If any device is found, its name and its 12-digit-address will be listed. The search ends with a message “Inquiry ends.
