Receiving Instructions
After delivery, remove the packaging from the product. Inspect the product closely to determine
whether it sustained damage during transport. If damage is discovered, record a complete description
of it on the bill of lading. If the product is undamaged, discard the packaging.
NOTE: The end-user is solely responsible for confirming that product design, use, and maintenance
comply with laws, regulations, codes, and mandatory standards applied where the product is used.
Technical Service & Replacement Parts
For answers to questions not addressed in these instructions and to order replacement parts, labels,
and accessories, call our Technical Service and Parts Department at (260) 665-7586. The Department
can also be contacted online at https://www.vestil.com/page-parts-request.php.
Electronic Copies of Instruction Manuals
Additional copies of this instruction manual may be downloaded from
manuals.php.
Table of Contents
Revised 11/2024
Vestil Manufacturing Company
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
www.vestil.com

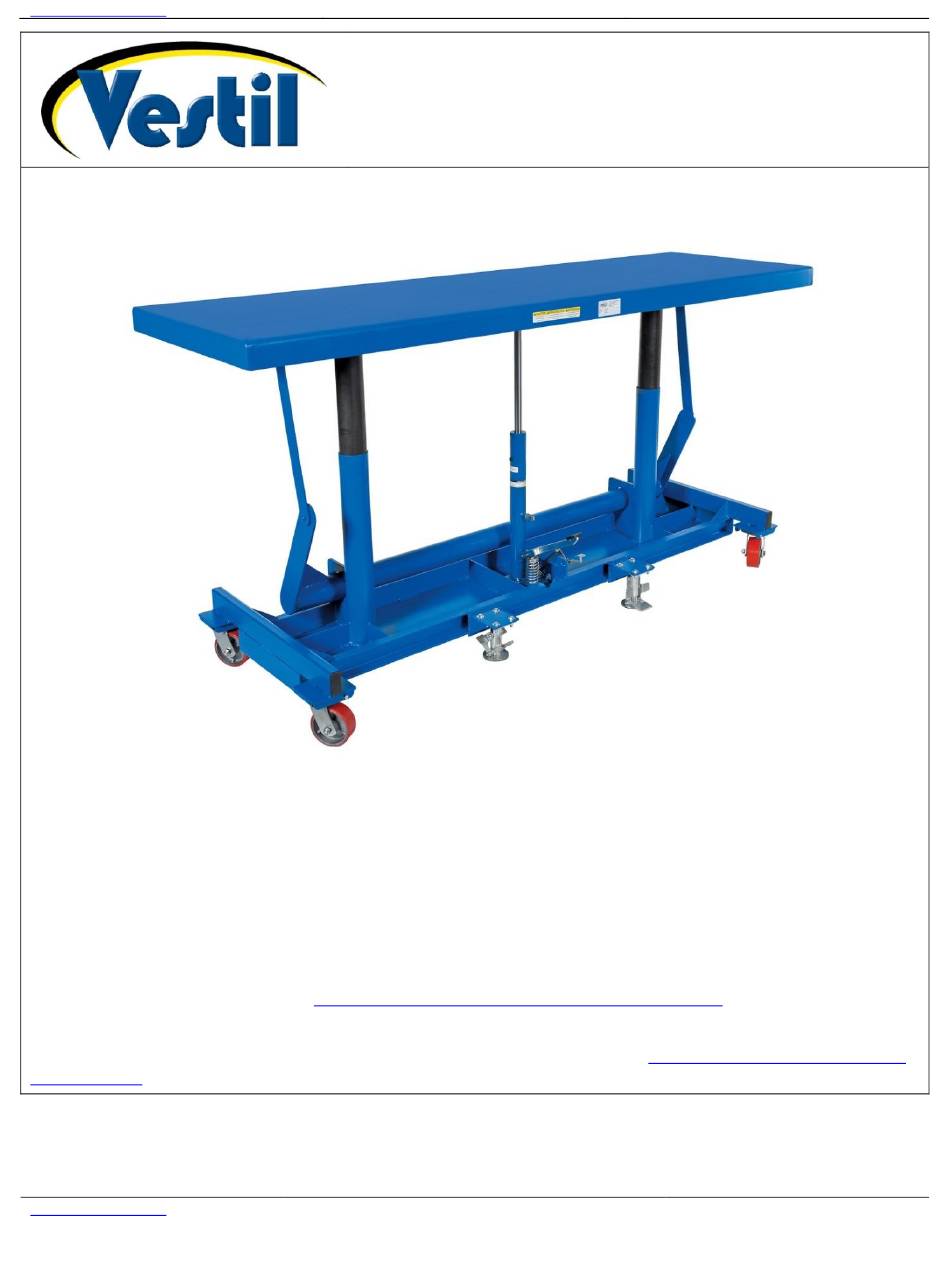

LDLT Long Deck Carts
Copyright 2024 Vestil Manufacturing Co.
Fax: (260) 665-1339
info@vestil.com
https://www.vestil.com/page-
LDLT, MANUAL.docx
Page 1 of 20
Advertisement
Table of Contents
Related Manuals for Vestil LDLT-2060
Summary of Contents for Vestil LDLT-2060
- Page 1 For answers to questions not addressed in these instructions and to order replacement parts, labels, and accessories, call our Technical Service and Parts Department at (260) 665-7586. The Department can also be contacted online at https://www.vestil.com/page-parts-request.php. Electronic Copies of Instruction Manuals Additional copies of this instruction manual may be downloaded from https://www.vestil.com/page-...
-
Page 2: Signal Words
SCOPE This Owner’s Manual provides use and maintenance instructions for the following Long Deck Cart models: LDLT-2060, LDLT-2060-4, LDLT-2072, LDLT-2072-4, LDLT-2096, LDLT-2096-4, LDLT-20120, LDLT-3060, LDLT-3060-4, LDLT-3072, LDLT-3072-4, LDLT-3096, LDLT-3096-4, and LDLT-30120. This manual supersedes the HT, LDLT manual from 10-2003. -
Page 3: Safety Instructions
LDLT, MANUAL.docx SAFETY INSTRUCTIONS Vestil strives to identify foreseeable hazards associated with the use of its products. However, no manual can address every conceivable risk that could arise from using a cart. Always apply good judgment while using this Long Deck Cart (hereafter, “Cart”). - Page 4 Table of Contents Revised 11/2024 LDLT, MANUAL.docx Documents providing further specifications for the LDLT-series Carts are available online at Vestil Manufacturing’s website. To access the specifications document, navigate online to: https://www.vestil.com/product.php?FID=283. Click the Product Specifications Table tab. Scroll to the...
- Page 5 65080 EXTENDED PRONG COTTER PIN, ZINC FINISH, 1/8" x 2" 21-024-021 CAP, RECTANGULAR GLIDE 99-612-001 PIN, BULLDOG BOLT AND NUT ASSEMBLY 16-132-350 FLOOR LOCK 01-640-030 PUMP ASSEMBLY FHJ-18 Table of Contents Copyright 2024 Vestil Manufacturing Co. Page 5 of 20...
- Page 6 FITTING, HYDRAULIC, 06MJ-06 MORB STRAIGHT 99-116-140 FITTING, HYDRAULIC, 90° PUSH LOCK #6 JIC TO 3/8" HOSE 99-116-028 FITTING, HYDRAULIC, HOSE, 04G-06FJX 90° ELBOW 01-531-003 FUSE, VELOCITY, 3 GPM PRESSURE LINE RETURN LINE Table of Contents Copyright 2024 Vestil Manufacturing Co. Page 6 of 20...
- Page 7 Table of Contents Revised 11/2024 LDLT, MANUAL.docx FIGURE 2: EXPLODED VIEW, FOOT OPERATED HYDRAULIC JACK ASSEMBLY (01-640-030). Table of Contents Copyright 2024 Vestil Manufacturing Co. Page 7 of 20...
- Page 8 FHJ-P128 Set Screw FHJ-P118 Push Bolt FHJ-P164 Lock Nut FHJ-P139 Piston FHJ-P165 Snap Ring * Items identified in this column are only available in the FHJ-SK seal kit. Table of Contents Copyright 2024 Vestil Manufacturing Co. Page 8 of 20...
- Page 9 Table of Contents Revised 11/2024 LDLT, MANUAL.docx FIGURE 3. EXPLODED VIEW, AUTO SHIFTER FOOT PUMP ASSEMBLY, GEN. 2 (99-640-016). NOTE: Color added for visual contrast. Table of Contents Copyright 2024 Vestil Manufacturing Co. Page 9 of 20...
- Page 10 VALVE, COUNTERBALANCE, SIZE 06-3 99-153-006 VALVE, PRESSURE RELIEF, 210 BAR 99-153-040-001 FLOW CONTROL, PRES. COMP., 2.0 GAL. 99-116-042 FITTING, HYDRAULIC, 06MORB HOLLOW HEX PLUG FIGURE 4. AUTO SHIFTER SEAL KIT (99-144-031). Table of Contents Copyright 2024 Vestil Manufacturing Co. Page 10 of 20...
- Page 11 Platform, making sure the load remains centered and evenly distributed as much as possible. Before lifting or lowering the Platform, engage both floor locks to prevent unintentional movement. Table of Contents Copyright 2024 Vestil Manufacturing Co. Page 11 of 20...
- Page 12 Cart or cause its load to slide. Only move the Cart on hard, level surfaces. Avoid ramps, as even a moderate slope can cause the pushing force to exceed that which a person can safely exert. Table of Contents Copyright 2024 Vestil Manufacturing Co. Page 12 of 20...
- Page 13 5. Examine the structure for severe rusting or corrosion. For superficial or surface rusting, remove the rust/corrosion with a steel bristle brush or steel wool. Clean the affected area and apply touchup paint. If rusting has thinned or weakened the material, contact Vestil technical service for advice. 6. Check all labels (see the Labeling Diagram, p.
-
Page 14: Troubleshooting And Maintenance
Valve‡. assembly. Pump cylinder up to reset velocity Velocity fuse stuck‡. fuse. * Only applicable to 2000-lb models. ‡ Only applicable to 4000-lb models. Table of Contents Copyright 2024 Vestil Manufacturing Co. Page 14 of 20... - Page 15 2. With the assembly removed, pump the foot pedal at least five times. NOTE: Fluid will be discharged from the release valve’s cavity. 3. Reassemble release valve components. Check the fluid level, replenish as necessary. Table of Contents Copyright 2024 Vestil Manufacturing Co. Page 15 of 20...
- Page 16 NOTE: USE ONLY ANTI-WEAR HYDRAULIC OIL WITH A VISCOSITY GRADE OF 150 SUS AT 100°F (ISO 32 cSt @ 40°c), OR DEXRON NON-SYNTHETIC TRANSMISSION FLUID. NO NOT USE BRAKE FLUID OR JACK OIL. Table of Contents Copyright 2024 Vestil Manufacturing Co. Page 16 of 20...
- Page 17 Turning the screw counterclockwise lowers the release pressure / human effort. 3. Test the new setting with a load on the Platform. When satisfied, tighten the lock nut. Table of Contents Copyright 2024 Vestil Manufacturing Co. Page 17 of 20...
- Page 18 To order replacement or spare parts for this equipment, contact the factory. In any communication with the factory, please be prepared to provide the machine's serial number, as indicated on the machine dataplate. Table of Contents Copyright 2024 Vestil Manufacturing Co. Page 18 of 20...
-
Page 19: Labeling Diagram
Table of Contents Revised 11/2024 LDLT, MANUAL.docx LABELING DIAGRAM Table of Contents Copyright 2024 Vestil Manufacturing Co. Page 19 of 20... -
Page 20: Limited Warranty
Warrantee (you) for warranty service. Who may request service? Only a warrantee may request service. You are a warrantee if you purchased the product from Vestil or from an authorized distributor AND Vestil has been fully paid.
