- Page 1 Quick Start Guide IMX95LPD5EVK-19CM i.MX 95 Family of Applications Processors Evaluation Kit Quick Start Guide...
-
Page 2: Specifications

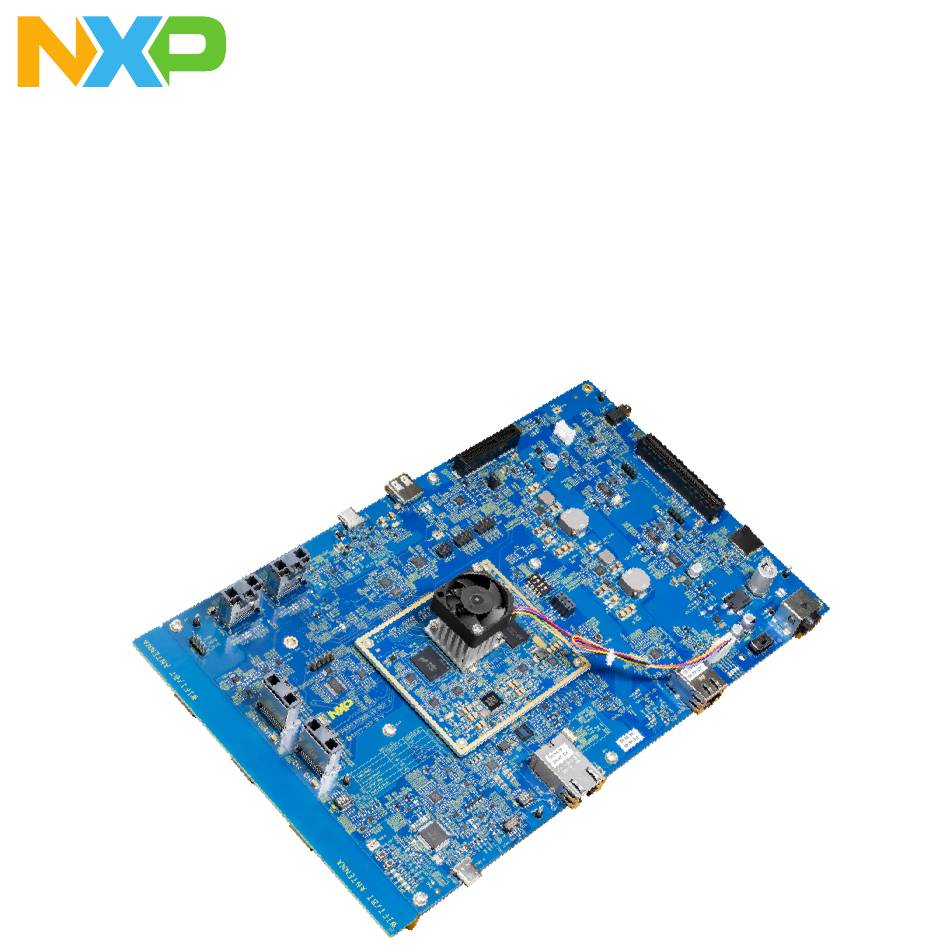

About the i.MX 95 EVK This quick start guide for the i.MX 95 Evaluation Kit (EVK) explains how to set up and begin developing with the i.MX 95 applications processor and associated accessories. The i.MX 95 applications processor is ideal for machine learning, vision, advanced multimedia, industrial and IoT applications. - Page 3 Quick Start Guide i.MX 95 Applications Processor Get to know the iMX95LPD5EVK-19CM USB2.0 A USB2.0 A PCIe x4 slot PCIe x4 slot MIPI MIPI MIPI CSI MIPI CSI DSI/CSI DSI/CSI USB3.0/2.0 C USB3.0/2.0 C PDM MIC PDM MIC Audio jack Audio jack M.2 slot M.2 slot...
- Page 4 Get to know the iMX95LPD5EVK-19CM continued M.2 slot (E-KEY) M.2 slot (E-KEY) LVDS Ethernet Connector for Ethernet Connector for TJA1120/TJA1103 Cards TJA1120/TJA1103 Cards Figure 2: Back view IMX95LPD5EVK-19CM board...
-
Page 5: Getting Started
Quick Start Guide i.MX 95 Applications Processor Getting started 1. Unpack the kit The IMX95LPD5EVK-19CM is shipped with the items listed in Table 1. Table 1: Kit contents Item Description iMX95LPD5EVK-19CM i.MX 95 19X19 EVK board (SOM+BB) Power supply AC/DC adapter, 12v / 13.33A, 160W USB type-c cable 2x USB cable, USB 3.0 A/M to type c cable, 1M M.2 module... - Page 6 Getting started continued 2. Prepare accessories The following items in Table 2 are recommended to run the IMX95LPD5EVK-19CM. Table 2: Customer-supplied accessories Item Description IMX-AUD-IO iMX 8 Series legacy general auto audio card with PCIe x8 connector IMX-MIPI-HDMI MIPI-DSI to HDMI adapter board MX9-DSI-OLED MIPI to OLED convert board and OLED panel (6.39'', 1080 x 2340) IMX95-OS08A20...
- Page 7 Quick Start Guide i.MX 95 Applications Processor Getting started continued 3. Download software and tools Installation software and documentation are available at www.nxp.com/imx95. The following are available on the website: Table 3: Software and tools Item Description • Schematics, layout and Gerber files •...
-
Page 8: Connect Mouse
Setting up the system The following will describe how to run this will be used as A55 and M33 core the pre-loaded Linux image on the system debugging. IMX95LPD5EVK-19CM (i.MX 95). Open the terminal window (i.e., Hyper Terminal or Tera Term), choose the Confirm boot right COM port number and apply the switches... -
Page 9: Connect Power Supply
Quick Start Guide i.MX 95 Applications Processor Step-by-step instructions continued Board Connect power boot up supply As the board boots up, you will see Connect the AC/DC power adapter penguins appear in the upper left-hand to J5, then power up the board by corner of the monitor, and then you SW4 switch. -
Page 10: Additional Information
Additional information Boot switches SW7[1-4] is the boot configuration switch, the default boot device is eMMC/uSDHC1, as shown in Table 4. If you want to try other boot devices, you need to change the boot switches to corresponding values as listed in Table 4. Table 4: Boot device settings Boot mode SW7-1... - Page 11 Quick Start Guide i.MX 95 Applications Processor Additional information continued MX9-DSI-OLED MX95MBCAM10001 MIPI to OLED convert board+Panel OX03C10 2MP sensor+ Maxim Serializer (USMP_A064_1080x2340) MX95MBDES10001 IMX95-OS08A20 Maxim Quad De-serializer Board convert board, 4K-MIPI-CMOS-CAMERA-MODULE support up to 4x MX95MBCAM10001 modules...
-
Page 12: Warranty
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
