- Page 1 QUICK START GUIDE i.MX 8M PLUS PEVK i.MX 8M PLUS PEVK...
-
Page 2: Compute Module

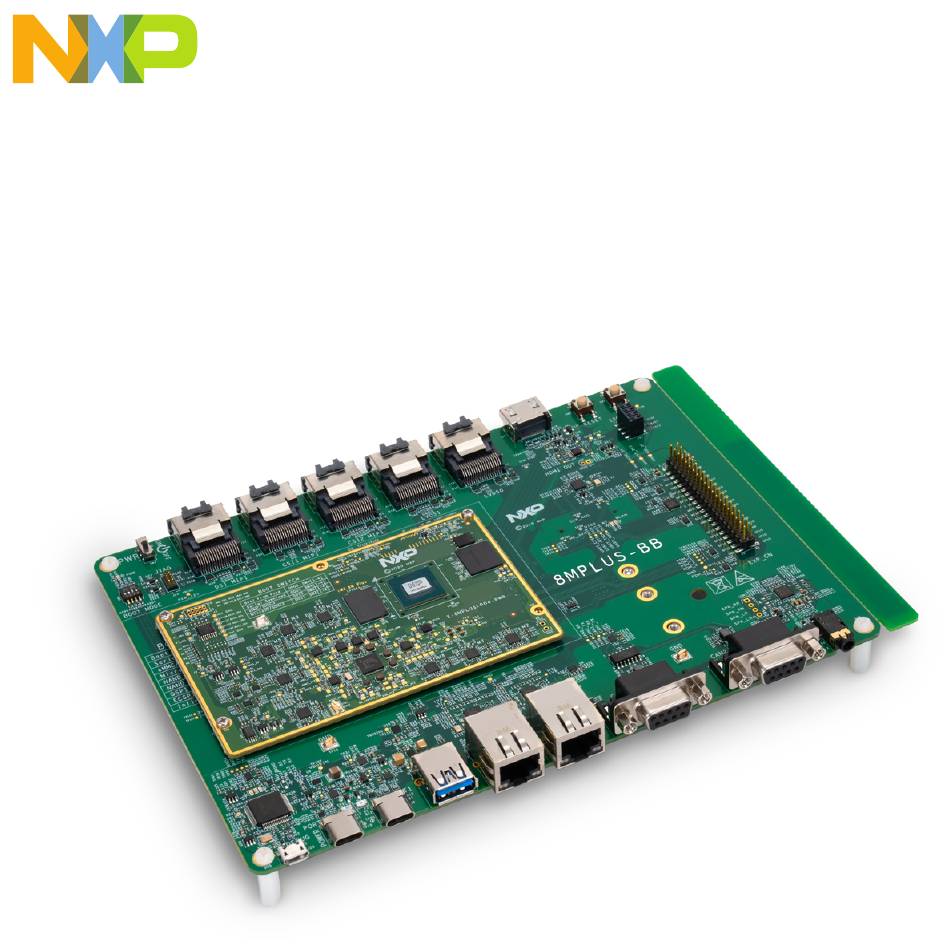

Elevating edge intelligence, i.MX 8M Plus processors are the solid foundation for smart homes to smart cities, Industry 4.0 and beyond. The i.MX 8M Plus PEVK offers all the functionalities of the i.MX 8M Plus EVK (8MPLUSLPD4-EVK) and additionally, the ability to measure power consumed by the supply rails of i.MX 8M Plus. - Page 3 Baseboard Baseboard Headset Headset Micro USB Micro USB Debug Port Debug Port Type-C Port1 USB Type-C Type-A Ethernet CAN Bus Port0 Port2 USB RJ45 x2 DB9 x2 Power 3.0 Host Supply Figure 1: Top view i.MX 8M Plus PEVK board...
- Page 4 MicroSD Card MicroSD Card M.2 Key-E Slot M.2 Key-E Slot Wi-Fi Wi-Fi /Bluetooth /Bluetooth ® ® ® ® Module Module Wi-Fi/Bluetooth Wi-Fi/Bluetooth Antenna Antenna Figure 2: Back view i.MX 8M Plus PEVK board Figure 3: i.MX 8M Plus PEVK without heatsink...
-
Page 5: Getting Started
QUICK START GUIDE i.MX 8M PLUS PEVK GETTING STARTED Unpack the Kit Prepare Accessories The i.MX 8M Plus PWR EVK The following items in Table 2 are (8MPLUSLPD4-PEVK) is shipped with the recommended to run the i.MX 8M Plus items listed in Table 1. Ensure the items PEVK. - Page 6 The following are available on the website: Table 3 Software and Tools ITEM DESCRIPTION Documentation • Schematics,layout and Gerber files • i.MX 8M Plus PEVK Board Hardware User’s Guide • Quick Start Guide • Hardware Design Guide • Power Consumption Measurement Software Linux BSPs, Android BSPs...
-
Page 7: Setting Up The System
QUICK START GUIDE i.MX 8M PLUS PEVK SETTING UP THE SYSTEM The following will describe how to run on “Enhanced COM port,” which can be the pre-loaded Linux image on the i.MX found in “Device Manager” of the PC. 8M Plus PEVK. - Page 8 SETTING UP THE SYSTEM CONTINUED Running Connect Mouse Open terminal or command prompt/ Connect the mouse to the USB host PowerShell on the PC, change directory connector J7. to the location of BCU files, and then Connect Power use below command to monitor voltage/ Supply current/power for each rail: For Linux:...
-
Page 9: Additional Information
QUICK START GUIDE i.MX 8M PLUS PEVK ADDITIONAL INFORMATION Boot Switches SW4[1-4] is the boot configuration switch, the default boot device is eMMC/uSDHC3, as shown in Table 4. If you want to try other boot devices, you need to change the boot switches to corresponding values as listed in Table 4. - Page 10 ADDITIONAL INFORMATION CONTINUED Do More with Accessory Boards MX8-DSI-OLED1/MX8-DSI-OLED1A: MINISASTOCSI: MIPI-DSI 1080P OLED DISPLAY MIPI-CSI CAMERA MODULE Use this OLED display for display and touchscreen Use this MIPI-CSI camera module for machine vision, video support. streaming and recording. IMX-MIPI-HDMI IMX-LVDS-HDMI MIPI-DSI to HDMI adapter card (Mini SAS) to connect LVDS-to-HDMI converter adapter card (Mini SAS) to connect MIPI DSI output to HDMI (Color may vary)
-
Page 11: Warranty
QUICK START GUIDE i.MX 8M PLUS PEVK ADDITIONAL INFORMATION CONTINUED BASLER ADD-ON CAMERA KIT: 4KP30 MIPI-CSI CAMERA MODULE Use this Basler add-on camera kit for up to 4Kp30 machine vision support on EVK. More information can be found at: www.baslerweb.com/imx8mplus. - Page 12 Bluetooth SIG, Inc. ® and any use of such marks by NXP Semiconductors is under license. Windows is a registered trademark of the Microsoft Corporation. Arm and Cortex are trademarks or registered trademarks of Arm Limited (or its subsidiaries) in the US and/or elsewhere.
