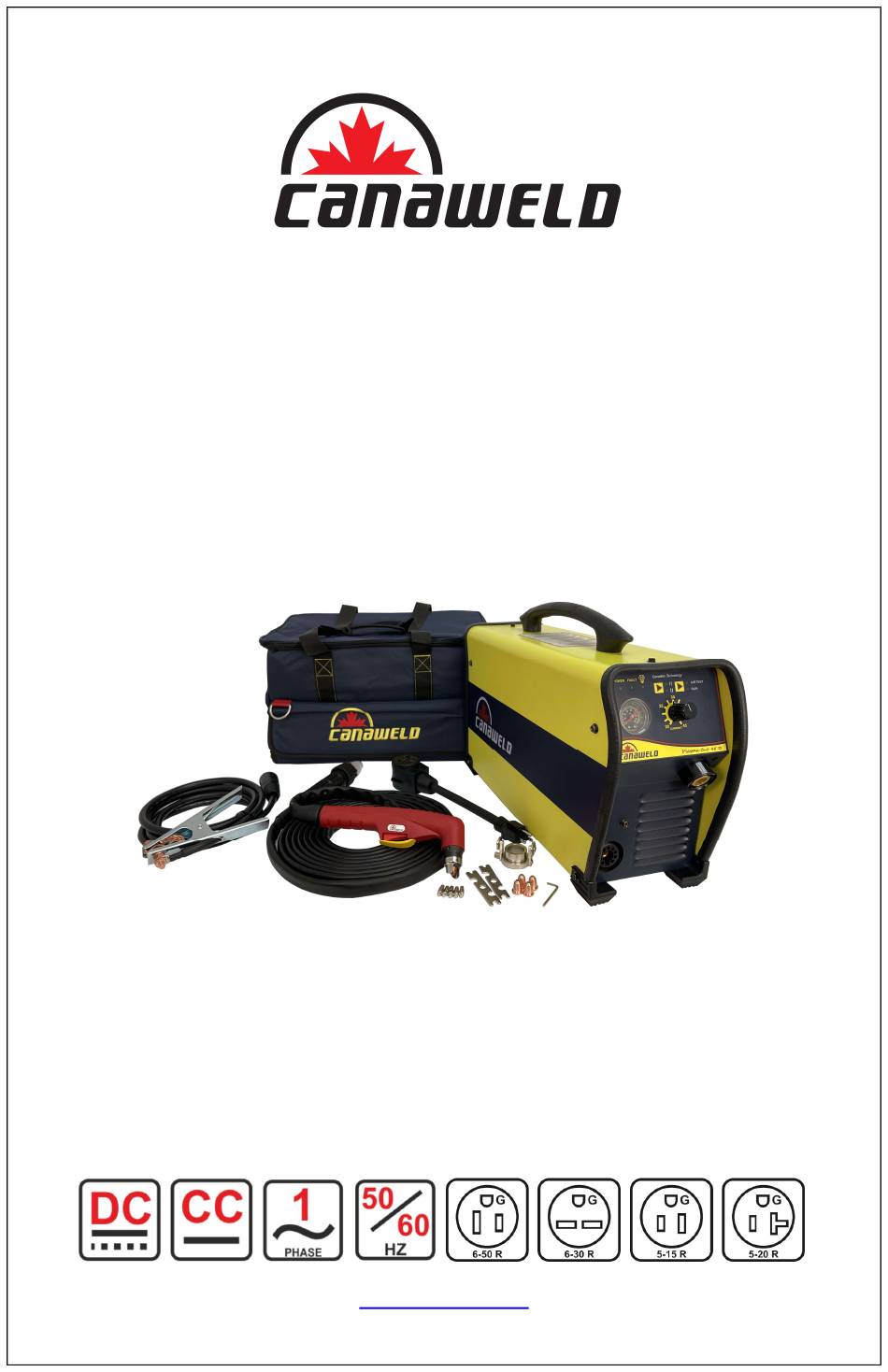

- Page 1 Welding & Cutting Equipment Manufacturer Plasma Cut 45 D Owner’s Manual www.canaweld.com...
- Page 2 Note: __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ Welding & Cutting Equipment Manufacturer 155 Drumlin Circle, Unit 1 Vaughan, Ontario, Canada L4K 3E7 T: +1(416)548-5650 F: +1(416)548-5651...
- Page 3 They have filed countless patents and set new standards in the welding industry. For over a decade the founders of Canaweld, have been members of the Technical Committee (TC 26) of the International Electro-technical Commission (IEC). IEC is the world’s leading organization on international standards for all electrical, electronic, and related technologies.
-
Page 4: Table Of Contents
Table of Contents Sec on 1 Safety precau ons & Symbols (English) ........6 1.1 General Safety Precautions ................6 1.2 Safety Precautions & Symbols .................6 1.3 Important Safety Precautions ................ 10 1.4 Minimizing EMF (Electrical and Magnetic Fields) Exposure from the Welding / Cutting Circuit. - Page 5 Sec on 5 Troubleshoo ng ..............47 5.1 Power Supply Troubleshooting ..............47 5.2 Wiring Diagram ..................... 56 Sec on 6 Spare Parts ................57 6.1 Plasma Cut 45 D Spare Parts ................57 6.2 Plasma Torch Consumables, Spare Parts, and Information ......59...
-
Page 6: Sec On 1 Safety Precau Ons & Symbols (English)
To keep yourself and others safe, read, obey, and save these critical safety warnings and operating instructions. You are entirely responsible for the Product's safe operation. Canaweld does not and cannot give any assurances or warranties about the product's safety in your environment. - Page 7 Inspect the input power cable and ground conductor on a regular basis for aging or bare wiring; repair promptly if damaged; bare wiring can kill. When not in use, turn off all equipment. Do not utilize cables that are worn, broken, undersized, or repaired. Avoid wrapping the torch cable around your body. If codes demand it, connect the workpiece to a good electrical (earth) ground.
- Page 8 EXPLODING HYDROGEN hazard while cutting water touching the aluminum Free hydrogen gas, which is highly flammable, may gather under the workpiece while cutting aluminum underwater or with the water touching the metal. Do not cut aluminum alloys underwater or on a water table unless you can prevent hydrogen gas collection. In the presence of water, never cut aluminum-lithium alloys.
- Page 9 WELDING/CUTTING RAYS HAZARD The visible and invisible light (ultraviolet and infrared rays) produced by the welding or cutting process can burn the eyes and skin. Wear an appropriate welding helmet with suitably shaded filter lenses to protect your face and eyes from welding rays. Cover any exposed skin, arms, or neck.
-
Page 10: Important Safety Precautions
hands clear of the cutting path. Never, ever point the torch at yourself or others. Wear flame-resistant, long-lasting body protection (leather, heavy cotton, wool). Oil-free clothes, such as leather gloves, a thick shirt, cuffless pants, work shoes, and a hat, are all recommended for body protection. Keep the torch away from your body and always point it toward the workpiece when pressing the torch trigger. -
Page 11: Minimizing Emf (Electrical And Magnetic Fields) Exposure From The Welding / Cutting Circuit
1.4 Minimizing EMF (Electrical and Magnetic Fields) Exposure from the Welding / Cutting Circuit. Arc welding and related processes such as gouge, plasma arc cutting, and spot welding generate an EMF field surrounding the welding circuits. Some medical devices, such as pacemakers, can be affected by EMF. -
Page 12: Grounding Of Welding/Cutting Machines
1.5 Grounding of Welding/Cutting Machines: What is the Process of Electrical Grounding? In an electric circuit, there is an active wire that supplies power, a neutral wire that returns the current, and a 'grounding wire' that provides an additional path for the electrical current to safely return to the ground in the event of a short circuit. - Page 13 Precautions to prevent an electrical shock To reduce the extent of live parts, ensure that all cables are in good condition, with no bare insulation or frayed wires. Keep cables safe from vehicle traffic and other hazards so they don't get damaged, cut, or pinched. Check that the rod electrode holder is properly insulated.
- Page 14 Guide for Helmet Shade Number When cutting or watching, use face protection (helmet or shield) with appropriate filter glasses to protect your face and eyes from arc rays and sparks (see Safety Standards). The suggested colors in the table below are offered for the convenience of the operator. Minimum recommended* Process...
-
Page 15: Précautions De Sécurité Et Les Symboles (French)
1.6 Précautions de sécurité et les symboles (French) Mesures de sécurité generals Les utilisateurs d'équipement de soudage et de coupage au plasma Canaweld sont en fin de compte responsables de s'assurer que toute personne travaillant sur ou autour de l'équipement respecte toutes les mesures de sécurité. - Page 16 sous tension, ne retirez pas le capot de la machine et ne touchez pas les composants ou circuits électriques sans un gant isolant sec et approprié. Un équipement mal placé ou mal mis à la terre présente un risque. Les CHOCS ELECTRIQUES peuvent causer la mort ou des blessures graves. Ne pas entrer en contact avec des composants électriques actifs.
- Page 17 La découpe d'un plafond, d'un plancher, d'une cloison ou d'un mur peut provoquer un incendie du côté caché. Ne coupez pas sur des récipients remplis de combustible ou des récipients fermés tels que des réservoirs, des fûts ou des canalisations, à moins qu'ils n'aient été préparés de manière adéquate conformément aux normes de sécurité...
- Page 18 RISQUE DE GAZ ET DE FUMÉES DANGEREUX Le soudage et le coupage de métaux revêtus, comme l'acier inoxydable, ne sont pas autorisés, à moins que le revêtement n'ait été retiré de la zone de soudage ou de coupage, et que la zone soit bien ventilée et qu'un masque respiratoire à adduction d'air soit également utilisé.
- Page 19 RISQUE D'EXPOSITION À DES PIÈCES EN MOUVEMENT Les machines de soudage/coupage typiques peuvent comprendre plusieurs éléments mobiles, tels que des rouleaux et des ventilateurs. Les mains doivent être tenues à l'écart des éléments mobiles comme les ventilateurs. Gardez une distance de sécurité avec les pièces en mouvement.
- Page 20 Les champs électromagnétiques peuvent provoquer des défaillances dans les appareils électriques tels que les stimulateurs cardiaques. Des champs électromagnétiques se forment pendant le soudage ou le découpage, ce qui peut provoquer des défaillances dans les composants électriques ou les dispositifs médicaux implantés dans la zone environnante.
- Page 21 Minimiser l'exposition CEM (champs électriques et magnétiques) du circuit de soudage / coupage. Le soudage à l'arc et les procédés connexes tels que le découpage à la gouge, le découpage au plasma et le soudage par points génèrent un champ électromagnétique autour des circuits de soudage. Certains dispositifs médicaux, comme les stimulateurs cardiaques, peuvent être affectés par les CEM.
-
Page 22: Warning Label
1.7 Warning Label This power supply has this warning notice attached to it. It is critical that the operator and maintenance professional comprehend the meaning of these warning symbols. -
Page 24: Section 2 Introduction Of The Machine
2.1 Description of the Machine The Plasma Cut 45 D Series is a powerful and portable Plasma cutting machine. This unit can clean cut 5/8-inch (16mm) thick steel and its steel severance cutting thickness is cut up to 1” (25.4mm). It’s powerful, lightweight design and dual voltage capability makes it perfect for use with a generator or in the shop. -
Page 25: Volt-Ampere Characteristic (Static Characteristic)
Cuttable Materials Plasma Cut 45 D is suitable for all-positions cutting for various plates and profiles. Cuttable materials are Steel, Stainless Steel, Aluminum, Chrome Moly, Titanium, Copper, Brass, and the alloys. Area of Usage Plasma Cut 45 D is a portable machine and can be used in: Aerospace, Aluminum Industries, Automotive... -
Page 26: Duty Cycle
2.3 Duty Cycle Duty Cycle is a number (in percentage) to determine how much the machine can run continuously or at a specific cycle without a problem. The duration of a complete cycle is 10 minutes. (Operating Time in below example). For example, in the case of a duty cycle of 75%, a continuous load period of 7.5 minutes is followed by a no-load period of 2.5 minutes. -
Page 27: Cutting Charts
2.4 Cutting Charts All cutting chart data is practically collected under laboratory test settings using new consumables. Cutting charts are a useful starting point for adjusting the cutting factors. Change the settings to get the best results. -
Page 28: Specifications
19 x 7 x 13.5 in. (485 x 180 x 345 mm) NOTE: • CANAWELD is always striving to produce the best possible products and improving the quality. Therefore, reserves the right to change, improve or revise the specifications or design of this or any product without prior notice. -
Page 29: Section 3 Installation Of The Machine
Section 3 Installation of the Machine 3.1 Introduction to Plasma Plasma Cutting Process Plasma is a gas that has been heated to an extremely high temperature and ionized, making it conductive. The plasma arc cutting process uses this plasma to transfer the arc to the workpiece. The metal to be cut is melted and blown off by the heat of the arc. -
Page 30: Panels And Parts Description
3.2 Panels and Parts Description Control and Rear Side Panel POWER LED Indicator LED indicator for Overheat and Under pressure Fault. TORCH MALFUNCTION LED Indicator LED indicator for 2T Mode LED indicator for 4T Mode CUTTING MODE LED indicator AIR TEST LED Indicator... -
Page 31: Considerations Of Connection The Machine To The Input Supply Network
3.3 Considerations of Connection the Machine to the Input Supply Network Machine Connection to Input Supply Network Plasma Cut 45 D cutting machines can be connected to 115V or 230V. Please note that, before connecting electricity, check the voltage of the network. -
Page 32: Table Of Cable, Extension Cable And Ground Cable Size
Recommended Normal Operating Fuse or cycle must be selected according to National/Local Codes Equivalent Circuit Breaker Rating (Maximum) Plasma Cut 45 D rating plate information. Recommended Cord Size (Minimum) 10 AWG 10 AWG Recommended Extension Cord Length 50 ft... -
Page 33: Improving The Input Supply Network
Improving the Input Supply Network In case the input supply voltage network is not stable, improve it, if possible, Such as: Reduce the number of powerful electrical devices operating simultaneously, using the same power supply. Increase the cross section of the power supply cable in the event of a significant voltage drop. Consult an electrician for the cable cross section calculation. -
Page 34: Connection To Generator
Do not expose the device to direct sunlight as it will increase internal temperature and reduce duty cycle. Keep the machine dry and store or use it in a dry place that is not affected by the weather conditions. Do not use the plasma cutting machine in areas with excessive dust or corrosive gas in the air or in high concentration environments. -
Page 35: Installation And Operation Method
3.4 Installation and Operation Method Installation Input cable connection Each machine comes with a suitable voltage connector plug. The power cord must be connected to the correct power supply for each plug. 115V uses the pigtail adapter plug accessory; 230V uses the plug which is already connected at the end of the power cord. -
Page 36: Before Starting The Machine
INTERNAL AIR PRESSURE REDUCER VALVE The internal filter & air/gas pressure reducer valve is factory set when leaving the factory, operators do not need to set it by themselves. Before Starting the Machine Double Check the following: Check the adaptation of power supply, fuse, power cables and switches to the machine ratings information. -
Page 37: Operation
Operation 1. Turn on the machine power switch, then the power indicator should illuminate. 2. Press the upper right button on the front panel to select the air test position to check the air flow, check the air pressure displayed on the gauge, it must be between 65 psi to 75 psi (4.5 bar to 5 bar / 450 kPa to 500 kPa). -
Page 38: Practical Information
Note: It is recommended not to ignite the arc in the air if not necessary. It will shorten the lifespan of the electrode and nozzle of the torch. Try to initiate the cutting from the edge of the workpiece unless piercing is needed. Pay attention to the spatters / sparks while cutting. - Page 39 External Gas/Air Filtration Many common problems with Plasma Cut 45 D systems are caused by dirty, oily air. Although the power supply includes an air filter, maintaining a clean and dry gas / airline is critical for preventing oil, water, dirt, and other contaminants from entering the plasma cutting system and causing damage to its internal components, as well as achieving optimal cutting quality and consumable lifespan.
- Page 40 Guidelines for hand torch cutting To maintain a uniform cut, lightly drag the tip of the torch along the workpiece. Optional torch guide wheel spacer prevents the torch tip sticking to the workpiece. The torch head (and torch tip) must be held up 90 ° to the cutting surface and the cutting arc must be monitored during the cutting process.
- Page 41 Pierce start The pierce start often leads to rapid consumable wear and excess blowback of molten metal deposited on torches and consumables. This should be done if necessary. A. Tilt the torch in the direction of travel or toward the side of the metal to be discarded or wasted at 40 to 60 angles.
-
Page 42: Cutting Process And Quality
3.5 Cutting process and quality Cut quality Requirements of cut quality vary by application. For example, when aiming for a high-quality finish cut, a dross-free cut is important to avoid another cleaning operation, or when welding a surface after cutting, nitride accumulation and bevel can be important considerations. - Page 43 Straightness of the cut surface: The cut surface is concave or convex. Kerf width: The width of removed metal Surface Condition: The surface condition is the desired condition of the final cut surface (smooth or rough). The presence of nitrogen in the plasma gas stream can cause nitrides to deposit on the cut surface.
-
Page 44: Consumable Life
Top spatter dross Top spatter dross is an accumulation of resolidified metal along the top of the cut piece which is usually easy to remove. Most often, it is due to worn nozzles, high speed of the plasma torch, or long arc length. When the plasma jet swirls, molten material is flung out in front of the kerf rather than down through it. -
Page 45: Section 4 Maintenance Of The Machine
Section 4 Maintenance of the Machine WARNING: Always disconnect the machine power source before doing any maintenance to avoid personal injury accidents such as electric shock and burns. By following proper maintenance procedures, a cutting machine can operate safely and reliably for a long time. 4.1 Grounding Maintenance Why test ground systems? Over time, corrosive soils with high moisture content, high salt content, and high temperatures can... -
Page 46: Regular Maintenance Planning
If the difference is significant, the Inspection machine must be calibrated. The value of the parameters can be measured by a calibrated instrument. Note: Only professional service personnel authorized by Canaweld may service the machine! -
Page 47: Section 5 Troubleshooting
5.1 Power Supply Troubleshooting Note: Only professional service personnel authorized by Canaweld may service the machine! If there is a problem and you can’t find the authorized professional maintenance personnel, please contact the local agent or the company branch. If there are some simple machine troubles, you can use the following information from the below table. - Page 48 Remplacez la buse de protection s’il y a trop de projections dessus. Faulty components in unit Contact Canaweld Service Center. Allow the device to cool down for at least 6 Power Supply is overheated. minutes. Make sure the device is not operating beyond the duty cycle limit.
- Page 49 Verify that the installation of consumables is correct. tools tighten consumables. Worn, over-tightened or wrong If consumables, including swirl rings, are consumables worn or damaged, inspect and replace. Always replace the nozzle and electrode together. Make sure the Earth clamp connection is Poor Earth clamp connection.
- Page 50 Improper flow rate or Gas/Air Check gas/air supply hose and the pressure pressure. Check gas/air for any contamination, Impurity, or moisture in Air/Gas moisture, or impurities. Use an additional gas/air filter if there is contamination in it. The start of piercing is only permitted on workpieces with a thickness of less than Consumable The thickness of the piercing...
- Page 51 Verify that the installation of consumables is correct. tools tighten consumables. Worn, over-tightened or wrong If consumables, including swirl rings, are consumables worn or damaged, inspect and replace. Always replace the nozzle and electrode together. Ensure the Earth clamp is properly connected to the clean and dry workpiece Poor Earth clamp or torch...
- Page 52 Improper flow rate or Gas/Air Check gas/air supply hose and the pressure pressure. “Low speed dross” is present on the bottom of Check gas/air for any contamination, Impurity, or moisture in Air/Gas moisture, or impurities. Use an additional the cut. gas/air filter if there is contamination in it.
- Page 53 Travel speed too low Increase travel speed If consumables, including swirl rings, are Worn, over-tightened or wrong worn or damaged, inspect and replace. consumables Always replace the nozzle and electrode During cutting, together. the plasma arc turns on / off. Ensure the Earth clamp is properly connected to the clean and dry workpiece Poor Earth clamp or torch...
- Page 54 Always replace the nozzle and electrode together. Faulty components in power Contact Canaweld Service Center. supply. Ensure the Earth clamp is properly connected to the clean and dry workpiece Poor Earth clamp or torch area.
- Page 55 Correct the height of the torch from the Improper torch height workpiece. Ensure the Earth clamp is properly connected to the clean and dry workpiece area. Remove rust, paint, and other Poor Earth clamp connection. residues to ensure good contact between the metals.
-
Page 56: Wiring Diagram
5.2 Wiring Diagram... -
Page 57: Section 6 Spare Parts
Section 6 Spare Parts Attention: ALL TIMES USE ORIGINAL AND THE RECOMMENDED SPARE PARTS 6.1 Plasma Cut 45 D Spare Parts Name Unit Part No. Knob & Cap, Black CGB1880147 machine feet Left CGA6380194 machine feet Right CGA6380195 Gland PG21 black... - Page 58 Earth Clamp, 200A ALP1980449 Male Cable Plug CWMC3570 35-50 Welding connector Female Fix 35-70 CWFF3570 Type welding cable 4 meter CGBAWG4-19 AWG (20 mm2) PLASMA TORCH CWIVT03033 CPYI40-6M Adapter Plug CGA9980060 230-120V 1/4" ARGON HOSE TLJ1080189 Notes:...
-
Page 59: Plasma Torch Consumables, Spare Parts, And Information
6.2 Plasma Torch Consumables, Spare Parts, and Information CPTI40 SPARE PARTS Item no. Description Part No. DOUBLE POINTED SPACER CWISM0098-01 OUTSIDE NOZZLE 6 HOLES Bakelite CWIVS0661-03 OUTSIDE NOZZLE 6 HOLES Fiber Glass CWIVS1661-05 OUTSIDE NOZZLE 4 HOLES Fiber Glass CWIVS1685-05 TIP 0.6mm (for 20-30A Cutting Amperage) CWIVU0661-06 TIP 0.8mm (for 30-40A Cutting Amperage) - Page 60 Notes: Welding & Cutting Equipment Manufacturer Unit 1, 155 Drumlin Circle Vaughan, ON, L4K 3E7, Canada Tel. +1(416)548-5650 Fax. +1(416)548-5651 Email: info@canaweld.com © 2022 Canaweld Inc.
