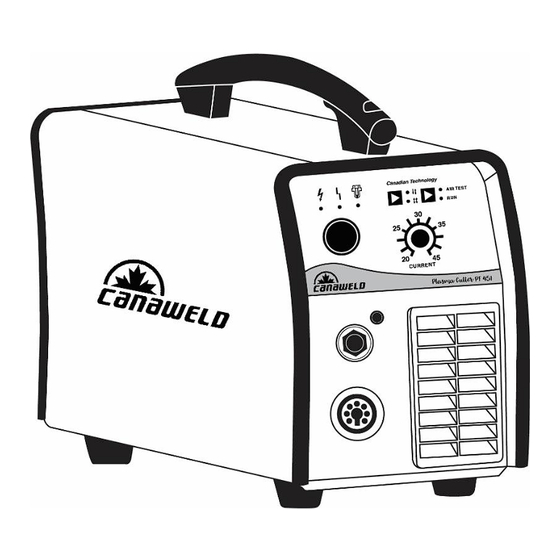

  • Page 1 User Manual Model: Plasma Cut 45 D...
  • Page 2 Our engineers are continuously working on new equipment to release new models on a regular basis as well as to upgrade our existing line of machines. Canaweld, is in partnership with some of the best European welding and cutting equipment manufacturers, to distribute their machines to the North American market.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Table of Contents SECTION 1- SAFETY CAUTIONS & SYMBOLS ....................5 SECTION 2 - Installation and Overview ......................9 SECTION 3 – OPERATION OF EQUIPMENT ....................11 SECTION 4 - MAINTENANCE ........................14 SECTION 5 - ELECTRICAL SPECIFICATIONS, DIMENSIONS & WEIGHT ............16 SECTION 6 - SPARE PARTS ..........................
  • Page 4 Plasma Cut 45 D - Package Name Product Number Quantity Machine PLC2050525 Work/Ground Clamp Set ALP0580127 Plasma Cutter Torch TGF0180532 Canaweld Bag TGJ2780145 Gas Flow Meter Hose TLJ1080189...

  • Page 5: Section 1- Safety Cautions & Symbols

    SECTION 1- SAFETY CAUTIONS & SYMBOLS CAUTION: READ USER MANUAL Indicates any section that the user must read the manual to fully understand the machine’s characteristics to avoid any hazardous situation. ELECTRIC SHOCK Touching live electrical parts can cause fatal shocks or severe burns. The electrode and work circuit is electrically live whenever the output is on.
  • Page 6 WELDING FUMES Welding produces fumes and gases. Breathing these fumes and gases can be hazardous to your health. • Keep your head out of the fumes stream while welding. Do not breathe the fumes. • If inside, ventilate the area and/or use local forced ventilation at the welding point to remove welding fumes and gases.
  • Page 7 • Be alert that welding sparks and hot materials from welding can easily go through small cracks and openings to adjacent areas. Be aware that welding on a ceiling, floor, bulkhead, or partition can cause fire on the hidden side. •...
  • Page 8 GAS CYLINDER/LINE DAMAGE Shielding gas cylinders contain gas under high pressure. If damaged, a cylinder can explode. Since gas cylinders are normally part of the welding process, be sure to treat them carefully. • Protect compressed gas cylinders from excessive heat, mechanical shocks, physical damage, slag, open flames, sparks, and arcs.

  • Page 9: Section 2 - Installation And Overview

    SECTION 2 - Installation and Overview INSTALLATION ELECTRICAL • The serial number and rating information is located on the bottom of the machine. Use the rating labels to determine input power requirements and rated output. • Check whether the voltage value variations are within the acceptable working range with a multi-meter.
  • Page 10 OVERVIEW PRODUCT & DESIGN Digital plasma cutting machine with high performance advanced technology, the CUT45 is an ultra- portable plasma cutting system suitable for a variety of applications. It can be used in handheld cutting as well as robotic cutting. CUT45 can cut conductive metals such as low carbon steel, as well as stainless steel and aluminum.

  • Page 11: Section 3 - Operation Of Equipment

    SECTION 3 – OPERATION OF EQUIPMENT OPERATION METHOD • Turn on the power switch of the machine, the power indicator should illuminate. • Select proper working mode and proper function. There are two working modes available on the machine panel: 2T and 4T. There are two functions available: normal cutting and metal mesh cutting.
  • Page 12 • Connection of earth cable: Insert the quick plug on the ground cable into the output terminal “+” on the front panel of the machine, and tighten it clockwise. INTERNAL AIR PRESSURE REDUCER VALVE The internal filter & reducer valve is factory set when leaving factory, operators do not need to set it themselves.
  • Page 13 8. Gauge 9. Ground Connection 10. Torch Central Connector 11. Amperage Adjustment 12. Input Cable 13. ON/OFF Switch 14. Air/Gas Inlet port...

  • Page 14: Section 4 - Maintenance

    SECTION 4 - MAINTENANCE WARNING: Always disconnect the machine power source before doing any maintenance to avoid personal injury accidents such as electric shock and burns. TIPS • Inspect plasma torch tip consumables before using the machine each time to ensure proper function of the machine, replace worn / damaged parts as necessary.
  • Page 15 BASIC TROUBLESHOOTING PROBLEM POSSIBLE REASON SOLUTION The workpiece is not cut fully. The cutting current is too low. Increase the current. The cutting speed is too high. Decrease the cutting speed. The workpiece is too thick. Check that the thickness of your workpiece is not thicker than recommended cutting thickness.

  • Page 16: Section 5 - Electrical Specifications, Dimensions & Weight

    SECTION 5 - ELECTRICAL SPECIFICATIONS, DIMENSIONS & WEIGHT CANAWELD Inc. 155 Drumlin Circle , unit 1 , Vaughan , ON , Canada Made in Canada TYPE : PLASMA CUT 45 D Serial No: IEC 60974-1 Cutting output 230 V(-15%,+10%) 120 V(-15%,+10%)

  • Page 17: Section 6 - Spare Parts

    Schematic Diagram SECTION 6 - SPARE PARTS Name Part Number Cable CGB0380655 Gage TGJ1050231 Rubber Feet CGA6380191 Hose CGA7080130 Gas connector/Air Faucet CGA3180617 Quick Connector (Male) CGA3180116 Solenoid Valve CGB1096503 Filter Regulator CGB1080228 Mother Board Package CGC9180638 Gas Fitting T-Shaped (MALE) CGA3180561 Gas Fitting T-Shaped (FEMALE CGA3180562...

  • Page 18: Section 7 - Warranty And Service

    (the “Warranted Goods”) that such Warranted Goods will be free of defects in workmanship and material. This warranty is void if Canaweld Inc. or its Authorized Repair Centre finds that the equipment has been subjected to improper installation, improper care or abnormal operations. THE...
  • Page 19 (vii) gas nozzles, (viii) tips, (ix) gas lenses, (x) liners, and (xi) drive wheels. Canaweld Inc.’s liability under this warranty shall not exceed the cost of correcting the defect of the Warranted Goods or the cost of replacing them, whichever is less.
  • Page 20 NOTES...
  • Page 21 NOTES...
  • Page 22 NOTES...
  • Page 23 NOTES...
  • Page 24 155 Drumlin Circle, Unit 1 Vaughan, Ontario, Canada, L4K 3E7 T: 416-548-5650 F:416-548-5651 www.canaweld.com ©2016 Canaweld Inc. 2016-01...
