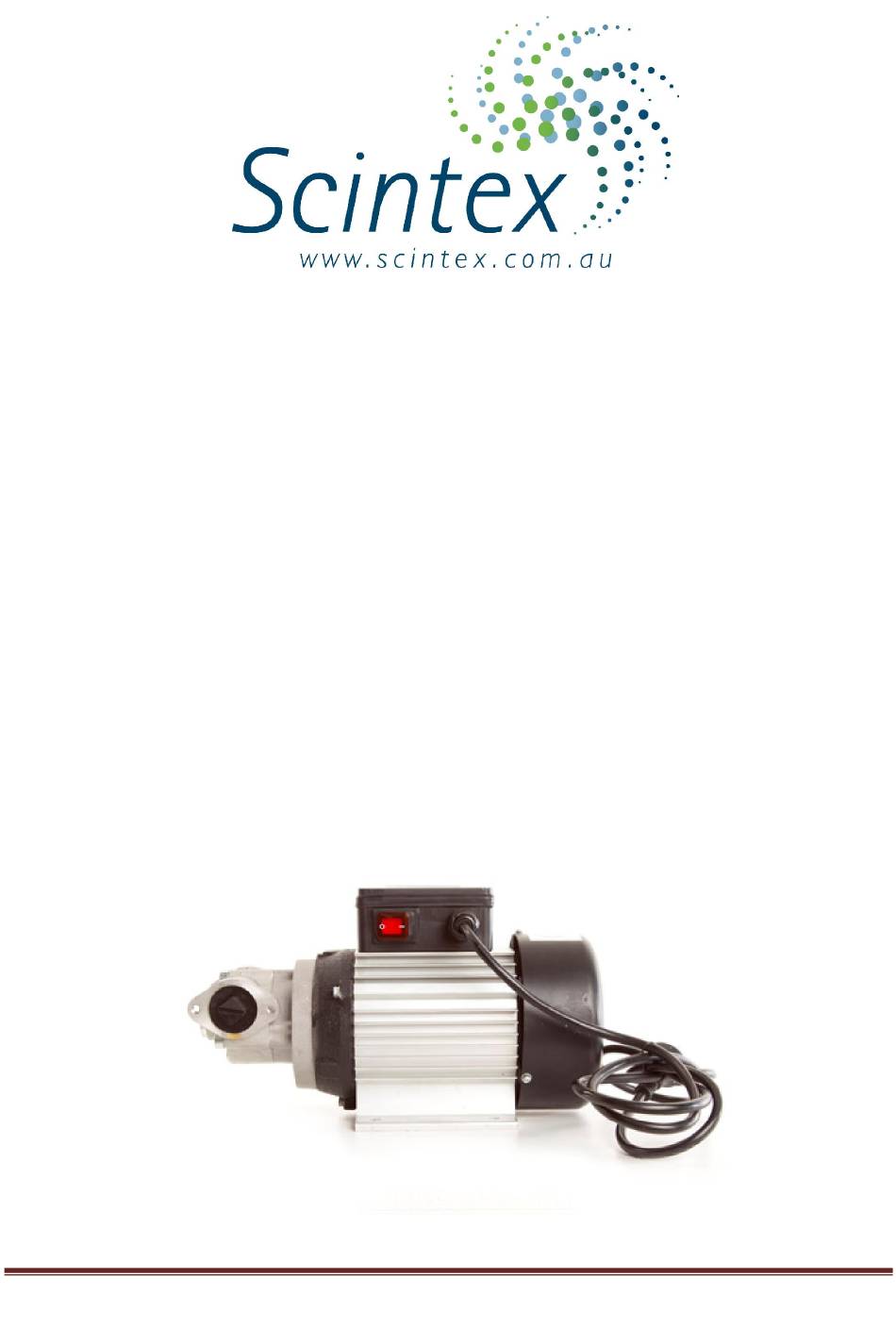

Pump Manual
Model Numbers:
SP240V57LPM
SP240V80LPM
SP240V120LPM
Product Names:
57 L/min - 240V Fuel Pump
80 L/min - 240V Fuel Pump
120 L/min - 240V Fuel Pump
Copyright: Scintex
|
Fuel Depot
2012
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP240V57LPM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SCINTEX SP240V57LPM

  • Page 1 Pump Manual Model Numbers: SP240V57LPM SP240V80LPM SP240V120LPM Product Names: 57 L/min - 240V Fuel Pump 80 L/min - 240V Fuel Pump 120 L/min - 240V Fuel Pump Copyright: Scintex Fuel Depot 2012 Page 1...
  • Page 2: Declaration Of Conformity

    PUMP: Self-priming, volumetric, rotating vane pump, equipped with by-pass valve. MOTOR: Asynchronous motor, single-phase, 2 pole, closed type (protection class IP55 in conformance with EN 60034-5-86 regulations) self-ventilated, directly flanged to the pump body. Copyright: Scintex Fuel Depot 2012 Page 2...
  • Page 3: Technical Data

    Functioning under by-pass conditions is only allowed for brief periods of time (2-3minutes maximum). D4. FLUIDS PERMITTED / FLUIDS NOT PERMITTED PERMITTED • DIESEL FUEL at a VISCOSITY from 2 to 5.35 cSt (at a temperature of 37.8 • Minimum Flash point (PM): 55 Copyright: Scintex Fuel Depot 2012 Page 3...
  • Page 4: Moving And Transport

    • Before connecting the delivery tube, partially fill the pump body with diesel fuel to facilitate priming. • Do not use conical threaded joints that could damage the threaded pump openings if excessively tightened. Copyright: Scintex Fuel Depot 2012...
  • Page 5 As we have said up to this point, it is important to guarantee low suction pressure by using short tubing of a Copyright: Scintex Fuel Depot...
  • Page 6: Initial Start-Up

    • That the suction filter is not clogged; • That the suction height does not exceed 2m. (if the height exceeds 2m, fill the suction hose with fluid); • That the delivery tube is allowing the evacuation of the air. Copyright: Scintex Fuel Depot 2012...
  • Page 7: Daily Use

    High loss of head in the delivery Use shorter tubing or of greater circuit (working with the by-pass diameter open) Dismantle the valve, clean and/or By-pass valve blocked replace it. Copyright: Scintex Fuel Depot 2012 Page 7...
  • Page 8: Maintenance

    1 meter from the electric pump. L. DISPOSING OF CONTAMINATED MATERIALS In the event of maintenance or demolition of the machine, do not disperse contaminated parts into the environment. Refer to local regulations for their proper disposal. Copyright: Scintex Fuel Depot 2012 Page 8...
  • Page 9 M. DIAGRAM AND PARTS LIST Copyright: Scintex Fuel Depot 2012 Page 9...
  • Page 10 O-RING BY PASS SPRING BY PASS VALVE SCREW M6 SCREW M6 PUMP BODY O-RING ROTOR BLADE SCREW M5 PIN 5 PUMP COVER TERMINAL BOARD DOUBLE-POLE SWITCH TERMINAL BASE MOTOR BEARING SEAL www.scintex.com.au www.thefueldepot.com.au Copyright: Scintex Fuel Depot 2012 Page 10...
