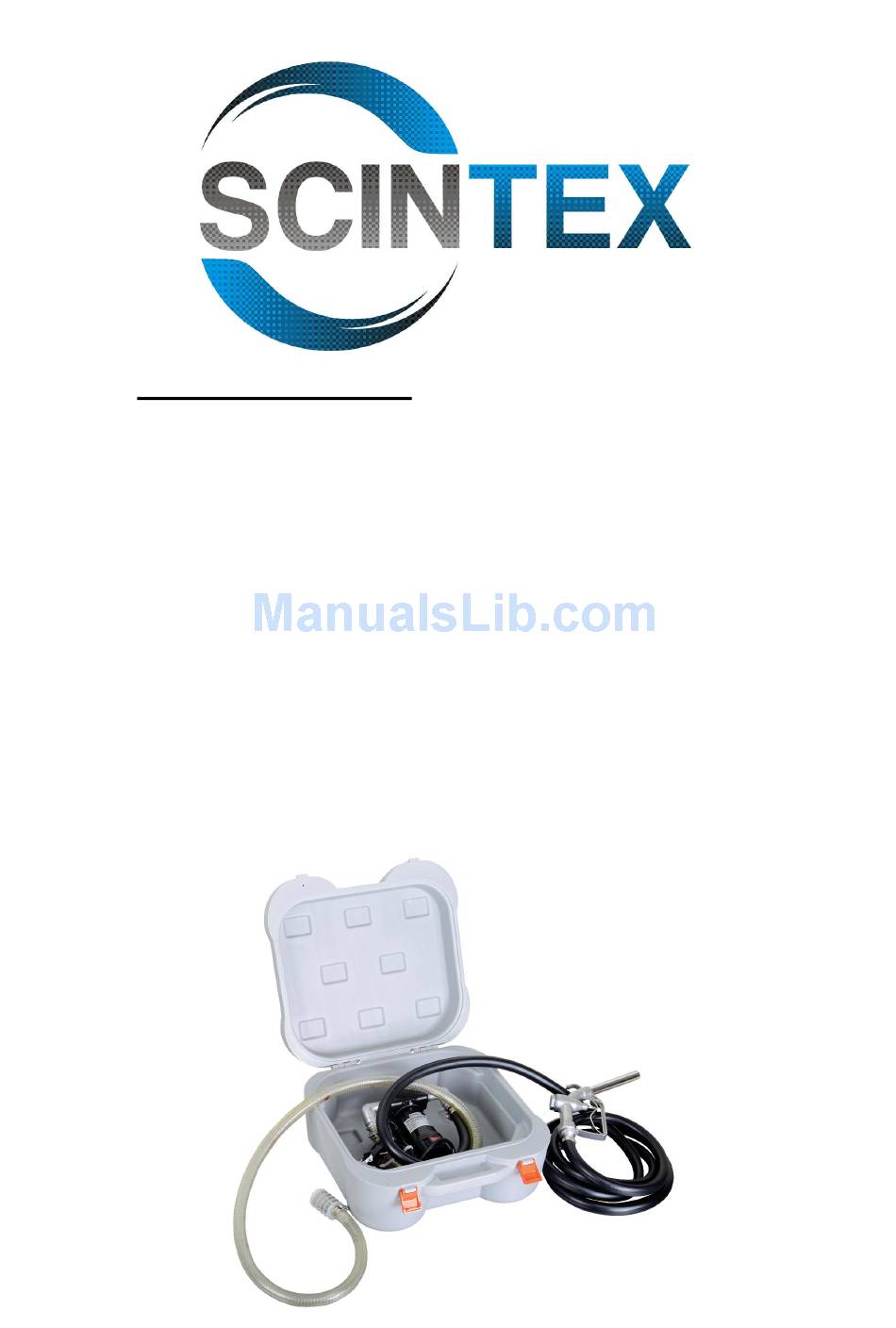

- Page 1 | sales@scintex.com.au Model: SPKP12V40 & SPKP24V40 Portable Diesel Transfer Pump Kit 12V & 24V DC User’s Manual 1 OF 4...
- Page 2 WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety instructions and other basic safety precautions may result in serious personal injury. A. DECLARATION OF CONFORMITY DECLARATION OF CONFORMITY IN CONFORMANCE WITH THE DIRECTIVES 98/37/EEC (MACHINERY • 97/23/EEC (PRESSURE VESSELS) 89/336/EEC (ELECTOR-MAGNETIC COMPATIBILITY) AND FURTHER MODIFICATIONS 2000/14 DIRECTIVE ON LIMITATION OF NOISE B.
- Page 3 C1. Electrical Data ELECTRICAL POWER FLOW RATE Kit Model PUMP MODEL FUSES Current Voltage(V) GPM/LPM SPKP12V40 SPT12V40LPM 10/40 SPKP24V40 SPT24V40LPM 10/40 D. OPERATING CONDITIONS Refer to pump manuals for SPT12V40LPM & SPT24V40LPM E. Installation and Operation The pump box includes 1pc DC pump, connecters, suction hose with filter, delivery hose and manual nozzle.
- Page 4 F. DIAGRAM AND PARTS LIST 1. MODELS: SPKP24V40 & SPKP24V40 Description QTY. Description QTY. PLASTIC BOX DELIVERY HOSES PUMP SUCTION HOSES SCREW NOZZLE 4 OF 4...
