Waterway CLEARWATER II FD12 Instructions

CLEARWATER II
D.E. FILTER
INSTRUCTIONS
1
1a
2
3
5
5a
Item Part No. Description
1 718-7251 Filter Locknut Assembly
1a 519-7451 Handle Assembly (2)
805-0460
2 Lid O-Ring
3 519-7601 Lid Handle
3a 819-9002 #12 x 3/4 S/S Phillips Head Screws
830-4000SS
4 Pressure Gauge
4a 805-0224 O-Ring - Air Relief
4b 519-7430 Gauge - Fitting Adapter
805-0117SD
4c O-Ring - Adapter
602-0200
5 Air Relief Plug
5a 805-0207 O-Ring - Air Relief
6 519-7411 Lid Assembly (Small)
519-7401
Lid Assembly (Large)
7 519-7441 Wing-Nut
8 500-7310 Screen/Sock Assembly
718-7210
9 Tie Nut – D.E.
9
11
12
3a
4
4a
4b
4c
6
7
19 (4)

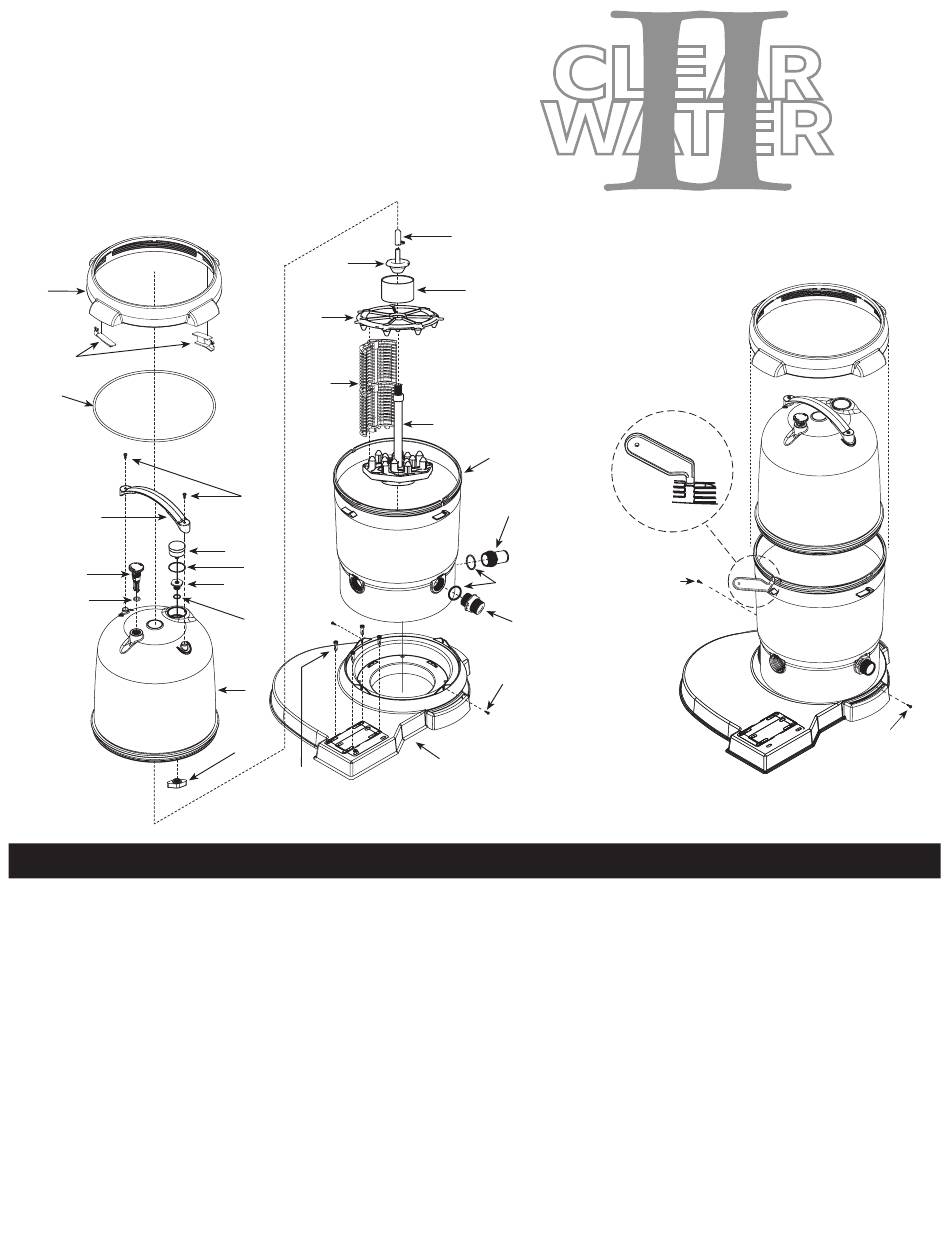

CLEARWATER II D.E. FILTER REPLACEMENT PARTS
CLEAR
WATER
8
10
13
14
16
15
17
18a (2)
18
Item Part No.
10 419-7241
11 519-7269
550-7210
12
550-7220
13 550-7100
550-7120
14 515-7251
14a 519-7470
805-0224
15
417-6241
16
17 500-5300
18 672-7401
819-0044
18a
19 429-7221
14a
18a
Description
Plug - 2 x 1 1/2 MPT
Locator – Top Grids – D.E.
Grids – 12 sq. ft. D.E. (7)
Grids – 18 sq. ft. D.E. (7)
Base Assembly – 12 sq. ft.
Base Assembly – 18 sq. ft.
Filter Body Bottom
Filter Wrench
O-Ring (2)
1 1/2 MPT x 1 1/2 Male Smooth Hose Adapter
Drain Assembly
ClearWater II Base
#10 x 1 S/S Phillips Head Screw (2)
Snap Pin (4)
