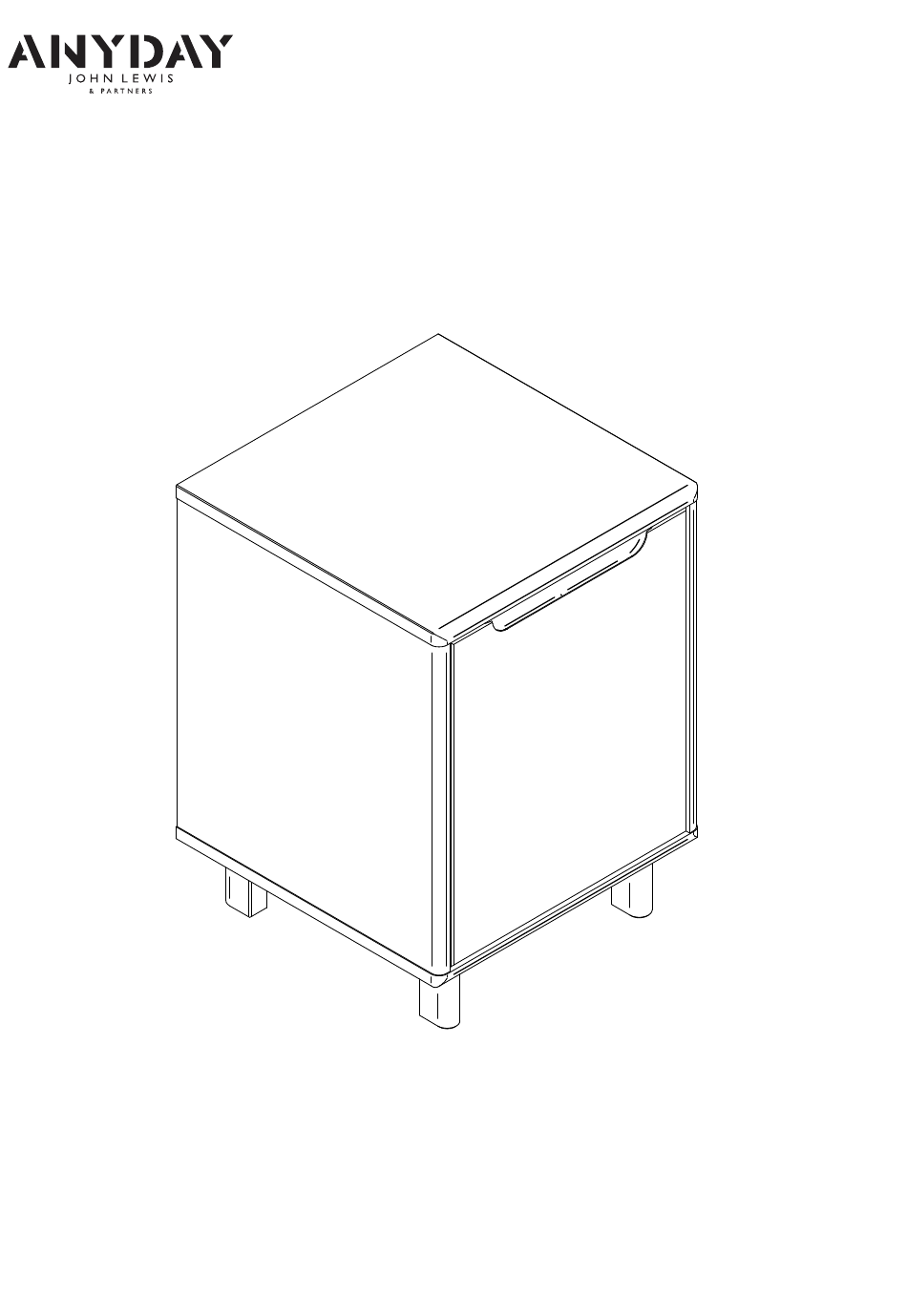

- Page 1 Anyday Format 1 Door Bedside Stock number: 80307701 / 80307706 H50 W36 D36cm...
- Page 2 At John Lewis and Partners we are committed to making great products, from our in-house design team to our buyers, we work together to bring great design to life.
- Page 3 0345 600 2389...
- Page 4 Your 1 door bedside Dimensions Description Stock number: Internal dimensions Bedside 1 door overall size Internal cabinet overall size: 360 x 360 x 35mm Top panel 390 x 359 x 15mm L/H side panel 390 x 359 x 15mm R/H side panel 360 x 360 x 45mm Base 326 x 320 x 15mm...
- Page 5 Fixtures and fittings Fixtures and fittings supplied (actual size) Dimension Description Fixtures and fittings supplied (not actual size) Description Dimension Shelf support 5 x 5mm 6 x 30mm Wooden dowels Screw M4 x 12mm Screw 5 x 50mm Screw 3 x 16mm Screw 3 x 12mm 3,5 x 12mm...
-
Page 6: Product Assembly
Product assembly Step 1 Step 2 Format 1 Door Bedside 80307701 / 80307706 Parts, fittings and tools Parts, fittings and tools Fit hinge plate inside the screw in hinge and fix the last screw as shown. Attention to the side of the door where you fix the hinges. This must be in accordance to the chosen side for opening/closing the door. - Page 7 Step 3 Step 4 Format 1 Door Bedside 80307701 / 80307706 Parts, fittings and tools When attaching the leg rails to the base you will notic e a small gap between the horizontal rail and the leg rail. This is to aid assembly and ensure the fit between the two rails is not so tight they damage one another during assembly.
- Page 8 Step 5 Step 6 Format 1 Door Bedside 80307701 / 80307706 Parts, fittings and tools Parts and fittings You can choose the opening side of the door of the bedside. Fix the metal plate (O) on the side that will open/close.
- Page 9 Step 7 Step 8 Format 1 Door Bedside 80307701 / 80307706 Parts, fittings and tools Parts, fittings and tools...
- Page 10 Step 9 Step 10 Format 1 Door Bedside 80307701 / 80307706 Parts Parts, fittings and tools Please Note: The door can be fitted to the left or right according to the direction you've chosen it to open.
- Page 11 Step 11 Step 12 Format 1 Door Bedside 80307701 / 80307706 Parts and fittings Not provided Parts, fittings and tools...
- Page 12 Adjusting your hinges Step 13 Format 1 Door Bedside 80307701 / 80307706 Parts, fittings and tools...
- Page 13 Warning Important: When drilling into the walls always check that there are no hidden wires or pipes etc. Types of walls 1. General Purpose wall plug 2. Plasterboard wall plug 3. Cavity Fixing wall plug 4. Cavity Fixing – Heavy Duty wall plug 5.
- Page 14 Safety instructions Your feedback is important to us and we would love to hear your comments on your new furniture. Please visit our website to leave a review. Thank you. John Lewis Partnership 171 Victoria Street London SWIE 5NN johnlewis.com The Anyday Format range combines two methods of painting: UV coating (ultraviolet) and PU (polyurethane) paint finish.
