RVM-1088L Mirror Dash Cam Quick Guide

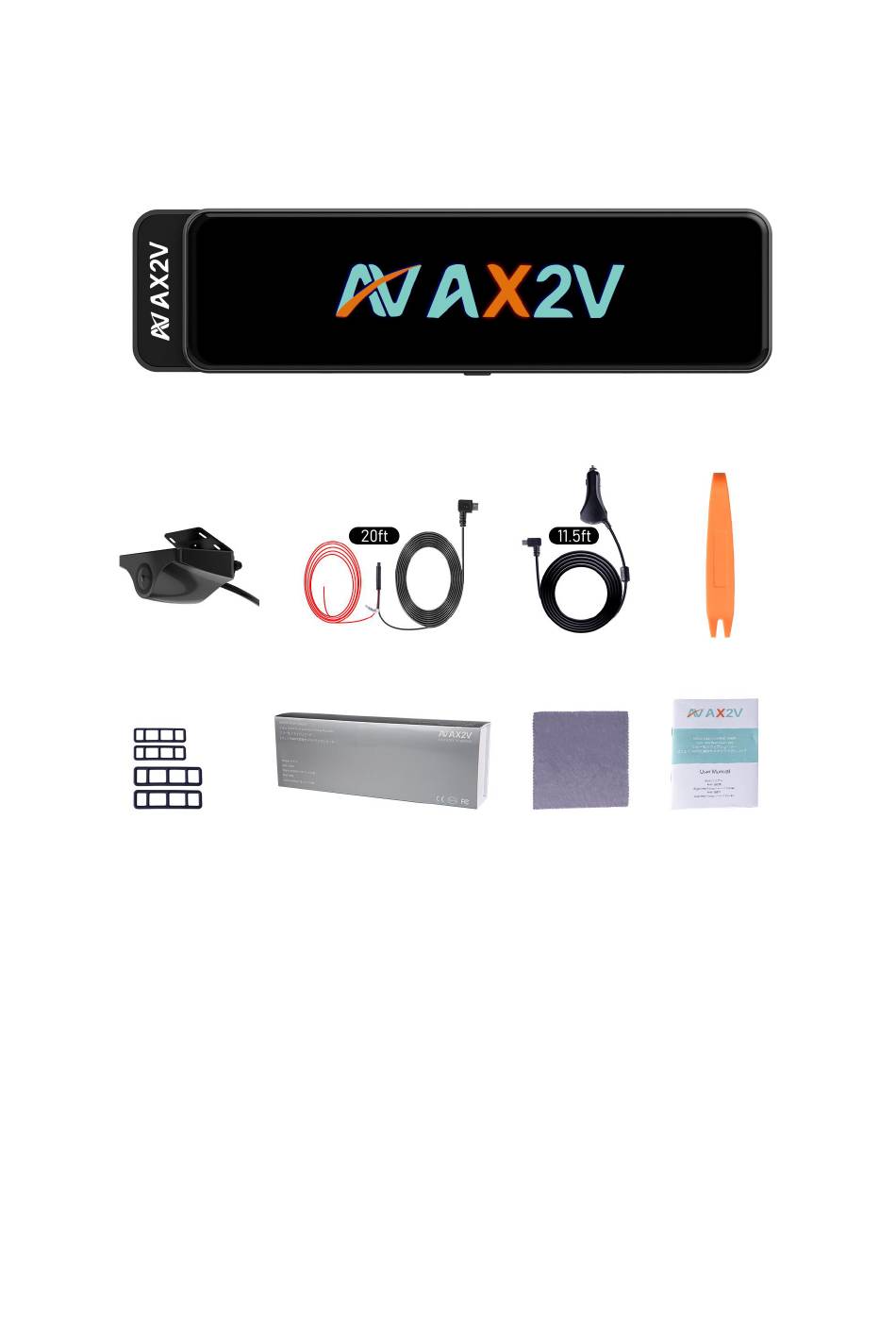

What In The Box:
-1080P Mirror Dash Cam x 1pc
-1080P Backup Camera with Screws x 1pc
-11.5ft Car Charger x 1pc
-20ft Cable for Rear Camera x 1pc
-Rubber Mounting Straps for fixing front camera x 4pc
-Installation Pry Tool x 1pc
-Cleaning cloth x 1pc
-User Manual x 1pc
Advertisement
Related Manuals for AX2V RVM-1088L
Summary of Contents for AX2V RVM-1088L
- Page 1 RVM-1088L Mirror Dash Cam Quick Guide What In The Box: -1080P Mirror Dash Cam x 1pc -1080P Backup Camera with Screws x 1pc -11.5ft Car Charger x 1pc -20ft Cable for Rear Camera x 1pc -Rubber Mounting Straps for fixing front camera x 4pc...
- Page 2 Note: Please power on the following components (host, rear camera) for testing before installation to ensure that it works normally. If you don’t understand, questions, requests, etc., please let us know. Installation Guide: -Mount The Mirror Dash Cam Step1:Attached the mirror dash cam to the rearview mirror of your vehicle with the silicon bandages as shown .
- Page 3 Step 1: Secure the rear camera with 3M adhesive Adjust the position, tear off the cover of 3M adhesive on the rear camera and install the rear camera near the license plate lamp. (The camera bracket is desiqned for vertical angle adjustable. Install the rear camera bracket on the rear camera and tighten it with screw driver if needed.) Step 2: Remove the panel (Optional for SUV / Mini VAN which has rear door vehicles)
- Page 4 Use the trim strip removal tool to pop up the tailgate trim strip, then the cable is inserted from the outside into the trunk of the car. Step 4: Connect the rear camera cord to the extension cable. Step 5: Connect the Red trigger wire (Reversing trigger)
- Page 5 Connect the Red reversing trigger to the positive pole of car revers light. (The display screen on the mirror will be force switch to rear camera during car reversing as the backup monitor system.) Step 6: Wire the power cord of the rear camera to the front of the car lf desired,use the trim tool to pop the windshield panel directly above the windshield.Then,pass the cable through the exposed chamber.
- Page 6 1. Please format the TF card termly in case of locked videos occupied much capacity, release them necessarily. 2. Please check the functionality of dash cam with its all accessories before installation, if issues exist, please let us know. 3. Please use original accessories provided by us, just in case of compatible issues after using others.
