AX2V DV-690WM Quick Manual

Hide thumbs Also See for DV-690WM:

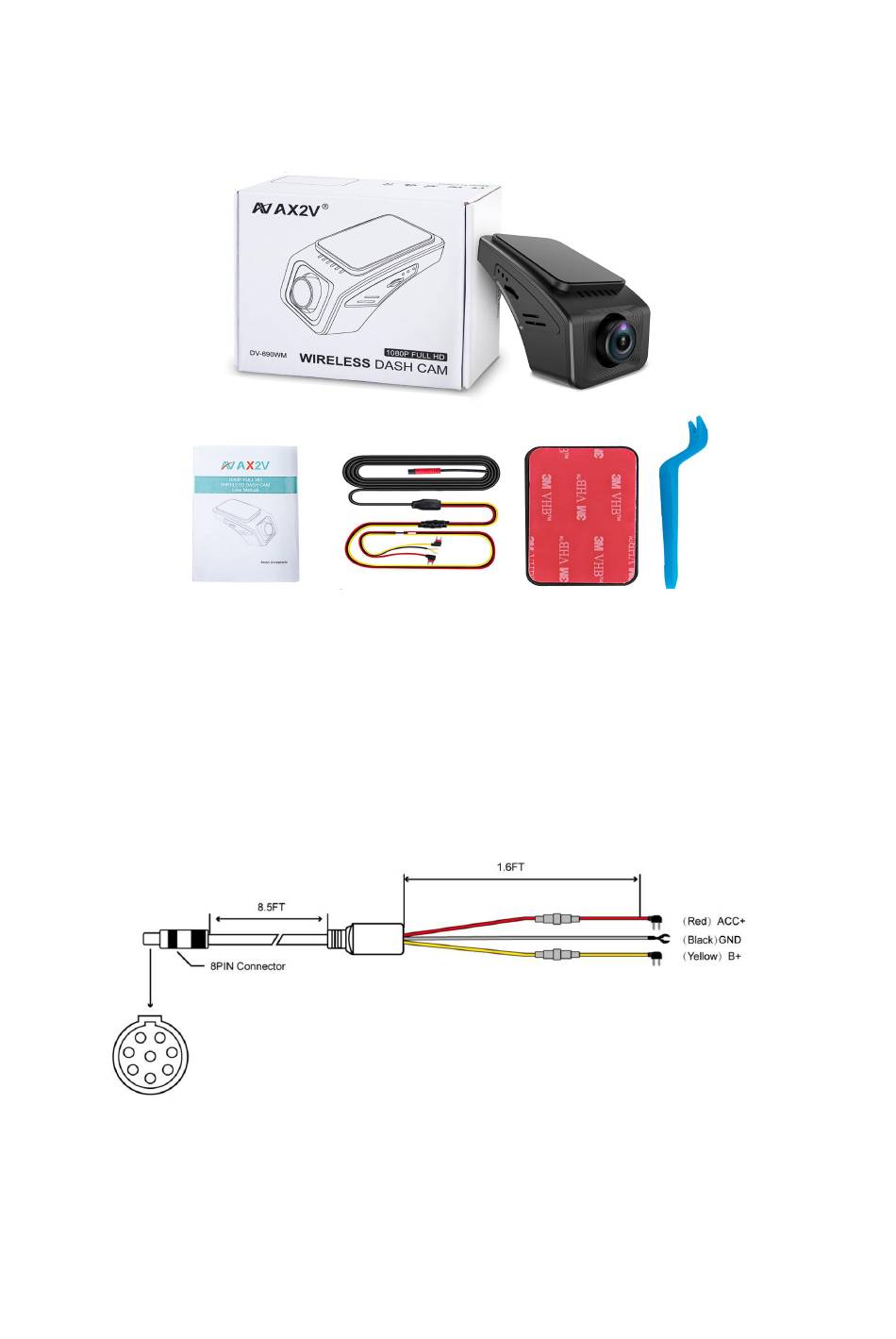

DV-690WM Dash CAM Quick Guide

-What In the Box:

-DV-690WM Dash Cam x 1pc

-Mounting Pad x 1pc

-User Manual x 1pc

(Red)

ACC: Connect to the ACC DC +12V Power

(Yellow)

B+: Connect to the battery constant DC+ 12V power. (Required for Parking

mode / Time-lapse functions)

(Black) GND: Connect to the vehicle metal body

-Power Cord Kit (10 ft) x 1pc

-Installation Pry Tool x 1pc

Table of Contents

Do you have a question about the DV-690WM and is the answer not in the manual?

Page 1 DV-690WM Dash CAM Quick Guide -What In the Box: -DV-690WM Dash Cam x 1pc -Power Cord Kit (10 ft) x 1pc -Mounting Pad x 1pc -Installation Pry Tool x 1pc -User Manual x 1pc -Wiring Diagram: (Red) ACC: Connect to the ACC DC +12V Power (Yellow) B+: Connect to the battery constant DC+ 12V power.
Page 2 -Recommended Installation Procedure:  The Dash Cam suggested to be mount at about top center of windshield, behind the rearview mirror. Stick the mount pad onto the windshield first, then catch and slide the dash cam onto the mount pad till clicked. ...
Page 3 -Warm tips: 1. Parking mode and time-lapse video function is 2 choose 1. (B+ connect to Car Battery is required for both functions) 2. Format the TF card by the dash cam (via APP control) if the TF card is the first time using for this device.
