Summary of Contents for AX2V AX-260

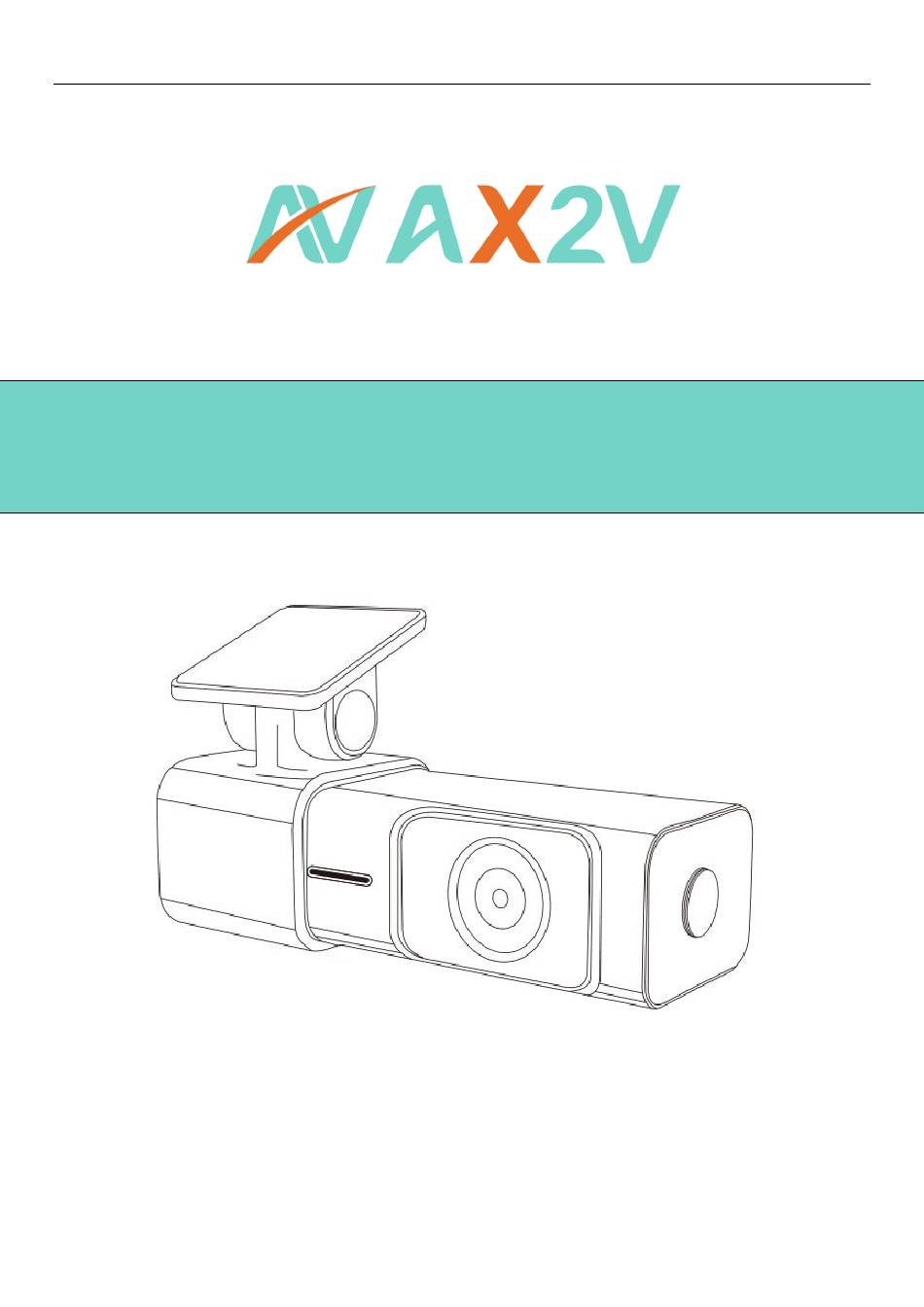

- Page 1 1600P QHD WIRELESS DASH CAM User Manual Mode: AX-260...
-
Page 2: Before Use
<<< Preface >>> Thank you for choosing this AX2V 2K(1600P) QHD Wi-Fi Car Dash Camera. Please read the user manual carefully before using the device. ■ The dash camera combined with functions like WDR, HDR, Loop Recording, 170° Wide Angle, Night Vision, Parking Monitor and Time-lapse video recording（Dedicated ACC hardwire kit required ）,... - Page 3 has been pre-installed into the card slot of the device. (The other low speed MicroSD card may cause the system slow or other malfunction during the use.) Format the MicroSD card monthly by Dash Cam via the application setting menu on the smartphone, or for first use of other MicroSD card.
-
Page 4: Specification
<<< Specification >>> Main Chipset: Novatek 96675, 2K Resolution,1600P@30fps Image Sensor: 5M Pixels COMS sensor Lens: 170° Wide-Angle High Definition Camera, F1.8 Video resolution: 2K QHD 1600P@30fps; 1080@30fps, 720P@ 30fps Video format: .TS format, H.264 Coded Photo resolution: 12M Pixels SD card capacity: Class10, Max 128GB MicroSD card. -
Page 5: What In The Box
SD card files path as follows: "Novatek" folder at the root of SD card, into the folder: "Loop": Normal recorded video files "Snapshot": Snapshot image folder (The Android devices will be download the images to the Smartphone photo album and delete the files on the SD card automatically after exit APP. -
Page 6: Appearance And Buttons
<<< Appearance and buttons >>> ■ The dash camera is designed as detachable with the mounting bracket for easy operation. ■ R otatable mounting bracket pad, for vertical view angle adjustable. ■ Function Button: Press to Stop / Start Video recording; Press and hold for 10s, to reset the hardware and load the default settings (included the SSID/ PSW of Wi-Fi) then power off the device. -
Page 7: Application Download
<<< >>> APPLICATION Download For iOS devices: Please search the “Viidure” from APP Store download for free. For Android devices: Please search “Viidure” from Google Play download for free. Or Scan the below QR code for quickly download. For iOS device For Android device... - Page 8 <<< APPLICATION QUICK GUIDE >>> Main page of APP...
- Page 9 Real-Time Display Interface of APP...
- Page 10 File Browse Interface of APP Click icon from rear-time display page into files browse. "Loop": Normal recorded video files "Snapshot": Snapshot image folder (The Android devices will be download the images to the Smartphone photo album and delete the files on the SD card automatically after exit APP.
- Page 11 Video Playback Interface of APP Click any video file from preview folder, into the playback interface.
- Page 12 Dash Camera Setting Options Interface of APP Sound Recording：On/Off Photo Resolution:12M/10M/8M/Cancel Video Resolution: 1600P@30FPS/1080P@30FPS/720P@30FPS Loop Recording Options: Off/1Minute/2Minutes/Cancel Exposure Compensation: -2~0~+2 Video Watermark：On/Off Collision Sensing: Off/Low/Middle/High/Cancel Parking Mode (Optional functions, Power hardware kit required) Parking Monitor Collision Detection: Off/Low/Middle/High/Cancel (Note: ACC Power hardwire kit is required, not included in the package)
- Page 13 Option B: Use the ACC power hardware kit to get power from car fuse box. If there has any question about the installation, please contact with us by email: service@ax2v.com...
- Page 14 <<< Wiring Diagram >>> Note: ACC power hardwire kit as a optional accessory for Parking Mode functions (both Parking Monitor Collision Detection or Time-lapse Video recording) , not included ASIN: B09WK14C88 in the package and sold separate. (Search from Amazon.com) Connect to ACC DC +12V (For the parking monitor function) Red Acc Black GND...
- Page 15 <<< Common Troubleshooting >>> 1. Camera can’t Power On: Use the original car cig charger that come with box, check the car cig charger LED indicator is on; Check the Power USB connector been plugged into the dash cam USB port. Or if use the power hardware kit, check the B+ and ACC wiring are correct, and make sure that the car is in ignition state.
- Page 16 Make every user satisfied is our final goal. For Products information: amz-us@ax2v.com For Tech Support or After service: service@ax2v.com Notice: Do not operate the phone or dash cam while driving. The wireless control of dash cam via Smartphone only after the vehicle safely parked.
