BUSH FURNITURE A217161 Assembly Manual

BUSH FURNITURE A217161 Assembly Manual

Medicine cabinet with mirror
Hide thumbs

Advertisement

Quick Links

Download this manual
Medicine Cabinet with Mirror
Lot Code #
Part Number A217161
Keep manual for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the A217161 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BUSH FURNITURE A217161

Summary of Contents for BUSH FURNITURE A217161

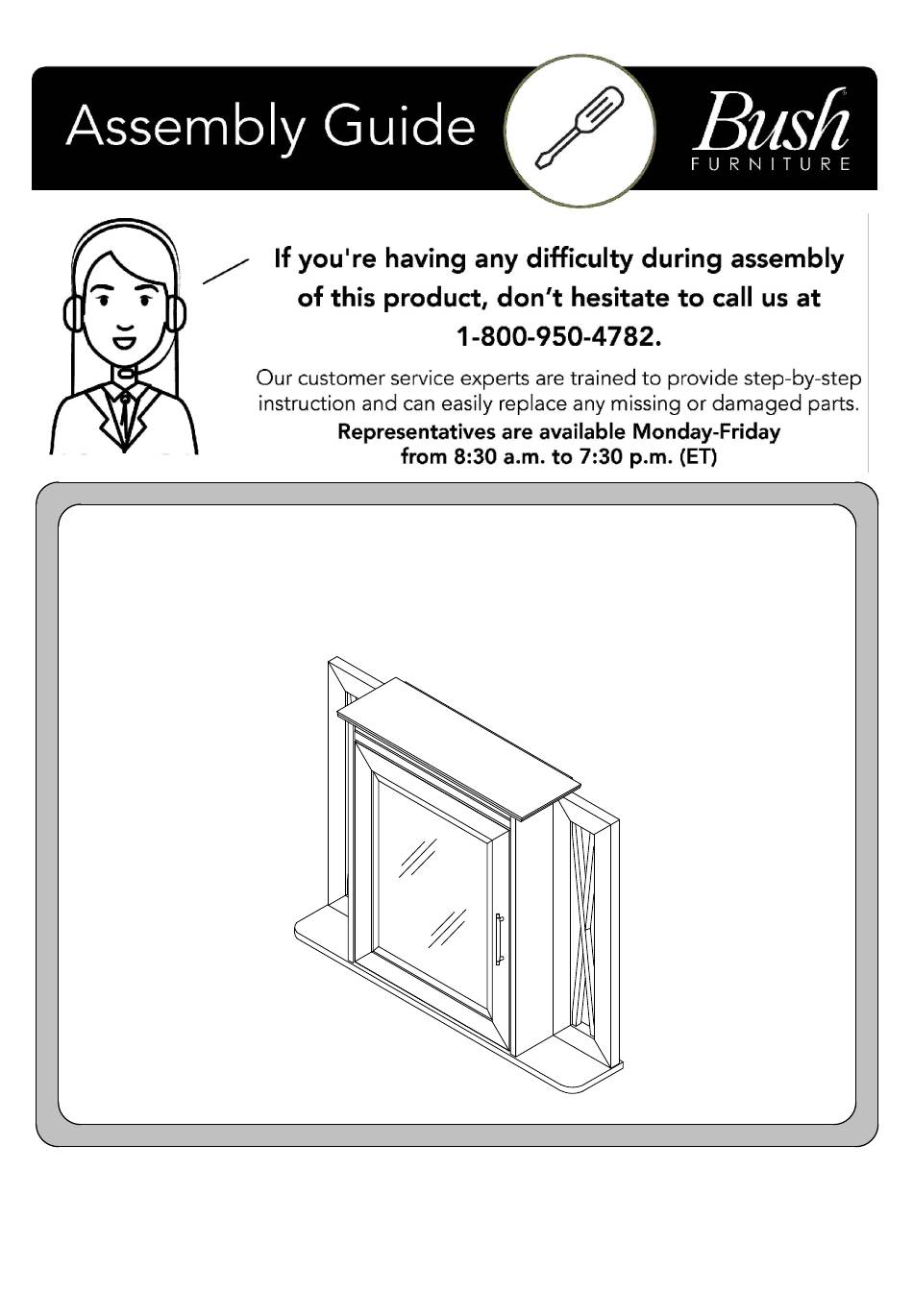

  • Page 1 Medicine Cabinet with Mirror Lot Code # Part Number A217161 Keep manual for future reference.
  • Page 2 Get to know your Boards A217161 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 3 Get to know your Fasteners A217161 Fasteners are shown actual size. [ 16 ] H72988 [ 16 ] H181468 KD Bolt KD Cam [ 17 ] H38169 [ 2 ] H158933 #8 x 3/4" Wood Dowel 8 x 30mm [ 4 ]...
  • Page 7 STEP Prepare Panels A217161 [ 8 ] H72988 KD Bolt Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 8 STEP 3 Assemble Panels A217161 [ 2 ] H181468 Tighten KD Cam [ 2 ] Cover Cap Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 10 STEP Prepare Panels A217161 [ 4 ] H72988 KD Bolt Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.

  • Page 11: Assembly Options

    STEP Assembly Options A217161 Left Option Go to step 7 Proceda al paso 7 Allez a l'etape 7 Right Option Go to step 15 Proceda al paso 15 Allez a l'etape 15 Have an assembly question or need a replacement part? Just call...
  • Page 16 STEP Assemble Panels A217161 [ 2 ] H181468 Tighten KD Cam [ 2 ] Cover Cap Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 17 STEP Assemble Panels A217161 [ 2 ] H181468 Tighten KD Cam [ 2 ] Cover Cap Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 19 STEP Assemble Panels A217161 [ 2 ] H181468 Tighten KD Cam [ 2 ] Cover Cap Go to step 23 Proceda al paso 23 Allez a l'etape 23 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 24 STEP Assemble Panels A217161 [ 2 ] H181468 Tighten KD Cam [ 2 ] Cover Cap Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 25 STEP Assemble Panels A217161 [ 2 ] H181468 Tighten KD Cam [ 2 ] Cover Cap Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 27 STEP Assemble Panels A217161 [ 2 ] H181468 Tighten KD Cam [ 2 ] Cover Cap Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 28 STEP 23 Attach Back Panel A217161 Team Lift H124395 [ 8 ] [ 8 ] H34174 #6 x 1/2" # 3 x 3/4" H124395 Center the back panel so that the back panel does not stick out past the edge of the unit.
  • Page 29 STEP Place Cabinet A217161 Cabinet is predrilled for wall mounting and can attach directly to wood wall studs or a hollow wall. You may need to use both wall stud and hollow-wall anchors provided. Procedure: 1. Place cabinet in the desired final location.

  • Page 30: Prepare Wall

    STEP Prepare Wall A217161 NOTE: There may be plumbing or electrical lines in the walls of residential dwellings. Care must be taken when drilling into walls. If you are not confident in your installation abilities, please consult an installation professional.

  • Page 32: Install Shelves

    STEP 27 Install Shelves A217161 Team Lift [ 8 ] H23604 Shelf Pin 1" x 3/16" Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 33 STEP Assembly Options A217161 Left Option Go to step 29 Proceda al paso 29 Allez a l'etape 29 Right Option Go to step 31 Proceda al paso 31 Allez a l'etape 31 Have an assembly question or need a replacement part? Just call...
  • Page 34 STEP 29 Prepare Door A217161 [ 4 ] [ 2 ] H153242 H170611 #8 x 5/8" Hinge [ 1 ] H180971 [ 2 ] H158933 Handle #8 x 3/4" [ 1 ] H124395 H217164 [ 1 ] #6 x 1/2"...
  • Page 35 STEP 30 Assemble and Adjust Door A217161 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 36 STEP 31 Prepare Door A217161 [ 4 ] [ 2 ] H170611 H153242 #8 x 5/8" Hinge [ 1 ] H180971 H158933 [ 2 ] Handle #8 x 3/4" H124395 [ 1 ] H217164 [ 1 ] #6 x 1/2"...
  • Page 37 STEP 32 Assemble and Adjust Door A217161 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 38 STEP Maximum Loading and Cleaning A217161 Gently clean surfaces with a damp sponge eraser. MAXIMUM WEIGHT: 0 LBS (0 KG) PESO MÁXIMO: 0 LIBRAS (0 KILOGRAMO) POIDS MAXIMUM: 0 LIVRES (0 KILOGRAMME) MAXIMUM WEIGHT: 5 LBS (2.27 KG) PESO MÁXIMO: 5 LIBRAS (2.27 KILOGRAMO) POIDS MAXIMUM: 5 LIVRES (2.27 KILOGRAMME)
  • Page 40 STEP 24 SP Place Cabinet A217161 El gabinete está perforado previamente para el montaje en la pared y se puede fijar directamente a los montantes de pared de madera o una pared hueca. Es posible que deba utilizar tanto los montantes de pared como los anclajes de pared hueca que se proporcionan.
  • Page 41 STEP 25 SP Prepare Wall A217161 NOTA:Puede haber tuberías o líneas eléctricas en las paredes de las viviendas residenciales. Se debe tener cuidado al perforar paredes. Si no está seguro de sus capacidades de instalación, consulte a un instalador profesional.
  • Page 43 STEP 24 FR Place Cabinet A217161 L'armoire est pré-percée pour un montage mural et peut se fixer directement sur des montants muraux en bois ou un mur creux. Vous devrez peut-être utiliser à la fois les chevilles murales et les ancrages pour murs creux fournis.
  • Page 44 STEP 25 FR Prepare Wall A217161 REMARQUE: Il peut y avoir de la plomberie ou des lignes électriques dans les murs des habitations résidentielles. Des précautions doivent être prises lors du perçage dans les murs. Si vous n'êtes pas sûr de vos capacités d'installation, veuillez consulter un professionnel de l'installation.
