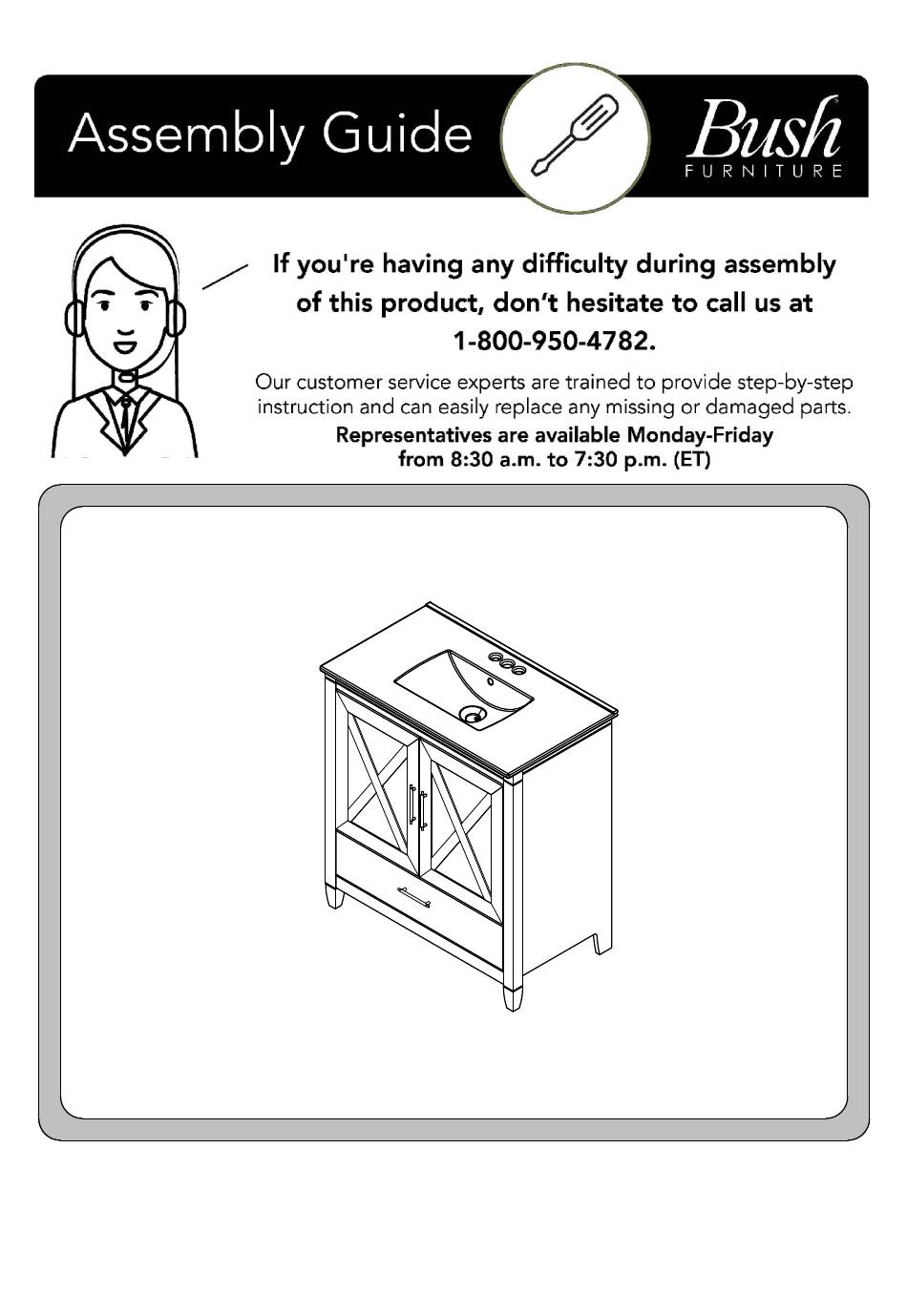

  • Page 1 32W Vanity Lot Code # Part Number A199335 Keep manual for future reference.
  • Page 2 Get Ready to Assemble DON’Ts Wear safety glasses at all times during assembly. Do not attempt to use this product Carefully follow the instructions in this guide and before all steps complete all steps in order. have been Give us a call if you’re having trouble with a particularly tricky step. completed.

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION PLEASE READ WARNINGS Improper use can cause safety hazards, or damage to your furniture and household items. Why it's Warning Don't important Serious • • Assemble following all instructions Do not exceed the maximum Improper injury may using all indicated parts and hardware load limits stated in the assembly, use...
  • Page 4 Wall Anchoring Guide This product must attach only to a wooden wall stud. If you have questions, consult with a local hardware retailer. WALL MATERIAL Drywall or plaster with available wood stud ANCHORING DEVICE Bush provided #10 x 2.5" Truss-Head screw.
  • Page 5 Get to know your Boards A199335 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 6 Get to know your Fasteners A199335 Fasteners are shown actual size. [ 30 ] [ 30 ] H200020 H180604 KD Bolt KD Cam [ 4 ] [ 4 ] H194549 H198888 KD Bolt 12mm KD Cam 12mm [ 22 ]...
  • Page 7 Get to know your Hardware A199335 Hardware not to scale. [ 3 ] [ 4 ] H180971 H200021 Tack Glide Handle H170611 [ 4 ] [ 4 ] H170612 Mounting Plate Hinge [ 4 ] H200022 [ 2 ] H200042 Clear Bumper Ø...
  • Page 8 Get to know your Hardware A199335 Hardware not to scale. WALL ATTACHMENT HARDWARE [ 2 ] H194287 # 10 X 2.5 '' Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 9 Prepare Panels STEP 1 A199335 [ 4 ] H23119 [ 4 ] H198888 KD Bolt 12mm #10 x 5/8" H100445 [ 2 ] Drawer Bracket Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 10 STEP 2 Build Drawer Build Drawer A199335 Tighten Arrow [ 4 ] H194549 KD Cam 12mm KD Cam H200032 [ 4 ] M4 X 32mm H101725 [ 4 ] #6 x 1/2" Have an assembly question or need a replacement part? Just call...
  • Page 11 STEP 3 Install Hardware A199335 [ 2 ] H180971 [ 1 ] H127839 Handle M4 x 22mm Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 12 STEP Separate Slides A199335 Slides Must Be Separated Before Assembly. After Separated, Set Aside Until Needed for Assembly. Las diapositivas deben separarse antes del montaje. Después de la separación, déjelo a un lado hasta que sea necesario. Les glissières doivent être séparées avant l'assemblage.
  • Page 13 STEP 5 Install Slide Runners A199335 [ 6 ] H200026 Q184100 M3 X 12mm [ 1 ] 10"(250mm) Slide Runner Orientation Orlentaclón L'orlentation Orientation Orlentaclón L'orlentation Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 14 STEP Prepare Panels A199335 [ 12 ] [ 2 ] H38169 H180604 KD Bolt Wood Dowel 8 x 30mm [ 2 ] H200021 Tack Glide Safety glasses Gafas de seguridad Lunettes de protection Have an assembly question or need a replacement part? Just call...
  • Page 15 STEP 7 Assemble Panel A199335 Tighten Arrow [ 3 ] Cover Cap KD Cam [ 3 ] H200020 KD Cam Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 16 Install Hardware STEP 8 A199335 [ 3 ] H200026 [ 1 ] M3 X 12mm 10"(250mm) Slide Mount Orientation Orlentaclón [ 2 ] L'orlentation H170612 Mounting Plate Orientation Orlentaclón L'orlentation Have an assembly question or need a replacement part? Just call...
  • Page 17 STEP Prepare Panels A199335 [ 12 ] [ 2 ] H38169 H180604 KD Bolt Wood Dowel 8 x 30mm [ 2 ] H200021 Tack Glide Safety glasses Gafas de seguridad Lunettes de protection Have an assembly question or need a replacement part? Just call...
  • Page 18 STEP 10 Assemble Panel A199335 Tighten Arrow [ 3 ] Cover Cap KD Cam [ 3 ] H200020 KD Cam Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 19 Install Hardware STEP 11 A199335 [ 3 ] H200026 [ 1 ] M3 X 12mm 10"(250mm) Slide Mount Orientation Orlentaclón L'orlentation [ 2 ] H170612 Mounting Plate Orientation Orlentaclón L'orlentation Have an assembly question or need a replacement part? Just call...
  • Page 20 STEP Prepare Panels A199335 [ 4 ] H38169 H200029 [ 2 ] M3.5 X 20mm Wood Dowel 8 x 30mm Safety glasses Gafas de seguridad Lunettes de protection Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 21 STEP Prepare Panels A199335 [ 3 ] [ 8 ] H38169 H180604 KD Bolt Wood Dowel 8 x 30mm Safety glasses Gafas de seguridad Lunettes de protection Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 22 STEP 14 Assemble Panel A199335 Tighten Arrow [ 3 ] Cover Cap KD Cam [ 3 ] H200020 KD Cam Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 23 STEP Prepare Panels A199335 [ 3 ] [ 6 ] H38169 H180604 KD Bolt Wood Dowel 8 x 30mm Safety glasses Gafas de seguridad Lunettes de protection Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 24 STEP 16 Assemble Panels A199335 Tighten Arrow [ 3 ] Cover Cap KD Cam [ 3 ] H200020 KD Cam Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 25 STEP 17 Assemble Panels A199335 Tighten Arrow [ 1 ] Cover Cap KD Cam [ 1 ] H200020 KD Cam Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 26 STEP 18 Assemble Panels A199335 Tighten Arrow [ 2 ] Cover Cap KD Cam [ 2 ] H200020 KD Cam Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 27 STEP 19 Assemble Panels A199335 Tighten Arrow [ 4 ] H200020 KD Cam KD Cam [ 4 ] Team Lift Cover Cap Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 28 STEP 20 Assemble Panels A199335 Tighten Arrow [ 2 ] Cover Cap KD Cam [ 2 ] H200020 KD Cam Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 29 STEP 21 Assemble Panels A199335 Tighten Arrow [ 9 ] Cover Cap KD Cam [ 9 ] H200020 KD Cam Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 30 STEP Install Hardware A199335 [ 16 ] [ 4 ] H200042 H200028 Corner Bracket M3.5 X 16mm Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 31 STEP 23 Prepare Doors A199335 [ 8 ] [ 4 ] H200028 H170611 M3.5 X 16mm Hinge [ 2 ] H127839 H180971 [ 4 ] Handle M4 x 22MM H127839 H200022 [ 2 ] Clear Bumper 3/4 " Ø 12x2mm 5/16 "...
  • Page 32 STEP 24 Install and Adjust Doors A199335 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 33 STEP 25 Insert Drawer A199335 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 34 STEP Attach to Wall A199335 Secure unit to wall studs. Unit intended for attachment against drywall. Consult your installation professional for installation against walls NOT made from drywall. 1.) Place unit in desired location against wall. 2.) Check level of unit and shim as required to achieve level top.
  • Page 35 STEP Attach to Wall A199335 Move unit away from wall. Using stud finder, locate and mark with pencil the centerline of 2 studs behind the unit. stud finder buscador de estudios chercheur de goujons Marque la pared Mark wall Stud...
  • Page 36 STEP Attach to Wall A199335 Place unit back against wall, verify level, and transfer stud centerline marks to unit top rail at back. Drill (2) 1/8" (3mm) x 2.5" (60mm) holes through top rail into stud and secure using (2) #10 x 2.5" screws provided.
  • Page 37 STEP 29 Basin Specification A199335 BNS1202WHC (32 inch Basin) 31.9in(810mm) 4in (101mm) 1.6in (40mm) 3- Ø1.4( 35mm) Ø1.8in( 45mm) 18.9in 0.7in (480mm) (17mm) 0.12in (3mm) R9.2in(233mm) 1in (26mm) 0.7in c ±1 A R10in(253mm) (17mm) b ±1 A 1in(25mm) ∅ c ±1 A Ø2.7in(70mm)
  • Page 38 STEP 30 Install Basin A199335 Use only through-wall plumbing attachments. Follow the instructions included with your BNS1202WHC (32 inch Basin) plumbing fixtures. Install plumbing fixture and drain to basin before attaching basin to vanity using 100% silicone adhesive. Allow adhesive 24 hours cure time to achieve full strength.
  • Page 39 STEP Drawer Adjustment A199335 DRAWER FRONT VIEW REQUIRED TOOL: PHILLIPS SCREWDRIVER HERRAMIENTA REQUERIDA: DESTORNILLADOR PHILLIPS OUTIL REQUIS: TOURNEVIS CRUCIFORME 1. LOOSEN SCREWS. 2. ADJUST DRAWER FRONTS. 3. TIGHTEN SCREWS. 1. Afloje los tornillos 2. Ajustar frentes de cajón 3. Apriete los tornillos 1.
  • Page 40 STEP Maximum Loading and Cleaning A199335 Gently clean MAXIMUM WEIGHT: 25 LBS (11.34 KG) surfaces with a damp sponge eraser. PESO MÁXIMO: 25 LBS (11.34 KILOGRAMO) POIDS MAXIMUM: 25 LBS (11.34 KILOGRAMME) MAXIMUM WEIGHT: 15 LBS (6.8 KG) PESO MÁXIMO: 15 LBS (6.8 KILOGRAMO) POIDS MAXIMUM: 15 LBS (6.8 KILOGRAMME)

  • Page 41: Parts List

    PARTS LIST A199335 KWVN132WAS-03 [ 1 ] W 199586 [ 1 ] BNS1202WHC [ 1 ] W 200050 [ 1 ] W 199578 [ 1 ] W 199584 [ 1 ] W 199589 [ 1 ] W 199588 [ 1 ]...
  • Page 42 PARTS LIST A199335 KWVN132DG-03 [ 1 ] W 199569 [ 1 ] BNS1202WHC [ 1 ] W 200048 [ 1 ] W 199561 [ 1 ] W 199567 [ 1 ] W 199572 [ 1 ] W 199571 [ 1 ]...
  • Page 43 27 SP Attach to Wall STEP A199335 Asegure la unidad a los montantes de la pared. Unidad destinada a fijación contra paneles de yeso. Consulte a su instalador para la instalación contra paredes que NO estén hechas de paneles de yeso.
  • Page 44 28 SP Attach to Wall STEP A199335 Aleje la unidad de la pared. Con el buscador de vigas, ubique y marque con lápiz la línea central de 2 vigas detrás de la unidad. stud finder buscador de estudios chercheur de goujons...
  • Page 45 29 SP Attach to Wall STEP A199335 Coloque la unidad contra la pared, verifique el nivel y transfiera las marcas de la línea central de los montantes al riel superior de la unidad en la parte posterior. Taladre (2) orificios de 1/8 "(3 mm) x 2,5" (60 mm) a través del riel superior en el montante y asegúrelos con (2) tornillos # 10 x 2,5 "incluidos.
  • Page 46 27 FR Attach to Wall STEP A199335 Fixez l'unité aux montants muraux. Unité destinée à être fixée contre des cloisons sèches. Consultez votre professionnel de l'installation pour l'installation contre des murs NON fabriqués à partir de cloisons sèches. 1.) Placez l'unité à l'emplacement souhaité contre le mur.
  • Page 47 28 FR Attach to Wall STEP A199335 Éloignez l'appareil du mur. À l'aide du détecteur de montants, localisez et marquez avec un crayon la ligne centrale de 2 montants derrière l'unité. stud finder buscador de estudios chercheur de goujons Marque la pared...
  • Page 48 29 FR Attach to Wall STEP A199335 Placez l'unité contre le mur, vérifiez le niveau et transférez les marques de ligne centrale des montants sur le rail supérieur de l'unité à l'arrière. Percez (2) trous de 1/8 "(3 mm) x 2,5" (60 mm) à travers le rail supérieur dans le montant et fixez à...
  • Page 49 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 50 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 51 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 52 This Bush Furniture product is warranted to the Tout le produit Bush Furniture est garanti à l’ache- original purchaser at the time of purchase and for Todo mueble de Bush Furniture es garantizado al teur original à...
