BUSH FURNITURE A184141C Assembly Instructions Manual

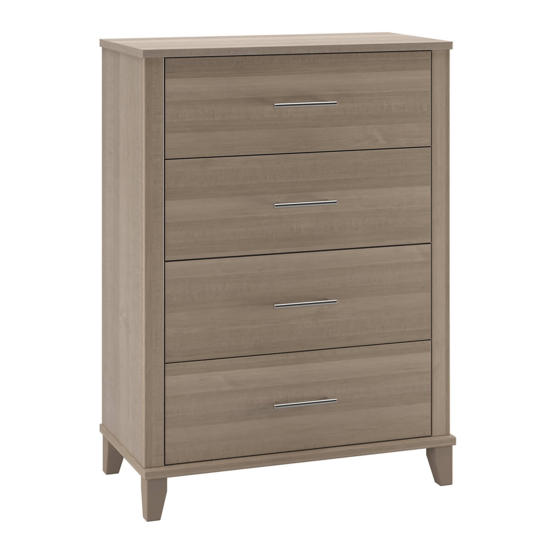

4 drawer chest
Hide thumbs

Advertisement

Quick Links

Download this manual
ASSEMBLY INSTRUCTIONS
4 Drawer Chest
?
Lot Code #
NEED HELP?
Call 1−800−950−4782
www.bushfurniture.com
Part Number A184141C
Keep manual for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the A184141C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BUSH FURNITURE A184141C

Summary of Contents for BUSH FURNITURE A184141C

  • Page 1 ASSEMBLY INSTRUCTIONS 4 Drawer Chest Lot Code # NEED HELP? Call 1−800−950−4782 www.bushfurniture.com Part Number A184141C Keep manual for future reference.
  • Page 2 ATTENTION A184141C THIS PRODUCT MEETS THE REQUIREMENTS OF ASTM F2057-14 STANDARD SAFETY SPECIFICATION FOR CLOTHING STORAGE UNITS, WHEN PROPERLY ASSEMBLED AND WHEN ALL SAFETY WARNINGS ARE UNDERSTOOD AND FOLLOWED. ESTE PRODUCTO DE VAPOR LOS REQUISITOS DEL ESTÁNDAR ASTM F2057-14 ESPECIFICACIONES DE SEGURIDAD PARA LAS UNIDADES DE ALMACENAMIENTO DE ROPA, CUANDO ESTÉN MONTADOS Y CUANDO TODOS SEGURIDAD...

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION A184141C WARNING WARNING Serious or fatal crushing injuries can occur from furniture tip−over. To Proper installation of the drawer help prevent tip−over: interlock assembly is crucial to the -Install tip-over restraint provided. stability and tipover prevention of -Place heaviest items in the lower drawers or shelves.

  • Page 4: Exploded View

    EXPLODED VIEW A184141C...

  • Page 5: Parts List

    PARTS LIST A184141C STS132AG Parts List LABEL CODE PART NUMBER DESCRIPTION W192875 TOP SHELF W192876 LEFT SIDE PANEL W192877 RIGHT SIDE PANEL PANEL RAIL W192879 W192878 BOTTOM SHELF W192883 BACK PANEL W191037 DRAWER FRONT W191038 DRAWER BACK W192869 DRAWER SLIDE SPACER, GROOVED...
  • Page 6 FASTENERS A184141C FASTENERS ARE SHOWN IN ACTUAL SIZE. LOS FIJADORES SON DEMONSTRADOS EN SU TAMAÑO ACTUAL. LES ATTACHES SONT MONTRÉES DANS L'ÉCHELLE GRANDEUR. [ 4 ] H143460 #12 x 4" [ 16 ] H23370 [ 17 ] H101725 #10 x 1-1/4"...
  • Page 7 HARDWARE A184141C 10" Ball Bearing Slide Q184100 [ 8 ] [ 4 ] H149999 Foot [ 8 ] [ 1 ] H100446 H192352 Drawer Bracket 4 Drawer Interlock H150001 [ 4 ] Handle...
  • Page 8 ATTENTION A184141C Common assembly techniques. Técnica común de ensamblaje. Techniques communes d’assemblage. 190° Minimum...
  • Page 9 STEP A184141C Slides Must Be Separated Before Assembly. Las diapositivas deben separarse antes del montaje. Les glissières doivent être séparées avant l'assemblage. After Separated, Set Aside Until Needed for Assembly. Después de la separación, déjelo a un lado hasta que sea necesario.
  • Page 10 STEP A184141C [ 5 ] H171556 [ 2 ] H191173 25mm Quiklock Quickfit TL4 [ 2 ] H181468US KD Cam3000 190° Minimum...
  • Page 11 STEP A184141C [ 8 ] H23370 #10 x 1-1/4"...
  • Page 12 STEP A184141C 10" Slide Mount H192260 [ 8 ] Euro 10mm [ 4 ] ORIENTATION ORIENTACIÓN ORIENTATION MOVE SLIDE CAGE TO EXPOSE ALL HOLE LOCATIONS MUEVA LA JAULA DE DESLIZAMIENTO PARA EXPONER TODAS LAS ZONAS DEL AGUJERO DÉPLACER LE JOINT DE DIAPORAMA POUR...
  • Page 13 STEP A184141C [ 2 ] [ 5 ] H191173 H171556 25mm Quiklock Quickfit TL4 [ 2 ] H181468US KD Cam3000 190° Minimum...
  • Page 14 STEP A184141C [ 8 ] H23370 #10 x 1-1/4"...
  • Page 15 STEP A184141C H192352 [ 1 ] [ 1 ] H101725 #6 x 1/2" 4 Drawer Interlock...
  • Page 16 STEP A184141C 10" Slide Mount H192260 [ 8 ] Euro 10mm [ 4 ] ORIENTATION ORIENTACIÓN ORIENTATION All levers closed. Todas las palancas cerradas. Tous les leviers sont fermés. Push slide through lever. Empuje la corredera a través de la palanca.
  • Page 17 STEP A184141C [ 6 ] H38169 Wood Dowel 8 x 30...
  • Page 18 STEP A184141C [ 3 ] H181468US KD Cam3000 190° Minimum An assistant may be required. Un asistente puede ser necesario. L’aide d’une autre personne peut s’averer necessaire.
  • Page 19 STEP A184141C [ 3 ] H181468US KD Cam3000 For ease of attachment slide 2 drawer bottoms under the unit. Para facilitar la fijación, deslice 2 fondos del cajón debajo de la unidad. Pour faciliter la fixation, glissez 2 fonds de tiroir sous l'unité.
  • Page 20 STEP A184141C [ 4 ] H143460 #12 x 4" [ 8 ] H23119 [ 4 ] H149999 #10 x 5/8" Foot...
  • Page 21 STEP A184141C [ 4 ] H23491 #10 x 2" Finished Edge Borde Acabado Bord Fini...
  • Page 22 STEP A184141C Finished Edge Borde Acabado Bord Fini...
  • Page 23 STEP A184141C 10" Slide Runner [ 16 ] H101725 [ 8 ] H184098 #6 x 1/2" DRAWER SIDE - LEFT LADO DEL CAJÓN - IZQUIERDA TIROIR - GAUCHE DRAWER SIDE - RIGHT LADO DEL CAJÓN - DERECHO CÔTÉ - DROIT...
  • Page 24 STEP A184141C [ 8 ] H100446 Drawer Bracket [ 16 ] H23119 #10 x 5/8"...

  • Page 25: Drawer Assembly

    STEP A184141C H128624 [ 16 ] [ 16 ] H26053 #8 x .5" #10 x 1-1/4" DRAWER ASSEMBLY ENSAMBLE DE CAJÓN DRAWER SIDE - RIGHT ENSEMBLE DE TIROIR LADO DEL CAJÓN - DERECHO H26053 CÔTÉ - DROIT DRAWER SIDE - LEFT LADO DEL CAJÓN - IZQUIERDA...
  • Page 26 STEP A184141C [ 8 ] H23480 #8-32 x 7/8" H150001 [ 4 ] Handle...
  • Page 27 STEP A184141C TOP DRAWER INSTALLATION INSTALACION DEL TIRADOR SUPERIOR INSTALLATION DE TIROIR MOVE SLIDE TO FORWARD MOST POSITION MOVER DIAPOSITIVA HACIA ADELANTE MÁS POSICIÓN BOTH RIGHT AND LEFT SIDES DÉPLACER LA DIAPOSITIVE VERS L'AVENIR AMBOS LADOS DERECHO E IZQUIERDO LES DIFFERENTS ET GAUTS...
  • Page 28 STEP A184141C SECOND DRAWER INSTALLATION SEGUNDA INSTALACIÓN DEL CAJÓN DEUXIÈME INSTALLATION DE TIROIR BOTH RIGHT AND LEFT SIDES AMBOS LADOS DERECHO E IZQUIERDO LES DIFFERENTS ET GAUTS CLOSE ALL DRAWERS CERRAR TODOS LOS CAJONES PROCHE TOUTES LES TIROIRS MOVE SLIDE TO FORWARD MOST POSITION MOVER DIAPOSITIVA HACIA ADELANTE MÁS POSICIÓN...
  • Page 29 STEP A184141C THIRD DRAWER INSTALLATION TERCERA INSTALACIÓN DEL CAJÓN INSTALLATION DU TROISIÈME TIROIR CLOSE ALL DRAWERS CERRAR TODOS LOS CAJONES PROCHE TOUTES LES TIROIRS MOVE SLIDE TO FORWARD MOST POSITION MOVER DIAPOSITIVA HACIA ADELANTE MÁS POSICIÓN DÉPLACER LA DIAPOSITIVE VERS L'AVENIR INSERT DRAWER, CAREFULLY POSITION SLIDE RUNNER INTO MOUNT.
  • Page 30 STEP A184141C BOTTOM DRAWER INSTALLATION INSTALACIÓN FONDO DE CAJÓN BAS INSTALLATION DE TIROIR CLOSE ALL DRAWERS CERRAR TODOS LOS CAJONES PROCHE TOUTES LES TIROIRS MOVE SLIDE TO FORWARD MOST POSITION MOVER DIAPOSITIVA HACIA ADELANTE MÁS POSICIÓN DÉPLACER LA DIAPOSITIVE VERS L'AVENIR INSERT DRAWER, CAREFULLY POSITION SLIDE RUNNER INTO MOUNT.
  • Page 31 IMPORTANT SAFETY INFORMATION A184141C DRESSER TOP SHELF MAXIMUM WEIGHT: 25lbs PESO MÁXIMO: 25 LIBRAS POIDS MAXIMAL: 11.3 KILOGRAMME DRESSER DRAWERS (4x) MAXIMUM WEIGHT: 15lbs PESO MÁXIMO: 15 LIBRAS POIDS MAXIMAL: 6.8 KILOGRAMME...
  • Page 32 STEP A184141C FOLLOW THESE STEPS TO SECURE UNIT TO THE WALL USING TIPOVER RESTRAINT SIGA ESTOS PASOS PARA FIJAR LA UNIDAD A LA PARED UTILIZANDO LA PUNTA SOBRE EL SEGURO SUIVEZ CES ÉTAPES POUR SÉCURISER L'APPAREIL AU MUR EN UTILISANT LA PRISE DE RETENUE 1.
  • Page 33 STEP A184141C WALL STUD ATTACHMENT ADJUNTO COLUMNA DE PARED FIXATION MUR GOUJON DRILL 1/8" HOLE 2" DEEP AT MARK ON WALL. TALADRO 1/8 "AGUJERO 2" DE PROFUNDIDAD EN LA MARCA EN LA PARED. PERCER 1/8 "TROU DE 2" DE PROFONDEUR À LA MARQUE SUR LE MUR.
  • Page 34 STEP A184141C ATTACH TIPOVER RESTRAINT TO PRODUCT CONECTAR A PRODUCTOS DE RETENCIÓN VUELCO CONSEIL DE FIXER RETENUE SUR LE PRODUIT [ 1 ] H107572 #8 x 1-1/2" Drill 1/8" hole 1" deep at mark on unit. Taladro 1/8 "agujero de 1" de profundidad en la marca de la unidad.
  • Page 35 STEP A184141C DRAWER FRONT VIEW REQUIRED TOOL: PHILLIPS SCREWDRIVER HERRAMIENTA REQUERIDA: DESTORNILLADOR PHILLIPS OUTIL REQUIS: TOURNEVIS CRUCIFORME 1. LOOSEN SCREWS. 2. ADJUST DRAWER FRONTS. 3. TIGHTEN SCREWS. 1. Afloje los tornillos 2. Ajustar frentes de cajón 3. Apriete los tornillos 1.
