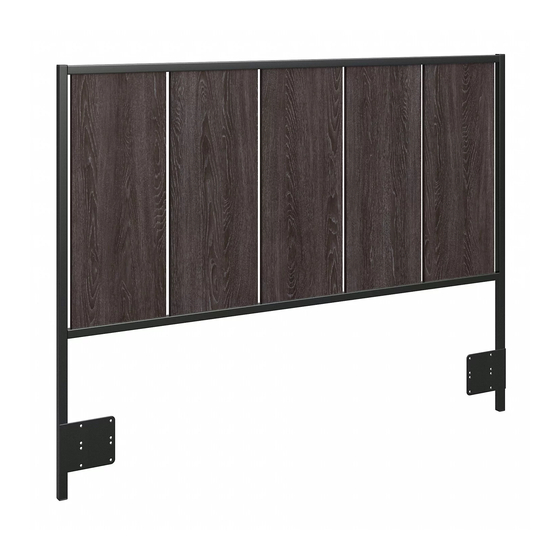

BUSH FURNITURE Atria ARQ165MH Assembly Manual

Full / queen headboard
Hide thumbs

Advertisement

Quick Links

Download this manual
Full / Queen Headboard
Lot Code #
Instruction Sheet Number A191496A
Keep manual for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Atria ARQ165MH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BUSH FURNITURE Atria ARQ165MH

Summary of Contents for BUSH FURNITURE Atria ARQ165MH

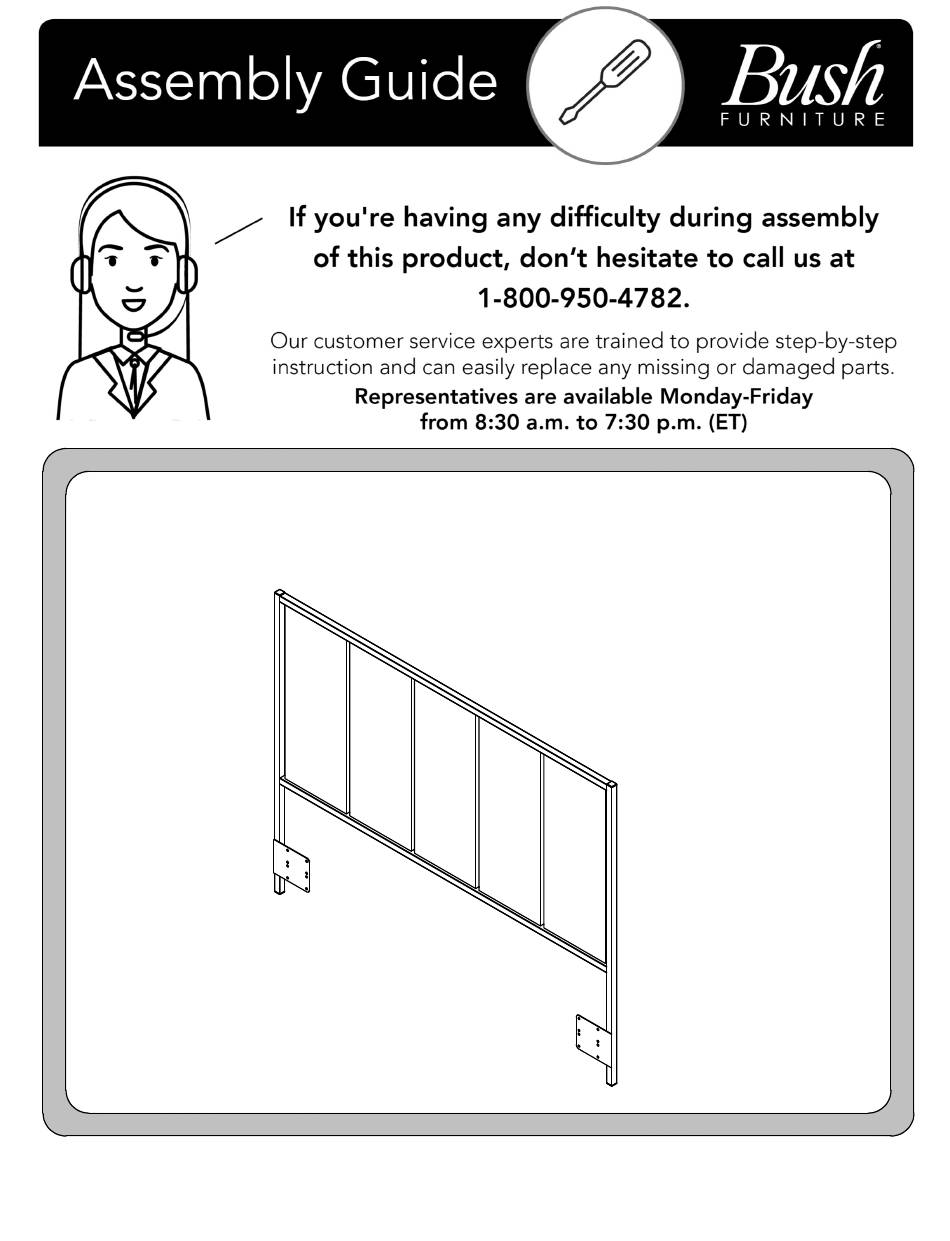

  • Page 1 Full / Queen Headboard Lot Code # Instruction Sheet Number A191496A Keep manual for future reference.
  • Page 2 Get Ready to Assemble A191496A...

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION PLEASE READ WARNINGS Improper use can cause safety hazards, or damage to your furniture and household items. Warning Don't Why it's important Serious injury • • Assemble following all instructions using Improper assembly, use or loading or death may all indicated parts and hardware provided.
  • Page 4 Get to know your Boards A191496A H186529 H186529 Q191485 Q191486 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 5 Get to know your Fasteners A191496A Fasteners are shown actual size. [ 4 ] H157571 [ 20 ] H35251 M6-1 x 12mm #10 x 1/2" [ 4 ] H75558 [ 8 ] H29825 #1/4 - 20 x 1/2" Washer [ 4 ] H35188 [ 8 ] Lock Nut 1/4-20...
  • Page 6 Assemble Components STEP A191496A Team Lift [ 2 ] H157571 [ 2 ] H29206 Bumper M6-1 x 12mm H186529 H186529 Q191485 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 7 Assemble Components STEP A191496A Team Lift [ 2 ] [ 2 ] H157571 H29206 Bumper M6-1 x 12mm Q191486 H186529 H186529 Q191485 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 8 Assemble Components STEP A191496A Team Lift [ 20 ] H35251 #10 x 1/2" Q191486 H186529 H186529 Q191485 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.

  • Page 9: Assembly Options

    Assembly Options STEP A191496A 25mm (1 inch) Maximum WARNING The gap between the top of the mattress and the bottom of the headboard should not be greater than 1 inch. A larger gap could lead to head entrapment or strangulation for very young children, causing serious injury or death.
  • Page 10 Assemble Components STEP A191496A [ 8 ] [ 8 ] [ 4 ] H29825 [ 4 ] H75558 H35188 Washer Lock Nut 1/4-20 #1/4 - 20 x 1/2" Refer to bed frame manufacturer’s instructions for attaching bed frame to headboard. Consulte las instrucciones del fabricante del marco de cama para sujetar el marco de la cama a la cabecera.
  • Page 11 Cleaning and Maximum Loading STEP A191496A Gently clean surfaces with a damp sponge eraser. Maximum Weight: 0 Lbs. Peso Máximo: 0 Libras Poids Maximum: 0 kilogramme Congratulations! You are all done. If you have any questions or concerns, please call. Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.

  • Page 12: Parts List

    PARTS LIST A191496A ARQ165CR Label Qty. Part Number Description W186666 HEADBOARD PANEL Q191485 Q191485 LEFT LEG ASSEMBLY Q191486 Q191486 RIGHT LEG ASSEMBLY H186529 H186529 HORIZONTAL BAR [ 8 ] H171233 ARQ165MH Description Label Qty. Part Number W206553 HEADBOARD PANEL Q191485 Q191485 LEFT LEG ASSEMBLY Q191486...
