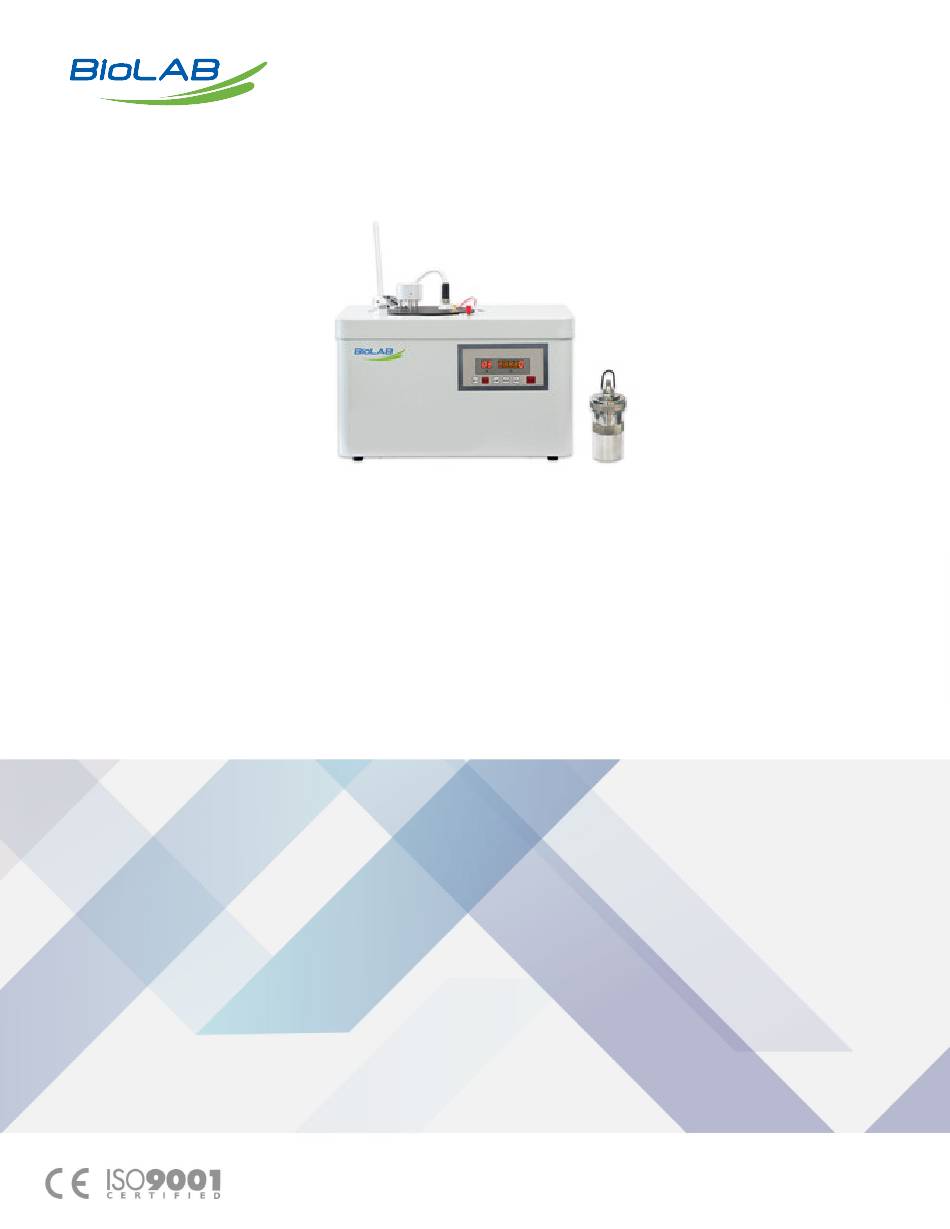

- Page 1 OPERATING MANUAL AUTOMATIC OXYGEN BOMB CALORIMETER BPTL-303 www.biolabscientific.com...
- Page 2 INDEX 1. Instrument characteristics and scope 2. Main technical specification and parameters 3. Instrument structure 4. Operation methods 5. Operation procedure and calculation methods 6. Full set and technical documents Appendix 1: Oxygen Bomb Diagram Appendix 2: Absolute temperature...
- Page 3 1. Instrument characteristics and scope The instrument is designed and made as per the national standard “Test Methods for Calorific Value of coal”, “Test Methods for Calorific Value of Petroleum Products” and “Oxygen Bomb Calorimeter”. The heat capacity of the instrument is 14000 J/K～15000 J/K, and it is suitable to determine calorific value of combustible materials such as petroleum products without water (gasoline, jet fuels, diesel oil and fuel oils, etc.), coal, coke and paraffin, etc.
-
Page 4: Instrument Structure
3. Instrument structure The structure of the instrument is shown as Fig.1. Figure 1 (1) Thermometer (2) Stirring motor (3) Temperature sensor (4) Handle (5) Controlling panel (6) Oxygen bomb 1. Self-sealed oxygen bomb In order to protect the oxygen bomb from acid corrosion, the oxygen bomb is made of stainless steel ICrI8Ni9Ti. - Page 5 The bucket is made of stainless steel plate. After placing the oxygen bomb into the water bucket, please add water into the water bucket to submerge the oxygen bomb. But there should be about 250～500 ml space from the water surface to the upper edge of the inner bucket. The bucket can hold 3000 g water. There is an electric stirrer in the water bucket.
-
Page 6: Operation Methods
are Power, Stir, Data, End, Ignite, and Reset, total six switches and a digital tube of seven digits on the panel of controller, and they are used for operation and temperature display during the whole test. The two numbers at the left indicates the temperature measurement times and the five numbers at right indicates the real temperature. - Page 7 5. Operation procedure and calculation methods 1. Preparation (1) Carefully read Operation Manual before use. (2) Carefully read GB/T 213 “Test Methods for Calorific Value of Coal” or GB/T384 “Test Methods for Calorific Value of Petroleum Products” and Calibration and Inspection Regulation of People’s Republic of China JJG 672 “Oxygen Bomb Calorimeter”...
- Page 8 into an arc shape as close as possible to the surface of the coal sample. Then add 10 ml distilled water into the oxygen bomb and screw on the cover of oxygen bomb tightly. Then fill oxygen into oxygen bomb until the pressure in the oxygen bomb is 2.8 MPa～3.0 MPa through oxygen pipe.
- Page 9 Q1 – Calorific value of benzoic acid, J/g M1 – Weight of benzoic acid, g Q2 – Calorific value of ignition wire, J/g M2 – Weight of ignition wire, g V – The volume of sodium hydroxide used, ml Q3 – Titration correction for heat of nitric acid (the heat of 0.1 mol nitric acid is 5.9 J), J/ml; ΔT –...
- Page 10 A. Maintenance of oxygen bombs (1) Before each formal test, it is necessary to immerse the oxygen bomb with sufficient air (not less than 3.0MPa) in water for several minutes to observe whether the sealing performance of the oxygen bomb is good and ensure the reliability of the test results.
- Page 11 Warning: If there is any trouble appears, please cut off the power supply immediately. Then ask a professional to check and repair it. You can use it only after the problem is solved to avoid any accidents. 6. Full set and technical documents 1.
- Page 12 Appendix 1: Oxygen Bomb Diagram Figure 3 1. Valve handle 2. O type seal ring 3. Fixing ring for seal ring 4. Seal ring 5. Bomb nut 6. Hexagon nut 7. Conductive sleeve 8. Conductive pole 9. Bomb cylinder 10. Ignition wire 11. Oxygen bomb seat 12. Handle ring 13.
