ABSCO SHEDS HIGHLANDER 3045HK Manual

Hide thumbs Also See for HIGHLANDER 3045HK:

Advertisement

Quick Links

Download this manual
AU: 1800 029 701
NZ: 0800 466 444
For construction in non-cyclonic areas
Wind rating: N2 as per AS4055-2021.
If you require a higher wind rating please contact
us: admin@absco.com.au or 1800 029 701
NOTE: This shed can be upgraded to wind
rating: C1 as per AS4055-2021 with the additional
purchase of a Cyclone Kit.
DOWNLOAD
OUR APP FOR
ASSEMBLY
VIDEOS
Absco Industries

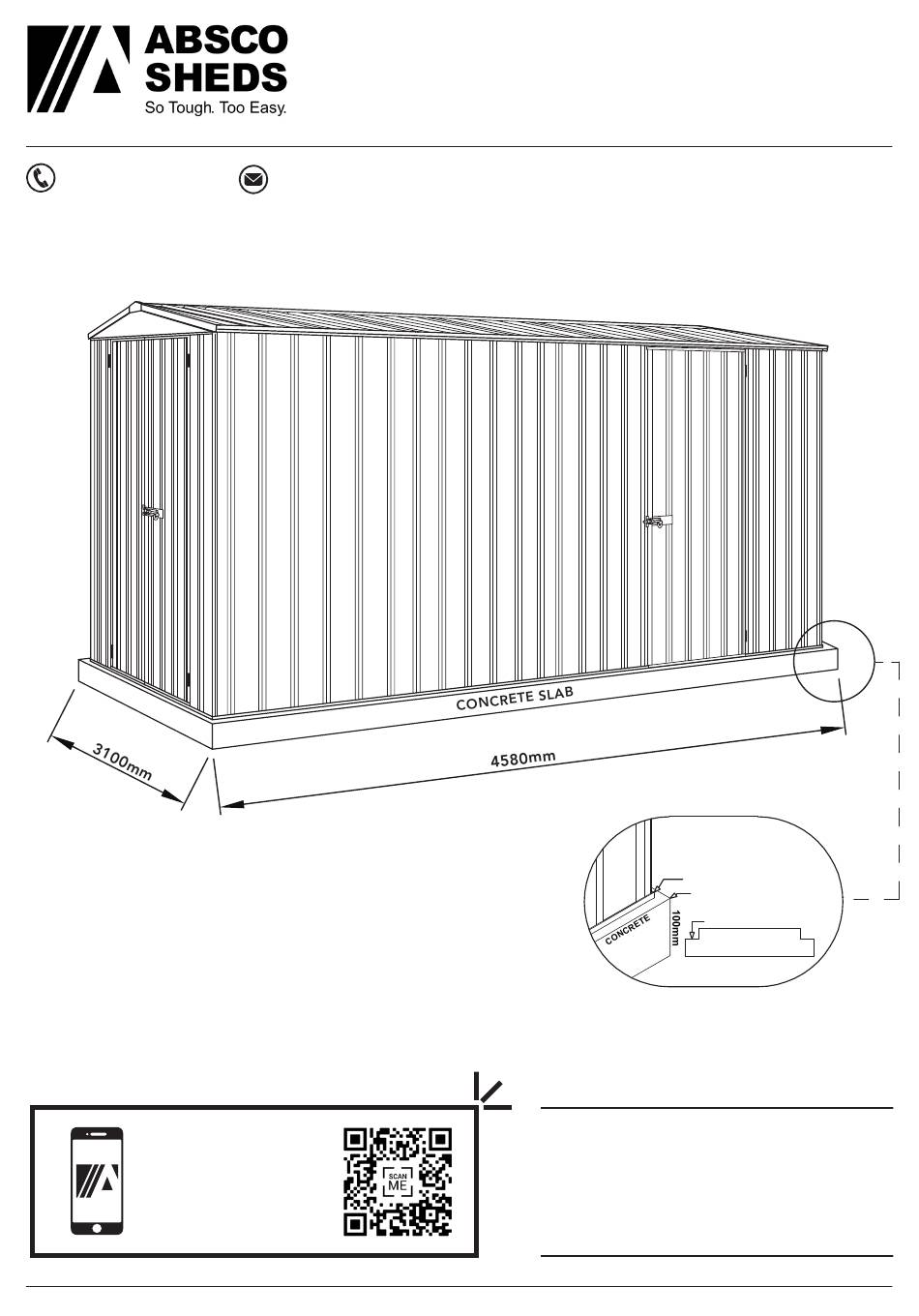

Assembly Instruction Manual
ABSCO HIGHLANDER SHED
MODEL: 3045HK
3.00mW x 4.48mD x 2.30mH
admin@absco.com.au
www.abscosheds.com.au
WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A
REBATED EDGE 25mm DEEP
AROUND THE PERIMETER
THIS WILL HELP WATER EGRESS
FROM THE BASE OF THE SHED
We thank you for choosing an Australian made
shed. For further assistance please visit our detailed
instructional video library at
Http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be
number ONE, so please let us know what you think
of our instructions. Feedback makes us better.
feedback@absco.com.au
ABSCO INDUSTRIES
ASSEMBLY INSTRUCTION MANUAL
Absco Industries
Premier Shed Model: 23151GK
When laying concrete slab, ensure there
is a rebated edge 25mm deep around
the perimeter. This will help water egress
from the base of the shed.
PLEASE LEAVE A REVIEW
SHED MODEL: 23151GK
Tell us about your experience!
Visit www.abscosheds.com.au/review
Model: 3045HK
21/04/2025
FRONT: 2.26m
SIDE:
1.52m
HEIGHT: 1.95m
BOTTOM CHANNEL
REBATED EDGE
75mm WIDE REBATE
CONCRETE SLAB
21-11-2017
1.2
PAGE 01
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the HIGHLANDER 3045HK and is the answer not in the manual?

Questions and answers

Related Manuals for ABSCO SHEDS HIGHLANDER 3045HK

Summary of Contents for ABSCO SHEDS HIGHLANDER 3045HK

  • Page 1 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH AU: 1800 029 701 admin@absco.com.au NZ: 0800 466 444 www.abscosheds.com.au Absco Industries Premier Shed Model: 23151GK FRONT: 2.26m SIDE: 1.52m HEIGHT: 1.95m WHEN LAYING YOUR CONCRETE SLAB, ENSURE THERE IS A REBATED EDGE 25mm DEEP AROUND THE PERIMETER BOTTOM CHANNEL...
  • Page 2 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH GENERAL INSTRUCTIONS • Before commencing any assembly, read through these instructions in detail to gain a thorough understanding of assembly methods and associated details. • Unpack the carton and carefully identify and check off all the parts against the parts described and illustrated on "COMPONENTS PACKING LIST"...

  • Page 3: Component Description

    ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH COMPONENT PACKING LIST Check off all components. MAIN PACK CARTON (PACK 1 OF 3) COMPONENT PART COMPONENT PART CHK QTY DESCRIPTION DESCRIPTION STEEL SHEET STEEL SHEET 1974mm X 773mm 1974mm X 711mm STEEL SHEET STEEL SHEET 1974mm X 773mm...
  • Page 4 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH COMPONENT PACKING LIST Check off all components. CHANNEL SET COMPONENT PART COMPONENT PART CHK QTY DESCRIPTION DESCRIPTION CHANNEL CHANNEL 77CL 77CR L = 1496.5mm L = 1496.5mm CHANNEL CHANNEL 81CL 81CR L = 1126.5mm L = 1126.5mm...
  • Page 5 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH COMPONENT PACKING LIST Check off all components. CHANNEL SET (CONT.) COMPONENT PART COMPONENT PART CHK QTY DESCRIPTION DESCRIPTION JAMB JAMB L = 788mm L = 2034mm JAMB JAMB L = 1120mm L = 2034mm JAMB JAMB...
  • Page 6 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH COMPONENT PACKING LIST Check off all components. COMPONENT PART COMPONENT PART CHK QTY DESCRIPTION DESCRIPTION PSTKSGL - SINGLE DOOR FITTINGS PACK DOOR FAST PADBOLT FAST PADBOLT HASP PHILLIPS FAST DRILL DRILL BIT DRIVER BIT 8G x 10 mm SELF...
  • Page 7 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH COMPONENT PACKING LIST Check off all components. MAIN PACK CARTON (PACK 2 OF 3) COMPONENT PART COMPONENT PART CHK QTY DESCRIPTION DESCRIPTION STEEL SHEET CHANNEL C1954 2034mm X 773mm L = 1954mm STEEL SHEET HIGH PORTAL PACK 2034mm X 773mm...
  • Page 8 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH COMPONENT PACKING LIST Check off all components. HIGH GARAGE FRONT FRAME PACK COMPONENT PART COMPONENT PART CHK QTY DESCRIPTION DESCRIPTION CHANNEL CHANNEL C2300 K0285 L = 2300mm L = 285mm CHANNEL CHANNEL N1820...
  • Page 9 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH Guide on Splitting Sheets • This product comes with a perforated sheet that is designed to be split into two smaller sheets. • These sheets have sharp edges. Once separated please use appropriate foot and hand protection when handling.
  • Page 10 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH SNAPTiTE ASSEMBLY GUIDE The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for tools and fasteners. To assemble each panel, the perimeter channels are secured to the top and bottom of each panel. Gently tap the channel over the SNAPTiTE lugs on the sheet, working along the sheet.
  • Page 11 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH Guide on Joining Spliced Channels The text marked on all parts must be shown on the same side as each other JOIN>> JOIN>> <<JOIN JOIN>> Step 1. Step 2. Position the channels and the Join the fi...
  • Page 12 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH PRE-ASSEMBLY OF SPLICED CHANNELS Join together 32 x channel sections using 16 x channel joiners (Part CSJ) NOTE: Some channels may have holes in them - You will need to redrill holes where CSJ joining channel covers them.
  • Page 13 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH PRE-ASSEMBLY OF SPLICED CHANNELS Join together 14 x channel sections using 7 x channel joiners (Part CSJ) NOTE: Some channels may have holes in them - You will need to redrill holes where CSJ joining channel covers them.
  • Page 14 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH Guide on Joining a Spliced Ridge Beam If present, remove plastic coating from top side of ridge beam capping before assembly. Follow these three steps to assemble a ridge beam. ZARSP 225mm 50mm...
  • Page 15 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH PRE-ASSEMBLY OF SPLICED RIDGE BEAM ZARSP = 2x 97B 2x 97BL 2x 97BR Absco Industries Assembly Instruction Manual Model: 3045HK 21/04/2025...
  • Page 16 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH JOINING RIDGE BEAMS To make the total span we must now join the two ridge beams Cut away these two only. Using a hacksaw, remove one protruding section of each ridge beam, this will allow the sections to butt up neatly to each other.
  • Page 17 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH OVERVIEW OF ROOF COMPONENTS Absco Industries Assembly Instruction Manual Model: 3045HK 21/04/2025...
  • Page 18 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH OVERVIEW OF WALL COMPONENTS Absco Industries Assembly Instruction Manual Model: 3045HK 21/04/2025...
  • Page 19 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH ROOF PANEL ASSEMBLY 4 required. When completed there will be four sections with 87A lip at one end only. Two panels will have part 87A fitted to this end only. Fit 81C to edge of sheet with pre- punched holes.

  • Page 20: Side Panel Assembly

    ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH SIDE PANEL ASSEMBLY 3 required. One panel requries sheet H30 this end. Two panels require sheet H30 this end. H30 is a corner sheet and must be orientated towards the shed corners when panels finally joined.
  • Page 21 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH SIDE PANEL ASSEMBLY SINGLE DOOR PANEL 1 required. Absco Industries Assembly Instruction Manual Model: 3045HK 21/04/2025...
  • Page 22 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH JOINING WALL AND ROOF PANELS To make the total span we must now join sections of sheeting together for the roof and wall. Trim the channels by 16.5mm to 16.5 16.5 allow the sheets to be overlapped.
  • Page 23 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH DOOR PANEL ASSEMBLY SINGLE DOOR 1 required. Vertical door channels are installed in the opposite orientation compared to the horizontal door channels. Long Short fl ange fl ange of of channel channel Absco Industries Assembly Instruction Manual...

  • Page 24: Door Panel Assembly

    ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH DOOR PANEL ASSEMBLY SINGLE DOOR PANEL NOTE: Nuts and bolts are also supplied and may be used instead of rivets. Use a 4mm drill bit to enlarge these holes in the jamb NOTE: The holes to fasten the padbolt hasp are not pre-punched to allow for proper alignment.

  • Page 25: End Panel Assembly

    ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH END PANEL ASSEMBLY 1 required. Outside of shed. Inside of shed. Turn the panel over. Fit the two large gables (16L & 16R) to the inside face of the top channel (77B) Absco Industries Assembly Instruction Manual Model: 3045HK...
  • Page 26 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH DOOR PANEL ASSEMBLY Locate the narrow DOUBLE DOOR pan at this end. Note: These sheets have not been pre-punched. Pre-drill door sheets with a 3mm drill bit using the pre-punched components shown as templates Vertical door channels are installed in the opposite...
  • Page 27 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH HIGH PORTAL FRAME DETAILS 2 required. PART C1482 PART C1954 80mm TIP: An easy way to make sure that the angle at the top of the portal frame is correct is to use the gable wall panel as a template to lay the sections out.
  • Page 28 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH HIGH PORTAL FRAME ASSEMBLY STEP 1. x 19 STEP 2. Secure ridge plates x 30 to apex plates STEP 3. M10 Dynabolt STEP 4. High-portal to panel connection, see section PANEL CONSTRUCTION for further infomation.
  • Page 29 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH HIGH CENTRE PORTAL ASSEMBLY SUPPORT PHOTOS STEP 1. Draw pattern on the concrete in accordance with the dimensions detailed in the assembly instructions. Absco Industries Assembly Instruction Manual Model: 3045HK 21/04/2025...
  • Page 30 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH HIGH CENTRE PORTAL ASSEMBLY SUPPORT PHOTOS STEP 2. Understand where components are to be positioned Absco Industries Assembly Instruction Manual Model: 3045HK 21/04/2025...
  • Page 31 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH HIGH CENTRE PORTAL ASSEMBLY SUPPORT PHOTOS STEP 3. Join C1482 to C1954 Absco Industries Assembly Instruction Manual Model: 3045HK 21/04/2025...
  • Page 32 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH HIGH CENTRE PORTAL ASSEMBLY SUPPORT PHOTOS STEP 4. Join C1482 to C1482 Absco Industries Assembly Instruction Manual Model: 3045HK 21/04/2025...
  • Page 33 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH HIGH CENTRE PORTAL ASSEMBLY SUPPORT PHOTOS STEP 5. Secure ridge plate (RBP) Absco Industries Assembly Instruction Manual Model: 3045HK 21/04/2025...
  • Page 34 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH HIGH CENTRE PORTAL ASSEMBLY SUPPORT PHOTOS STEP 6. Secure multi purpose brackets Absco Industries Assembly Instruction Manual Model: 3045HK 21/04/2025...
  • Page 35 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH HIGH CENTRE PORTAL ASSEMBLY SUPPORT PHOTOS STEP 7. Turn frame over and repeat steps 4 and 5. Absco Industries Assembly Instruction Manual Model: 3045HK 21/04/2025...
  • Page 36 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH HIGH FRONT FRAME ASSEMBLY STEP 1 of 2 16mm SELF DRILLING TEK SCREWS USE FIT THE CHANNELS WHICH FORM THE BOXED SECTIONS JOIN PART NUMBERS TOGETHER WITH THE SMALLER C2300 C0240 EDGE NEATLY INSIDE THE ONLY...
  • Page 37 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH HIGH FRONT FRAME ASSEMBLY STEP 2 of 2. FIT ONE 100mm CHANNEL SECTION (C0100) TO BOX THE BASE OF EACH OUTSIDE LEG AS SHOWN. THESE WILL LATER BE USED FOR SECURING THE FRAME TO THE CONCRETE SLAB. SECURE THE RIDGE SECURE THE SMALL PLATE TO THE...
  • Page 38 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH HIGH FRONT FRAME ASSEMBLY SUPPORT PHOTOS STEP 1. Draw pattern on the concrete in accordance with the dimensions detailed in the assembly instructions. Absco Industries Assembly Instruction Manual Model: 3045HK 21/04/2025...
  • Page 39 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH HIGH FRONT FRAME ASSEMBLY SUPPORT PHOTOS STEP 2. Understand where components are to be positioned. Absco Industries Assembly Instruction Manual Model: 3045HK 21/04/2025...
  • Page 40 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH HIGH FRONT FRAME ASSEMBLY SUPPORT PHOTOS STEP 3. Join C0100 to C2034 Absco Industries Assembly Instruction Manual Model: 3045HK 21/04/2025...
  • Page 41 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH HIGH FRONT FRAME ASSEMBLY SUPPORT PHOTOS STEP 4. Join C2034 to M1484 Absco Industries Assembly Instruction Manual Model: 3045HK 21/04/2025...
  • Page 42 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH HIGH FRONT FRAME ASSEMBLY SUPPORT PHOTOS STEP 5. Join K0285 to C2034 & N2070. Absco Industries Assembly Instruction Manual Model: 3045HK 21/04/2025...
  • Page 43 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH HIGH FRONT FRAME ASSEMBLY SUPPORT PHOTOS STEP 6. Fit mulitpurpose brackets. Absco Industries Assembly Instruction Manual Model: 3045HK 21/04/2025...
  • Page 44 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH HIGH FRONT FRAME ASSEMBLY SUPPORT PHOTOS STEP 7. Assemble the C0240 & C2300 sections. Absco Industries Assembly Instruction Manual Model: 3045HK 21/04/2025...
  • Page 45 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH HIGH FRONT FRAME ASSEMBLY SUPPORT PHOTOS STEP 8. Join all sections together. Absco Industries Assembly Instruction Manual Model: 3045HK 21/04/2025...
  • Page 46 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH HIGH FRONT FRAME ASSEMBLY SUPPORT PHOTOS STEP 9. Turn over frame and repeat steps 4 to 8. Absco Industries Assembly Instruction Manual Model: 3045HK 21/04/2025...
  • Page 47 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH HIGH FRONT FRAME ASSEMBLY SUPPORT PHOTOS STEP 10. Fully assembled front frame. Absco Industries Assembly Instruction Manual Model: 3045HK 21/04/2025...
  • Page 48 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH Prepunched holes to outside edge Note: When this front panel is fastened to the front frame all three door jambs should finish flush with the edge of the front frame. Refer to “FIG.
  • Page 49 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH HIGH PORTAL FRAME DETAILS Recommended slab dimensions - 4580mm x 3100mm External wall dimensions - 4480mm x 3000mm Internal wall dimensions - 4440mm x 2960mm FIG 8A 1600 1450 1380 Concrete slab Centre of 4580mm x 3100mm...
  • Page 50 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH PANEL CONSTRUCTION NOTE: Take care to ensure that all wall panels are not upside down. The top channels of each panel are pre-punched for attaching roof sheeting. The base channels are not. With a concrete slab drill a 10mm hole instead of using the supplied hasp.
  • Page 51 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH INSIDE VIEW ROOF CONSTRUCTION STEP 1. STEP 2. Slide the roof panels into position and Secure ridge beam to secure with only one screw in each gable sections with two corner at this stage.
  • Page 52 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH ANCHORING OF SHED FINAL CONSTRUCTION STEP 1. Secure the roof panels to the wall panels Location of 20 concrete as shown. anchors. Refer to section PORTAL STEP 2. FRAME for portal anchor Secure the roof panels to the internal locations.

  • Page 53: Door Installation

    ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH DOOR INSTALLATION Secure front doors to the front panel in the same manner as the side door was fitted. Fasten to slab drill 12mm hole centrally to pick up padbolt Use the 75mm Jamb Sections (93B) as padbolt supports.
  • Page 54 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH Absco Large Gable Roof Shed Notes General • 1.G This instruction manual shall be read in conjunction with other consultants drawings, specifi cations and written instructions provided by Absco and/or their representatives. •...
  • Page 55 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH Absco Large Gable Roof Shed Notes Steelwork • 1.S All structural steelwork shall have a corrosion protection system applied consistent with AS/NZS 2312- 2002. • 2.S All structural steelwork detailed within this installation manual shall be minimum Grade 550 for roll formed sections (including roof and wall sheeting and portal frame members) and Grade 250 for angle sections.
  • Page 56 ABSCO HIGHLANDER SHED MODEL: 3045HK 3.00mW x 4.48mD x 2.30mH Absco Large Gable Roof Shed Notes Supporting Slab and Foundations • 1.F The supporting slab foundation for the garden shed shall be of a minimum size indicated on the installation manual.
  • Page 57 Absco Sheds Storage Guidelines • Absco Sheds are designed to be weatherproof for normal weather conditions. In the event of extreme weather conditions such as heavy rain, combined with high wind gusts, the ridge capping, sheeting joins, screw fi xings etc., may exhibit minor deformations which may allow some water entry. These areas should be checked regularly to ensure that maximum strength and protection is maintained.
  • Page 58 Lifetime Warranty Statement 1. DEFINITIONS 3. WARRANTY CLAIM PROCEDURE In this document, capitalised terms have the following meaning: 3.1. If, during the Lifetime Warranty Period, You believe the Product has a “ABSCO” means John Scholtes Investments (No. 1) Pty Ltd trading Defect, You must comply with the procedure set out in this clause 3.
  • Page 59 4. WARRANTY LIMITATIONS / EXCLUSIONS 4.1. To the extent permitted by law, this warranty will not apply where: the Product has been installed or used for a purpose that is not an Authorised Purpose; the Product has not been installed, assembled, maintained and/or special, indirect or consequential loss or damage of any nature operated in complete compliance with ABSCO’s Product Guide;...
