How do I assemble and disassemble the Tiger Lake fanless system?
Question
2021/4/26
Release date
iBOX-1185G7E, iBOX-1145G7E, iBOX-1115G4E, iBOX-6305E
Product
□
FAQ type
Answer:
If you would like to assemble and disassemble the Tiger Lake fanless system, please refer the following steps to
set it up.
Here is the demonstration video for your reference:

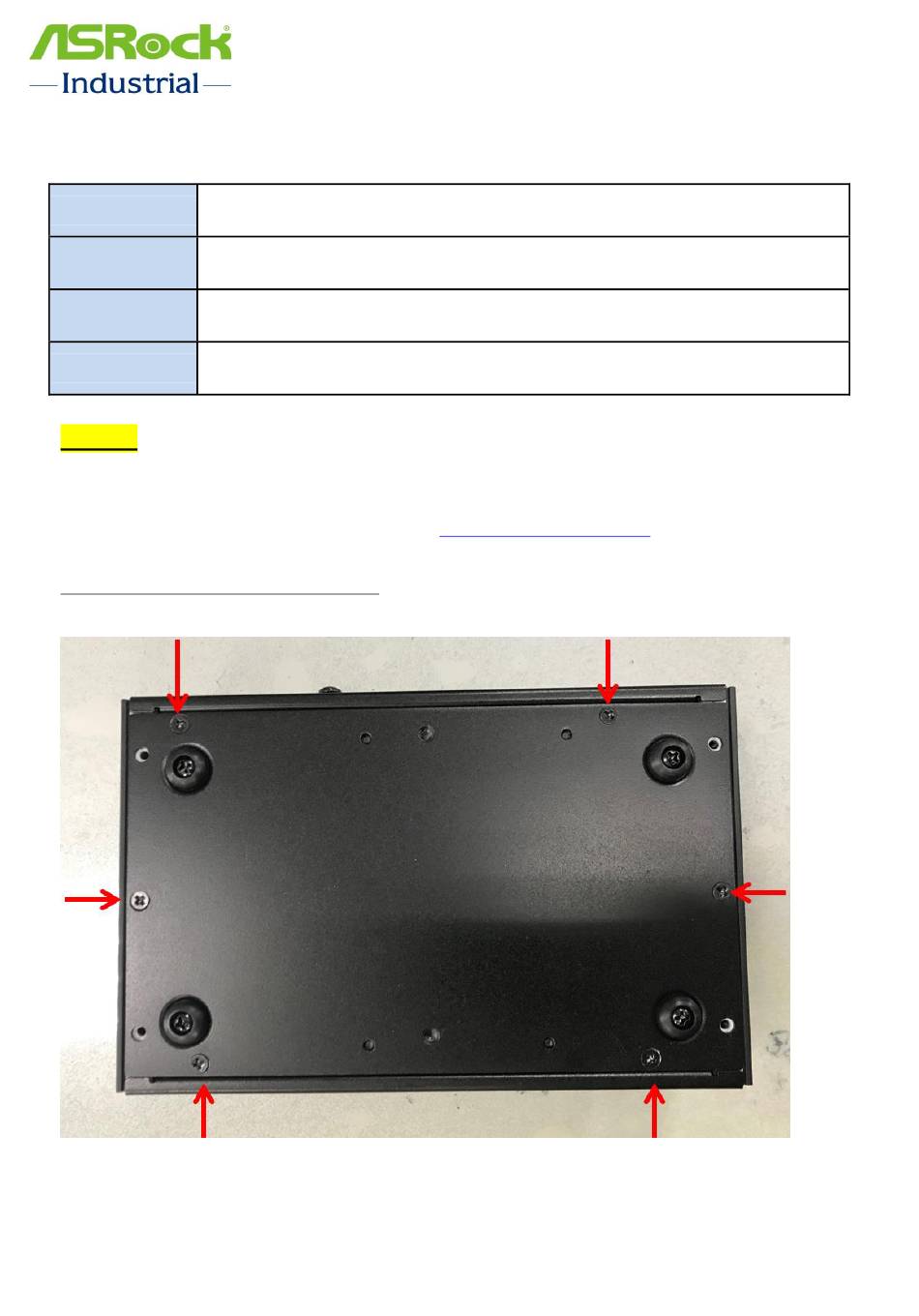

Disassembling the IBOX-TGL series system:
1. Remove M3x5 screws from the bottom cover plate.
2. Remove M3x5 screws from the front panel.
