Consumable Replacement
Printhead and Damper Replacement
Recommended Items:
Explanation: The printhead should be replaced only when it displays print quality issues.

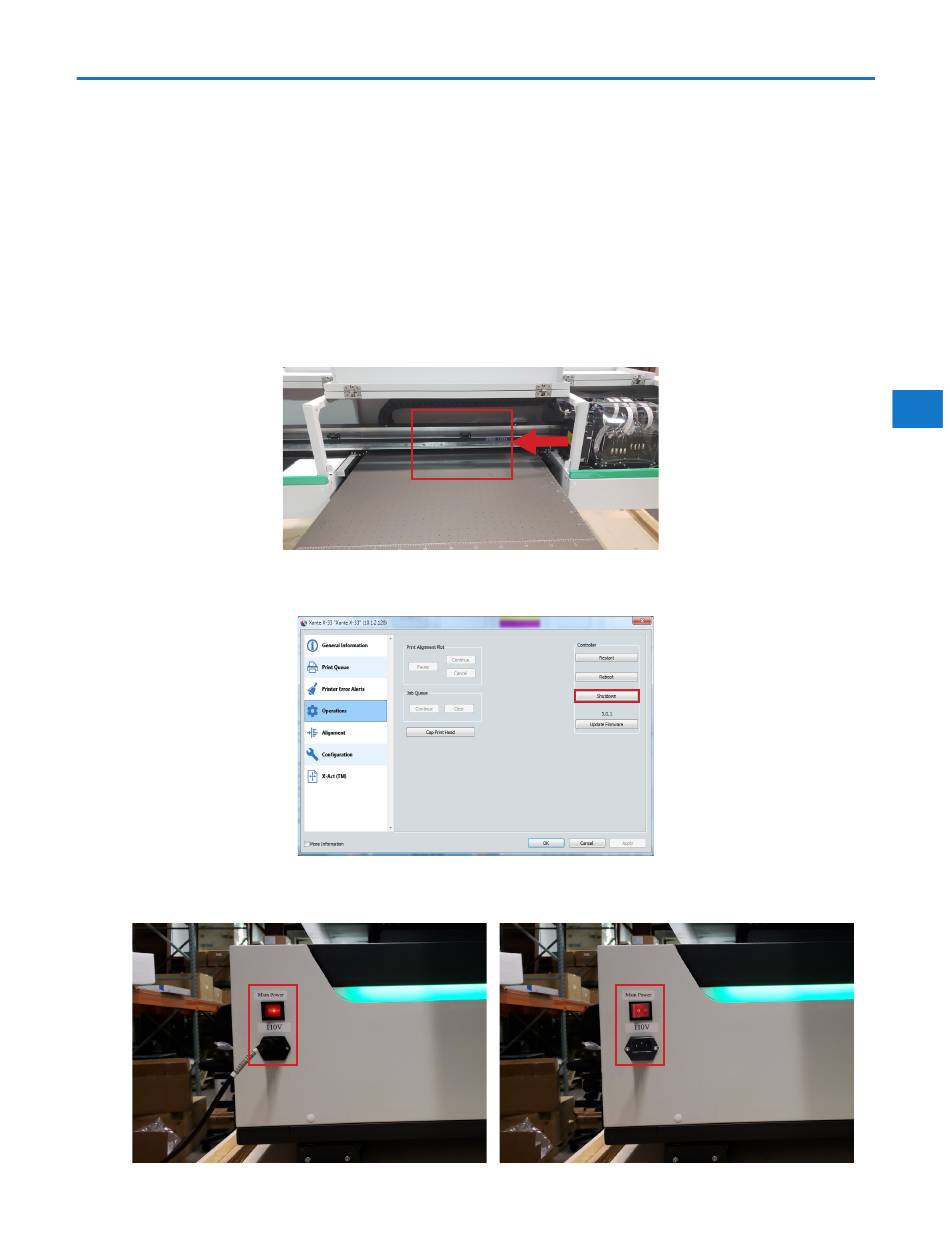

Removing the Printhead and Printhead Ribbon Cables
1. Use the front panel to move the printhead carriage to the middle of the print bed.
2. In iQueue, double-click the printer's icon at the bottom of the page. Select the Operations module. Select Shutdown.
3. Once the shutdown process is complete, press the main power switch. Unplug the power cable, then power the switch
back to the ON position to discharge any residual power for 5secs. Power the switch back to the OFF position.
Gloves and Eye Protection
#2 Screwdriver
Syringe
X-33 Operation Manual
5
1
5-7
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Xante X-33
Summary of Contents for Xante X-33
- Page 1 3. Once the shutdown process is complete, press the main power switch. Unplug the power cable, then power the switch back to the ON position to discharge any residual power for 5secs. Power the switch back to the OFF position. X-33 Operation Manual...
- Page 2 Grasp the front and back of the damper when removing to avoid ink linkage. If the side of the damper is squeezed, ink leakage will occur. 7. Using tape or a zip tie, secure the dampers out of the way. Place a cloth under the dampers in case ink leage occurs. X-33 Operation Manual...
- Page 3 9. Loosen the screws from the printhead cable bracket. Gently lift under the plastic cover and disconnect the old printhead cables from the decryption card for the printhead being replaced. Pull the cables through the printhead cable bracket. Lift and remove the printhead from the printer. X-33 Operation Manual...
- Page 4 Left Bottom Right Bottom Left Top Right Top 3. Insert the printhead into the carriage. Reinstall the three Phillips screws to secure the printhead in place. 5-10 X-33 Operation Manual...
- Page 5 2. Remove the old nut and O-ring from the ink supply line. Install the new nut and O-ring provided with the new damper. 3. Unpackage the new damper. Install the damper on the ink supply line. Slide the O-ring and nut so they meet up with the new damper. Tighten the nut to secure the damper in place. 5-11 X-33 Operation Manual...
- Page 6 7. Tighten the printhead ribbon cable bracket screws, then replace the plastic housing on the carriage. 8. Close the carriage covers. 9. Turn on the main power switch. Turn on the front panel power. Allow the printer to reinitialize and return to the home position. 5-12 X-33 Operation Manual...
- Page 7 It is recommended to use transparency sheets when printing the nozzle check to view both CMYK and white easily. If the nozzle test does not print each channel completely, repeat steps 1 and 2. After replacing the printhead, the printer alignments may need to be completed (see Operation Manual 4-6 - 4-13). 5-13 X-33 Operation Manual...
