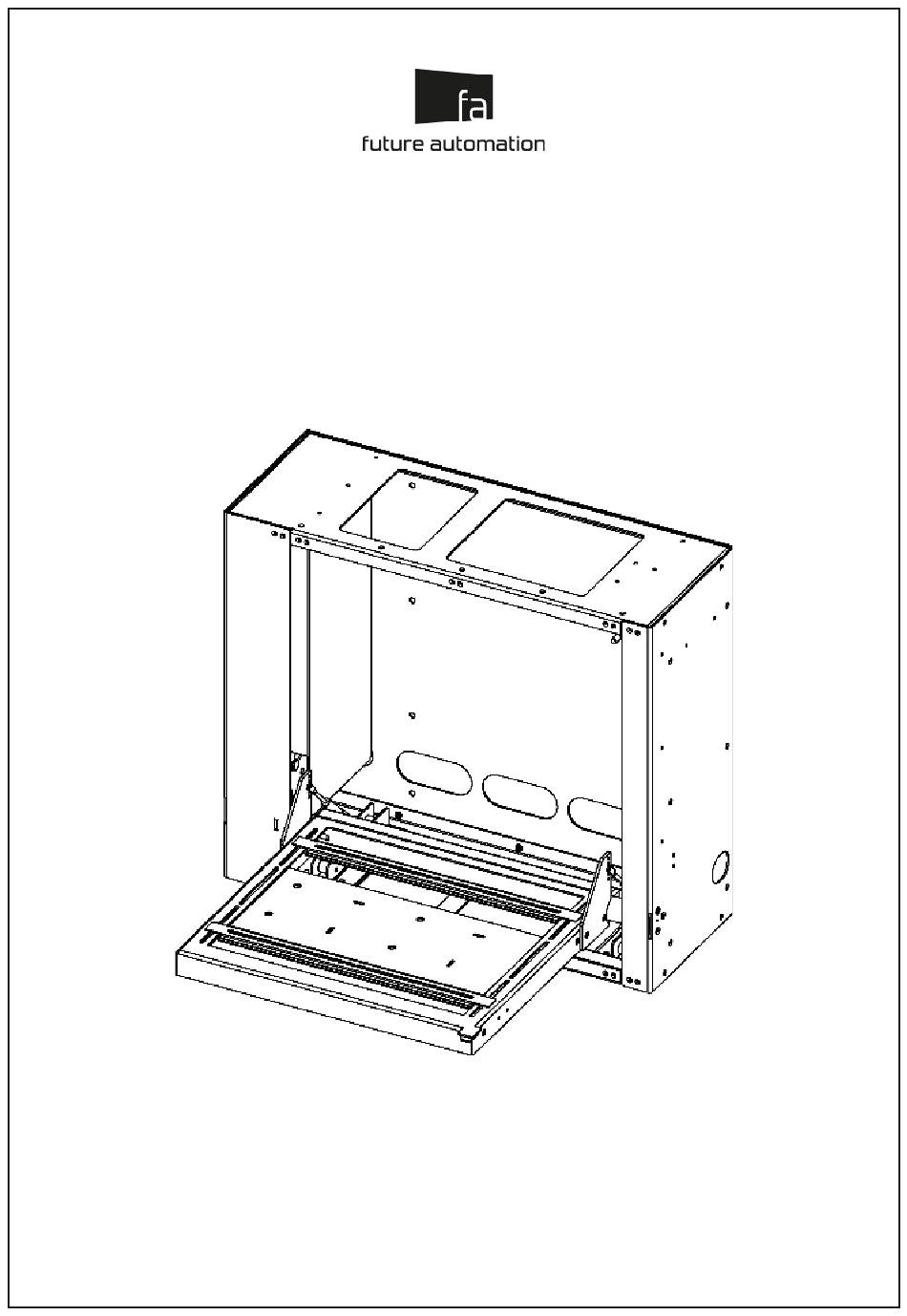

- Page 1 P H2 PR O JECT OR H IN GE M EC H A N IS M I N S TA L LA T I O N I N ST R U CTI ON S I SSUE 007...
-
Page 3: Sa Fety Di Sc La Imer
Clean only with a dry cloth and always unplug any electrical items being used in conjunction with this product before cleaning. Future Sound & Vision trading as Future Automation intend to make this and all documentation as accurate as possible. However, Future Automation makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. - Page 4 Under the warranty, Future Automation aims to either solve the issue remotely (via telephone or email support) or if the mechanism requires a part, arrange a visit to your premises by a Future Automation approved engineer or send replacement items where appropriate.
-
Page 5: Gui D E C O Nt E Nts
GUI D E C O NT E NTS SAFE TY DISCLA IM ER PR OD UCT WA RR A NT Y & RISK ASSESS M EN T GUIDE C ONT ENTS PACKA GE CONTENT S MECH ANISM QUICK-ST A RT GUI D E INITIAL TEST ING WALL CUT OUT IN-W ALL INSTA LL AT ION... -
Page 6: Package Contents
PACKAG E CONT ENTS 1 - PH2 1.1 - MAIN CARRIAGE 1.2 - INNER COVERS 1.3 - PROJECTOR MOUNT BARS 1.4 - DOOR PANEL MOUNT 2 - CONTROL BOARD 3 - INFRARED (IR) REMOTE CONTROL ITEMS NOT SHOWN ON PAGE... - Page 7 MEC HA NI SM QUI CK - S TART GUI DE Some Future Automation mechanisms may ship with the control box disconnected to prevent damage during transit. In order to operate the mechanism, the control box will need to reconnected, then have mains power applied along with the desired control method.
- Page 8 INI T I A L TE S T I NG • Unpack and check the mechanism fully for any damage or obvious visual faults before operation. • Test the mechanism by running it between the fully OPEN and fully CLOSED positions (refer to the mechanism control section of the instructions for more details).
- Page 9 W ALL C UT OUT • As the PH2 Mechanism has been design for in-wall fixing, it requires a void size of Width 800mm [31.5”] x Height 710mm [28.0”] x Depth 300mm [11.8”] + Front Panel Thickness. • It is strongly recommended that a supporting structure is attached to all four faces of the Main Enclosure.
- Page 10 IN- W AL L IN S T A L L A TI ON • Using the Infrared (IR) Remote Control, open the PH2 mechanism to its fully OPEN position (refer to the mechanism control section of the instructions for more details). •...
- Page 11 IN- W AL L IN S T A L L A TI ON ( CONT. ) • The PH2 Mechanism should be secured into the wall cavity using suitable wall fixings (not supplied) through the 8 fixing holes indicated below.
- Page 12 P AN EL F ITT IN G • A decorative front panel can be attached to the PH mechanism to provide a clean finish when the mechanism is in the CLOSED position. • This can be mounted using the fixing hole indicated below, or by using the adhesive pads provided.
- Page 13 P ANEL F ITTING (CONT.) • To fix the decorative panel using the fixing holes, the mechanism will need to be in the OPEN position. • The internal fixing panel can be detached by removing the four side lock bolts as shown. •...
- Page 14 P RO JEC TO R M O U NTIN G • With the mechanism in the OPEN position and the Internal Fixing Panel removed, the Projector Mount Bars can be removed by release the 4 nuts that hold them from underneath.
- Page 15 M O U NT ING ( CONT .) • Place the Projector Mount Bars (with projector attached) back into the PH2 mechanism. Adjust the projector forwards and back to allow even clearance all round inside the PH2 mechanism. • Secure the Projector Mount Bars in place by replacing the four securing bolts and replace the Internal Fixing Panel.
- Page 16 SWIT CH A DJ U ST MENT S • The PH2 mechanism will be factory supplied with the CLOSED position set to 0°. If this needs adjusting, the CLOSED limit switch is located at the top of the mechanism as shown.
-
Page 17: General Control
REPLACING MECHANISM BATTERIES The standard Future Automation Infrared (IR) remote control required x2 AAA batteries to operate. These are provided with the mechanism in the Accessories Pack. These batteries can be replaced as the per the image below. - Page 18 INF RA RE D (I R) This mechanism can be controlled via the supplied 14 button Infrared (IR) Remote Control, paired with the supplied Infrared (IR) lead and sensor. The mechanism's functions can be controlled by plugging the Infrared (IR) lead and sensor into the 3.5mm IR Input Jack shown on the General Mechanism Control page.
-
Page 19: Radio Frequency
RA DIO FREQUE NCY ( RF) If purchased with the Radio Frequency (RF) control option, this mechanism can be controlled via the supplied 4 button Radio Frequency (RF) Remote Control, paired with the in-built Radio Frequency (RF) sensor. Confirmation of Radio Frequency (RF) input will be shown by a single flash of the large green LED located on the end of the control box. -
Page 20: Con T Ac Tclos U Re
CON T AC T CLOS U RE This Mechanism can be controlled via Contact Closure, utilising an 8 Pin RJ45 Connector attached to a length of CAT5 (Type 568A or 568B) cable. The mechanism’s functions can be controlled by plugging this into the RJ45 port on the mechanism control board, then shorting pins 1-8 on this connector as shown in the Contact Closure Input Table below. - Page 21 RS2 32 CON T RO L This Mechanism can be controlled via RS232, utilising a 6 Pin RJ11/RJ25 connector OR 9 Pin Serial connector attached to a length of 6 core cable. The mechanism's functions can be controlled by plugging this into the RJ11/RJ25 port on the mechanism control box, then inputting the RS232 commands shown in the RS232 Input Table below.
- Page 22 NO T E S :...
- Page 23 NO T E S :...
- Page 24 EUROPEAN OFFICE NORTH AMERICAN OFFICE Address: Address: Unit 6-8 Enterprise Park Brunel Road 127 Venture Drive Bedford Dover Bedfordshire MK41 9TG 03820 Phone: +44 (0) 1438 833577 Phone: +1 (603) 742 9181 Email: info@futureautomation.co.uk Email: info@futureautomation.net Office Hours: Office Hours: Mon - Fri 8:00 to 17:30 GMT Mon - Fri 7:00 to 17:00 EST Saturday &...
