Installation Instructions

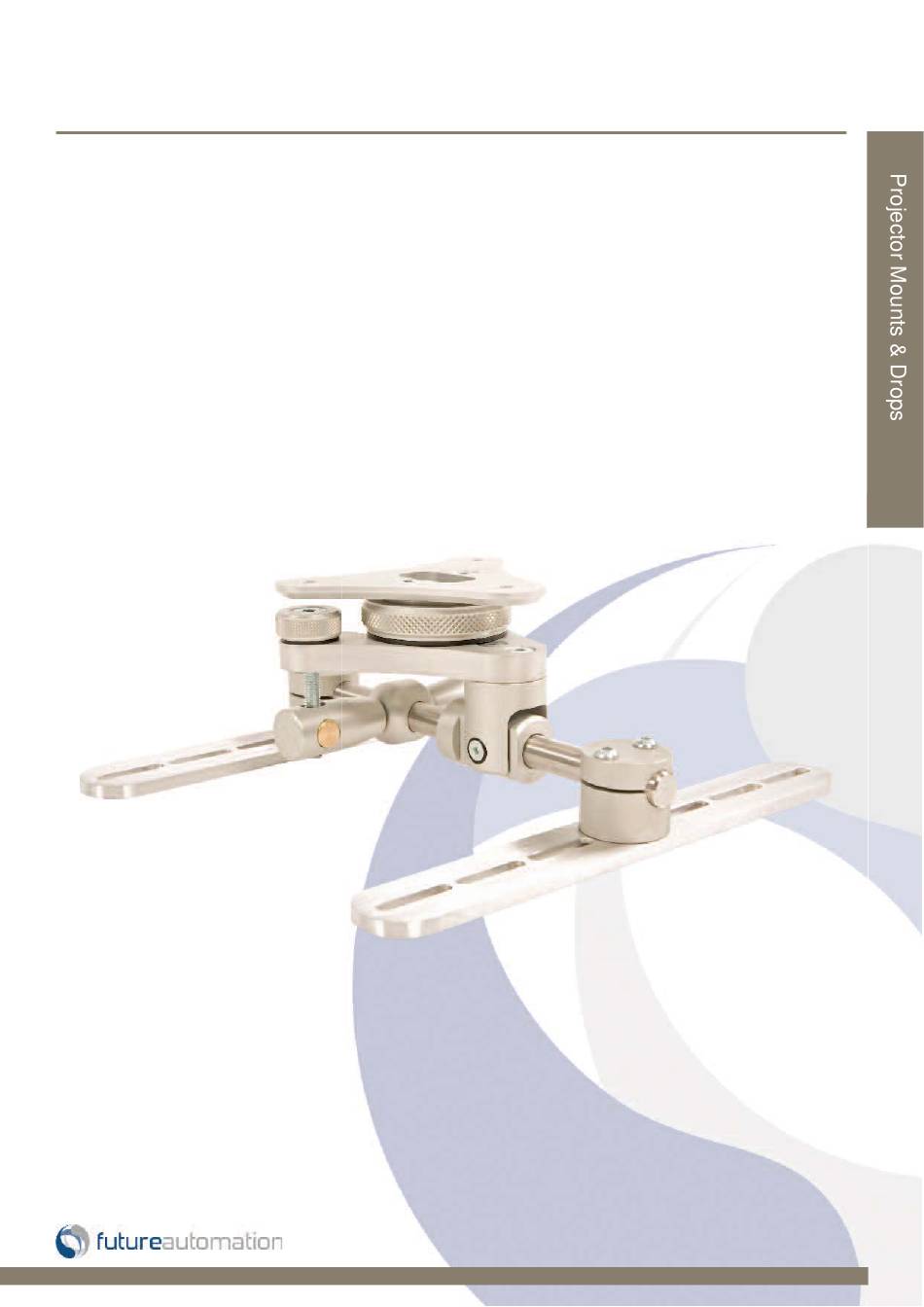

PM - Projector Mount System
Design Highlights
-Beautiful Anodised Aluminium Finish
-Complete Lead-Screw Adjustment of All Pitches of Angle
-Range of Fixed and Telescopic Poles Available
-Range of Mount Plates for Neatest Possible Mounting
-Hook on, Hook off Installation
Thank you for choosing
futureautomation
email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565
ISSUE 003
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Future Automation PM
Summary of Contents for Future Automation PM
- Page 1 Installation Instructions PM - Projector Mount System Design Highlights -Beautiful Anodised Aluminium Finish -Complete Lead-Screw Adjustment of All Pitches of Angle -Range of Fixed and Telescopic Poles Available -Range of Mount Plates for Neatest Possible Mounting -Hook on, Hook off Installation...
-
Page 2: Safety Information
Exceeding the weight capacity can result in serious personal injury or damage to equipment. Future Sound & Vision trading as Future Automation intend to make this and all documentation as accurate as possible. However, Future Automation makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. -
Page 3: Table Of Contents
Wall Mount Stage 3 Mounting the Projector Stage 4 Connecting The PM System To The Locking Collar Stage 5 Projector Adjustment Technical Overview Page 2 of 14 // email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565... -
Page 4: Contents
Any damage to products during transit that is not checked and notified as “unchecked” or “damaged” upon receipt of delivery. Any part of your system that needs to be replaced during a warranty repair becomes the property of Future Automation. -
Page 5: Package Contents
PM - Projector Mount System PM Package Contents You should receive you’re product in 3 separate packs. Pack 1 Main Body & Front and Rear Bar Clamps & Standard Projector Mount Kit Pack 3 Mount Type Pole or Flush to Ceiling Pack 2 Cross Bar &... -
Page 6: Assembly Construction
PM - Projector Mount System Assembly Construction Construct the PM System as shown below. Slide the projector bar through the main body and then fix the front and rear bar clamps to each end of the bar. Position the cross plates to match the mounting pattern on the projector being used. -
Page 7: Flush Mount
PM - Projector Mount System Mark around fixing holes using a pencil with mount on the ceiling in Flush Mount the desired location. Make sure that the mount will be the correct distance Flat ceiling option - Projector top sits 100mm from the projector screen. -
Page 8: Pole Mount
PM - Projector Mount System Pole Mount Pole option - Projector top sits 250mm [9.8”], 500 [19.7”] and 750mm [29.5”] away from the ceiling, bespoke sizes can be manufactured. With 360 degrees rotation available. 2 - Slide the collar back to access the... -
Page 9: Telescopic Pole Mount
PM - Projector Mount System Telescopic Pole Mount 2 - Slide the collar back to access the Telescopic pole option - Projector top sits 400 [15.7] mounting holes to 700mm [27.6”] and 700 [27.6] to 1300mm [51.2”] away from the ceiling, bespoke sizes can be manu- 1 - Move the ‘O’... -
Page 10: Wall Mount
PM - Projector Mount System Wall Mount Wall option - The arm sits 300mm [11.8”] from the wall to the centre of the locking collar, bespoke sizes can manufactured. Up to 360 degrees rotation available as long as the projectors movement isn’t restricted by the wall. -
Page 11: Mounting The Projector
PM - Projector Mount System Mount the Projector Arrange the cross bars so they line up with the fixing holes on the projector. Use the fixings provided to secure into place. If you can’t get the mounting plate to fit... -
Page 12: Connecting The Pm System To The Locking Collar
PM - Projector Mount System Connecting the PM system to the locking collar Hook the main body on to the bottom of the ceiling mount part of the system. Tighten the large nut down to secure the main body in place. -
Page 13: Projector Adjustment
PM - Projector Mount System Projection Adjustment The position of the projector can be pitched and/or tilted by adjusting 2 knurled knobs on top of the main body. 4 WAY MOVEMENT Rotate both knobs in SAME DIRECTION to adjust TILT... -
Page 14: Technical Overview
PM - Projector Mount System A general technical overview of the PD3 & 4 projector drop mechanism. Page 13 of 14 // email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565... - Page 15 PM - Projector Mount System Notes... Page 14 of 14 // email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565...
- Page 16 Future Automation Unit 2 Kimpton Enterprise Park Claggy Road Kimpton Hertfordshire SG4 8HP United Kingdom Tel: +44 (0) 1438 833 577 Fax: +44 (0) 1438 833 565 Email: info@futureautomation.co.uk www.futureautomation.co.uk...
