Installation Instructions

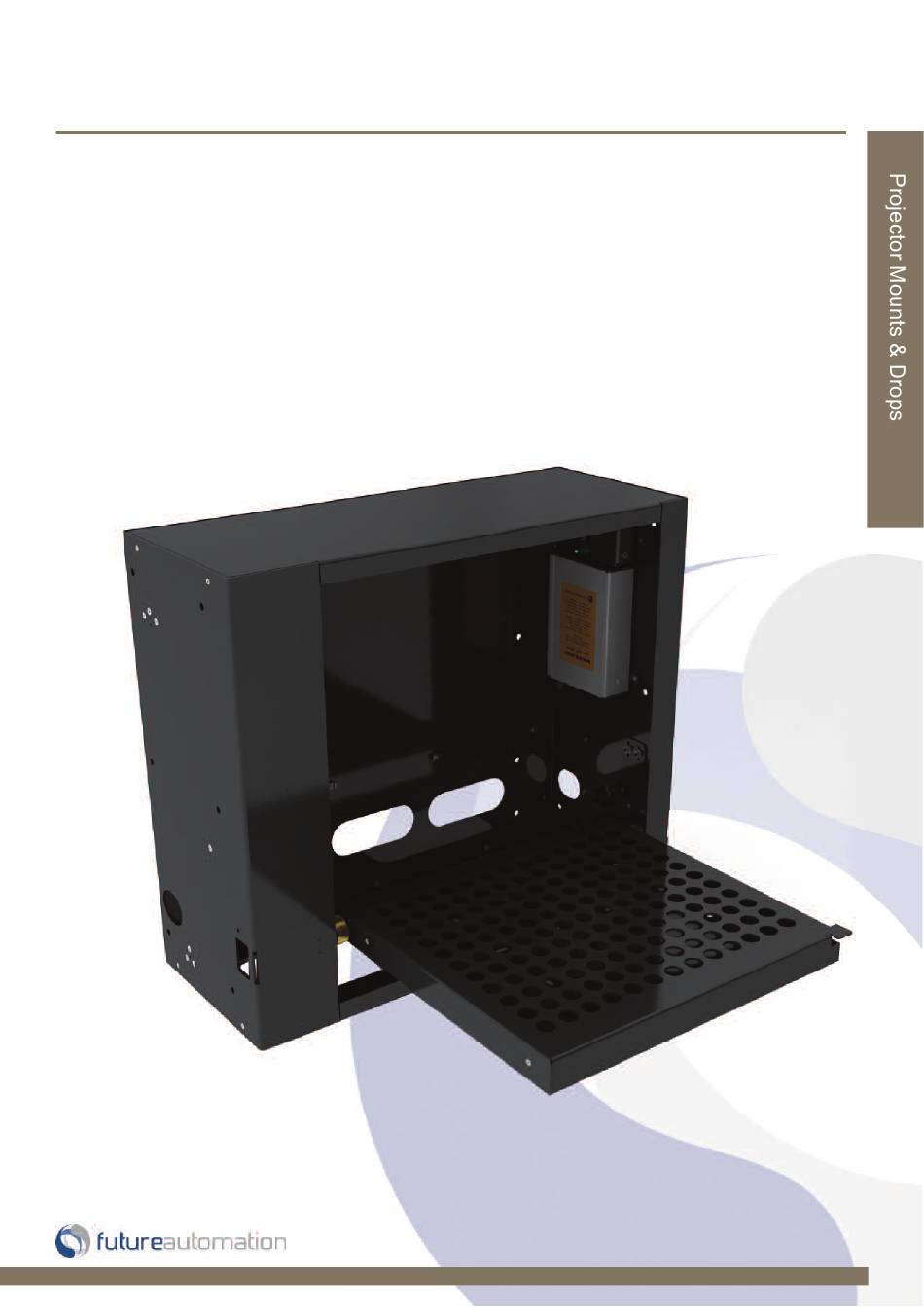

PH2 - Projector Hinge
Design Highlights
-Outputs for 3rd Party Product Control
-Cassette Housing for Ease of Installation
-Full Cable Management
-Innovative Design
Thank you for choosing
futureautomation
email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565
ISSUE 004
Advertisement
Table of Contents
Related Manuals for Future Automation PH2
Summary of Contents for Future Automation PH2
- Page 1 Installation Instructions PH2 - Projector Hinge Design Highlights -Outputs for 3rd Party Product Control -Cassette Housing for Ease of Installation -Full Cable Management -Innovative Design Thank you for choosing futureautomation email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565...
-
Page 2: Safety Information
Exceeding the weight capacity can result in serious personal injury or damage to equipment. Future Sound & Vision trading as Future Automation intend to make this and all documentation as accurate as possible. However, Future Automation makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. -
Page 3: Table Of Contents
PH2 - Projector Hinge Contents Page Introduction Safety Information Contents Contents Tool Indicator Icons Installation Parts List Package Contents Stage 1 Testing Before You Start; Check Stage 2 Creating The Void Control Box Set up Stage 3 Installation Of The Mechanism Into The Wall Stage 4 Cable Management &... -
Page 4: Contents
Any damage to products during transit that is not checked and notified as “unchecked” or “damaged” upon receipt of delivery. Any part of your system that needs to be replaced during a warranty repair becomes the property of Future Automation. -
Page 5: Parts List
PH2 - Projector Hinge Package Contents Nuts & Bolts Multipack: 1 - Mechanism A range of nuts, bolts, washers and 1.1 - Inner Wall Carriage spacers to help add in the mounting 1.2 - Projector Plate for your screen 1.3 - Pivot Hinge 1.4 - Hinge Lock... -
Page 6: Testing
PH2 - Projector Hinge Testing Before you start testing, check the following: - The product is in good condition - No damage to any parts - Wiring is all secure - The unit is in the closed position - Test the mechanism... -
Page 7: Creating The Void
PH2 - Projector Hinge Creating the void in the wall - Hole size for mechanism: PH2 - Width 800mm Height 710mm Depth 300mm - Clear space free from joists and other objects - Secure timber joists in place to support the unit left, right top and bottom - ORGANISE CABLES READY TO THREAD THROUGH THE MECHANISM [31.5]... -
Page 8: Installation Of The Mechanism Into The Wall
PH2 - Projector Hinge Installation of the mechanism into the wall -ORGANISE THE CABLES READY TO THREAD THROUGH THE CABLE HOLES ON THE SIDE OF THE PRODUCT! -Secure into internally out into the joist frame work -Check the mechanism and movement Holes for cables to be threaded through. -
Page 9: Cable Management & Cladding
PH2 - Projector Hinge Cable Management & Cladding Secure the mechanism in place from the inside using the fixing holes in the sides and back. Thread cables through access holes in the mechanism. Cable Management Clips Cable Access Holes Fixing Holes... -
Page 10: Securing The Panel
PH2 - Projector Hinge Sticky Pad Securing The Moving Panel Under Tray Close the mechanism and place sticky pads on the under tray as shown. Offer the moving panel into place with a 5mm equal gap all round. Push against sticky pads to secure in place. -
Page 11: Mounting The Front Panel
PH2 - Projector Hinge Mounting Front Panel Open the mechanism and remove all 4 side locking bolts to release the under tray. 4 x Side Locking Bolts Remove the under tray and moving panel as shown and secure together using the appropriate fixings. -
Page 12: Mounting The Projector
PH2 - Projector Hinge Mounting The Projector Mount the projector in place and connect the necessary cables. Secure projector down from the underside using the appropriate fixings. Make sure there is enough slack in the cables so the mechanism can move without straining them. -
Page 13: Switch Adjustment
PH2 - Projector Hinge In & Out Position Adjustment Turn the screws that hold the switches in place to adjust the IN and OUT position. Once the mechanism is installed there might be a little under or over travel which can be sorted by adjusting these switches. -
Page 14: Electrical Connections In The Control Box
PH2 - Projector Hinge Electrical Connections & Control Box Connect the control box to the DC power supply and the power supply to the mains Connect infrared sensor here Page 13 of 20 // email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565... -
Page 15: Contact Closure
PH2 - Projector Hinge Contact Closure Use an RJ45 connector in the CCI socket on the control box to operate via contact closure WIRE / CABLE CONTACT CLOSURE DESCRIPTION ACTION 568A 568B LED INDICATOR 12V SUPPLY 12V SUPPLY - CURRENT LIMITED When 12V attached, device will go OUT. -
Page 16: Warning Lights
PH2 - Projector Hinge RS232 - Use an RJ25 connector in the socket marked RS232 on the control box to operate using RS232 Details RJ25 9 PIN D Baud rate: 9600 Stop bit: PIN 1: RX PIN 2: TX Parity:... -
Page 17: Remote Control
PH2 - Projector Hinge Replacing batteries Future Automation IR Remote Controller needs x2 AAA batteries which are provided within the packaging. Operation Buttons In - Raises the Stop - Will stop mechanism the operation at any point Out - Lowers the... -
Page 18: Trouble Shooting
PH2 - Projector Hinge PH2 Projector Hinge Mechanism - Trouble shooting? For information on our products or trouble shooting please refer to our web site - www.futureautomation.co.uk or for questions on installations and our product range please phone us on - +44(0) 1438 833577 and ask for our technical support department Page 17 of 20 // email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565... - Page 19 PH2 - Projector Hinge Test motor operation If the lift is not working, you can test the motor directly. To do so, you will need to locate and open the control box. CAUTION. Apply mains voltage taking all necessary grounding precautions.
-
Page 20: Technical Overview
PH2 - Projector Hinge A general technical overview of the PH2 projector hinge mechanism. Product Dimensions 800x300x710mm (W,D,H) [31.5x11.8x28"] Weight (Kg) 35Kg [77.2lb] Power Consumption 110W Power Consumption On Standby Lifting Capacity (Kg) 25Kg [55.1lb] Standard Colour Black / White... - Page 21 PH2 - Projector Hinge Notes... Page 20 of 20 // email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565...
- Page 22 Future Automation Unit 2 Kimpton Enterprise Park Claggy Road Kimpton Hertfordshire SG4 8HP United Kingdom Tel: +44 (0) 1438 833 577 Fax: +44 (0) 1438 833 565 Email: info@futureautomation.co.uk www.futureautomation.co.uk...
