Summary of Contents for Future Automation PDR-RES

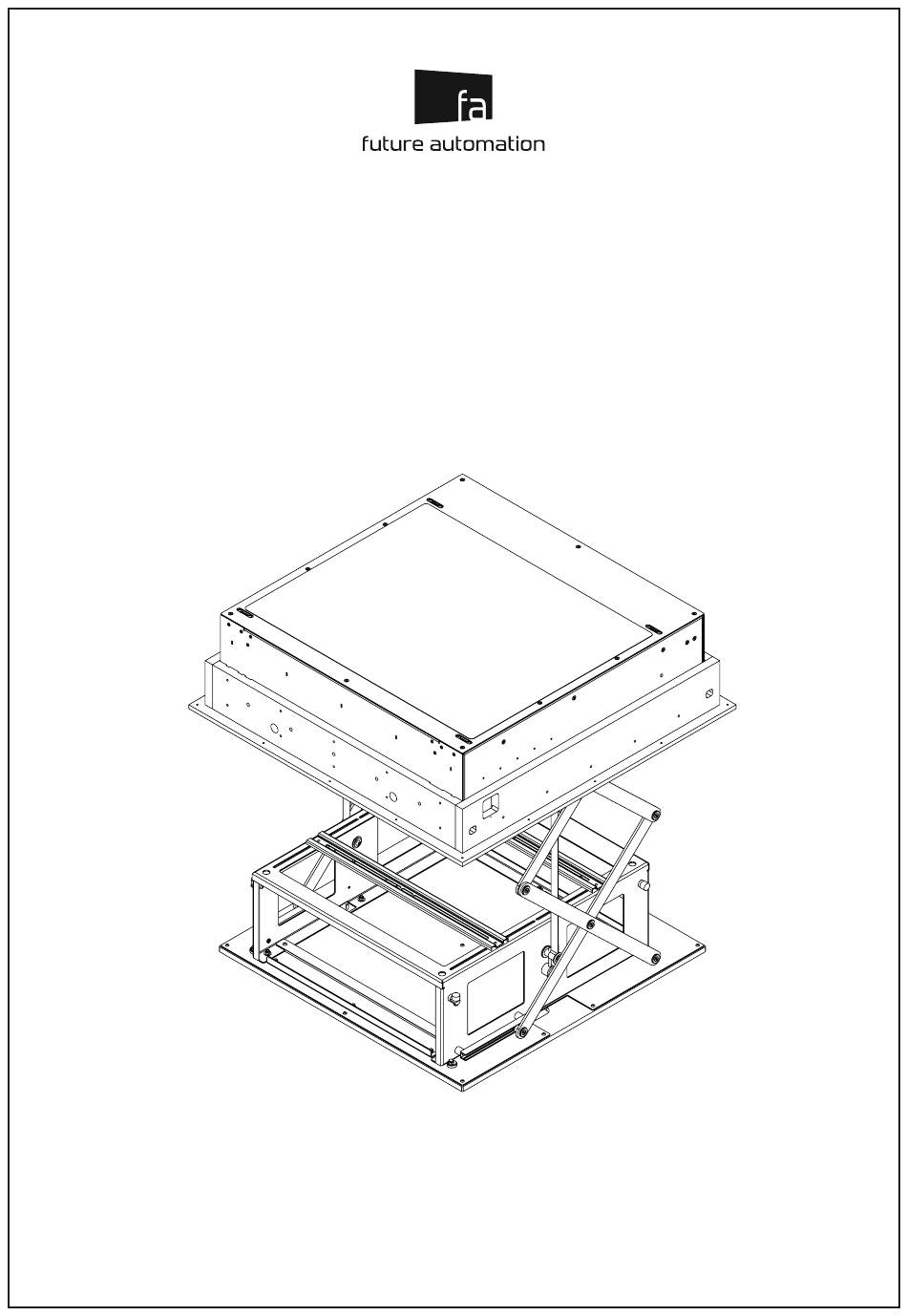

- Page 1 PDR -RE S P DR2 - R E S / PD R 3 - R E S PR O JECT O R DR OP R A N GE R E SI DE N T IA L I N S TA L LA T I O N I N ST R U CTI ON S I SSUE 004...
- Page 3 Clean only with a dry cloth and always unplug any electrical items being used in conjunction with this product before cleaning. Future Sound & Vision trading as Future Automation intend to make this and all documentation as accurate as possible. However, Future Automation makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product.
- Page 4 Under the warranty, Future Automation aims to either solve the issue remotely (via telephone or email support) or if the mechanism requires a part, arrange a visit to your premises by a Future Automation approved engineer or send replacement items where appropriate.
-
Page 5: Gui D E C O Nt E Nts
GUI D E C O NT E NTS SAFE TY DISCLA IM ER PR OD UCT WA RR A NT Y & RISK ASSESS M EN T GUIDE C ONT ENTS PACKA GE CONTENT S MECH ANISM QUICK-ST A RT GUI D E CEILING JOISTS CEILING FRA ME INST A LLA TION MECH ANISM INSTA LL AT ION... - Page 6 P A CK A G E CO NT E N T S 1 - PDR2/PDR3 1.1 - BASE PANEL ASSEMBLY 1.2 - PROJECTOR CARRIAGE 1.3 - MAIN BOX 1.4 - SCISSOR ARMS 1.5 - SLIDER CHANNEL 1.6 - TOP COVER LID 1.7 - CABLE INSTALL AIDE 1.8 - MDF PLASTER EDGE CEILING FRAME 2 - CONTROL BOX (SIZE/STYLE MAY VARY)
- Page 7 MEC HA NI SM QUI CK - S TART GUI DE Some Future Automation mechanisms may ship with the control box disconnected to prevent damage during transit. In order to operate the mechanism, the control box will need to reconnected, then have mains power applied along with the desired control method.
- Page 8 CEI LIN G JOIS T S Check joist separations and cut cable hole. Front PDR2 [28 3/4”±1/16”] [28 3/4”±1/16”] [3 7/8”] [2 3/4”] [2 15/16”] 730±2mm 730±2mm 98mm 70mm 75mm PDR3 [36”±1/16”] [36”±1/16”] [4”] [3 5/8”] [2 15/16”] 915±2mm 915±2mm 102mm 92mm 75mm...
-
Page 9: Installation
C EILING FRAME I N STA LLATION Front... - Page 10 CEI LIN G FRAM E IN S T A L L A TI ON CONT. Projector Cables e.g. Mains Power HDMI, Ethernet PDR2-400 PDR2-700 PDR2-900 PDR3-740 PDR3-1200 [63”] [74 13/16”] [84 5/8”] [90 9/16”] [110 1/4”] 1600mm 1900mm 2150mm 2300mm 2800mm Cable Tie Cable Install Aide...
- Page 11 CEI LIN G FRAM E IN S T A L L A TI ON CONT. 12.5mm [1/2”] Plasterboard/ Gyproc 3mm [1/8”] Plaster Skim...
- Page 12 MEC HA NI SM IN S T A L L A TI ON Do not attempt to install PDR mechanism with the Base Panel Assembly attached. Install Catch Front...
-
Page 13: I N Sta Llation Con T
MECHANISM I N STA LLATION CON T. Use all fixing points. PDR2 x 8 PDR3 x 10 M6x20mm (Supplied) Lift approximatley 5mm [3/16”] to align holes. - Page 14 M E CH A N I S M IN S TAL L A T IO N C O N T.
- Page 15 P R OJ EC TOR IN S T A L L A TI ON Projector cables can now be run through the provided cable chain. Fall Arrest Cable Fastening...
- Page 16 P ANEL A DJ U ST MENT LEFT 13mm 10mm RIGHT...
- Page 17 P AN EL ADJU S T MEN T C ONT. FORWARD BACKWARD...
- Page 18 D RO P ADJU S T MEN T By default the Projector Drop mechanism will be factory set to its longest drop distance. PDR2...
- Page 19 D ROP A DJ U ST MENT CONT. By default the Projector Drop mechanism will be factory set to its longest drop distance. PDR3 Press [ OUT ] . Press [ STOP ] at desired drop. • Press motor [ YELLOW ] x 2 to set position.
- Page 20 MEC HA NI SM LEVE LL I N G...
- Page 21 P R OJ EC TOR TIL T (PDR2 ONL Y)
- Page 22 FINAL/PERIODIC CH EC K S • Check the mechanism is operating correctly. • Check the projector is secure during transportation. • Check the straps and scissors are free from obstruction. • Check cable routing and check that enough slack is left for free movement. •...
- Page 23 RECOV ERY I N P O SI TION In the event the PDR needs recovering from its in position holes can be cut in the MDF bottom panel in the areas on both sides of the panel shown below. This will give access to be able to release the straps and lower the carriage for servicing.
- Page 24 REPLACING MECHANISM BATTERIES The standard Future Automation Infrared (IR) remote control required x2 AAA batteries to operate. These are provided with the mechanism in the Accessories Pack. These batteries can be replaced as the per the image below.
- Page 25 INF RA RE D (I R) This mechanism can be controlled via the supplied 14 button Infrared (IR) Remote Control, paired with the supplied Infrared (IR) lead and sensor. The mechanism's functions can be controlled by plugging the Infrared (IR) lead and sensor into the 3.5mm IR Input Jack shown on the General Mechanism Control page.
-
Page 26: Radio Frequency
RA DIO FREQUE NCY ( RF) If purchased with the Radio Frequency (RF) control option, this mechanism can be controlled via the supplied 4 button Radio Frequency (RF) Remote Control, paired with the in-built Radio Frequency (RF) sensor. Confirmation of Radio Frequency (RF) input will be shown by a single flash of the large green LED located on the end of the control box. -
Page 27: Con T Ac Tclos U Re
CON T AC T CLOS U RE This Mechanism can be controlled via Contact Closure, utilising an 8 Pin RJ45 Connector attached to a length of CAT5 (Type 568A or 568B) cable. The mechanism’s functions can be controlled by plugging this into the RJ45 port on the mechanism control board, then shorting pins 1-8 on this connector as shown in the Contact Closure Input Table below. - Page 28 RS2 32 CON T RO L This Mechanism can be controlled via RS232, utilising a 6 Pin RJ11/RJ25 connector OR 9 Pin Serial connector attached to a length of 6 core cable. The mechanism's functions can be controlled by plugging this into the RJ11/RJ25 port on the mechanism control box, then inputting the RS232 commands shown in the RS232 Input Table below.
- Page 29 SCREEN C ONT ROL The control box for the PD Projector Lift mechanism’s has the ability to power a 240v/110v projection screen, enabling the projection screen and Projector Lift to open/close at the same time. The control board also has the ability to delay the closing of the Projector Drop mechanism for 3 minutes after issuing the IN command, to allow the projector inside to cool after operation.
- Page 30 NO T E S :...
- Page 31 NO T E S :...
- Page 32 EUROPEAN OFFICE NORTH AMERICAN OFFICE Address: Address: Unit 6-8 Enterprise Park Brunel Road 127 Venture Drive Bedford Dover Bedfordshire MK41 9TG 03820 Phone: +44 (0) 1438 833577 Phone: +1 (603) 742 9181 Email: info@futureautomation.co.uk Email: info@futureautomation.net Office Hours: Office Hours: Mon - Fri 8:00 to 17:30 GMT Mon - Fri 7:00 to 17:00 EST Saturday &...
