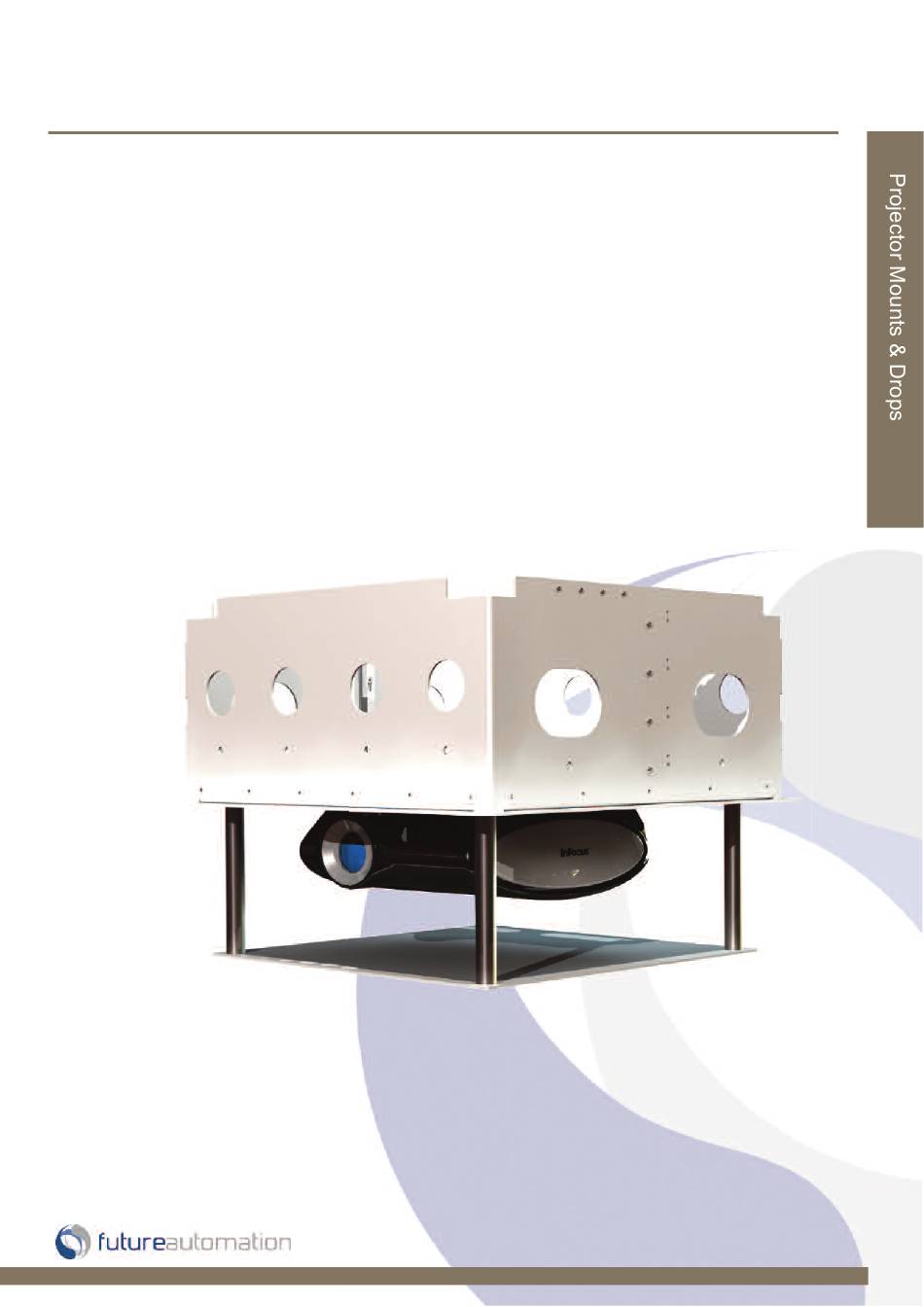

Installation Instructions
PDM1, 2 & Custom - Projector Drop
Mechanism
Design Highlights
-Outputs for 3rd Party Product Control
-Cassette Housing for ease of Installation
Thank you for choosing
futureautomation
email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565
ISSUE 006
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Future Automation PDM1
Summary of Contents for Future Automation PDM1
- Page 1 Installation Instructions PDM1, 2 & Custom - Projector Drop Mechanism Design Highlights -Outputs for 3rd Party Product Control -Cassette Housing for ease of Installation Thank you for choosing futureautomation email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565...
- Page 2 Exceeding the weight capacity can result in serious personal injury or damage to equipment. Future Sound & Vision trading as Future Automation intend to make this and all documentation as accurate as possible. However, Future Automation makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product.
- Page 3 PDM1, 2 & Custom - Projector Drop Mechanism Contents Page Introduction Safety Disclaimer Warning Icons Contents Tool Indicator Icons Installation Package Contents Before You Start Check Stage 1 Creating The Void In The Ceiling Stage 2 Setup Installment Of The Unit Into The Ceiling...
- Page 4 PDM1, 2 & Custom - Projector Drop Mechanism Before you start check, check the following: - The product is in good condition - No damage to any parts - Wiring is all secure - The unit is in the closed position...
- Page 5 PDM1, 2 & Custom - Projector Drop Mechanism Important Make sure to test that the mechanism is working correctly Cutting the void in the ceiling - Hole size - PD1 - 580 x 580mm sq PD2 - 630 x 630mm sq...
- Page 6 PDM1, 2 & Custom - Projector Drop Mechanism Set Up MAKE SURE THE BOTTOM PLATE Installment of the unit into the ceiling IS REMOVED SO YOU CAN ACCESS -Remove bottom plate THE FIXING HOLES! -Remove Locking mount and attach projector as shown...
- Page 7 PDM1, 2 & Custom - Projector Drop Mechanism Final checks - Check the mechanism is working correctly - Make sure the unit is fully out as shown - Make sure the projector is secure using the range of nuts, bolts and washers provided...
- Page 8 PDM1, 2 & Custom - Projector Drop Mechanism Connections - The mechanism must be connected to both the AC1 and DC1 - Optional - Electric screen can be connected using the control box using the AC2 block - The AC2 output can only control a 240V / 110V motorised screen to work simultaneously...
-
Page 9: Pin Description
PDM1, 2 & Custom - Projector Drop Mechanism Contact Closure - Use an RJ45 connector in the CCI socket on the control box to operate via contact closure WIRE / CABLE CONTACT CLOSURE DESCRIPTION ACTION 568A 568B LED INDICATOR 12V SUPPLY 12V SUPPLY - CURRENT LIMITED When 12V attached, device will go OUT. -
Page 10: Emergency Stop
PDM1, 2 & Custom - Projector Drop Mechanism RS232 - Use an RJ25 connector in the socket marked RS232 on the control box to operate using RS232 Pin 1: RX Pin 6 : TX Pin 2: TX Pin 3 & 4: GROUND... - Page 11 PDM1, 2 & Custom - Projector Drop Mechanism Replacing batteries Future Automation IR Remote Controller needs x2 AAA batteries which are provided within the packaging Operation Buttons In - Raises Stop - Will stop the projector the operation at any point...
- Page 12 PDM1, 2 & Custom - Projector Drop Mechanism PDM1 Projector Drop Mechanism - Trouble shooting guide Having problems? - Check the following: 1. Are all the connections correct? 2. Is the mechanism being operated correctly? If the mechanism does not operate correctly, check the items listed in the table below.
- Page 13 PDM1, 2 & Custom - Projector Drop Mechanism Test motor operation If the lift is not working, you can test the motor directly. To do so, you will need to locate and open the control box. CAUTION. Apply mains voltage taking all necessary grounding precautions.
- Page 14 PDM1, 2 & Custom - Projector Drop Mechanism A general technical overview of the PDM1 & PDM2 projector drop mechanism PDM1 PDM2 Product Dimensions (W,D,H) 575x575x210mm 625x625x210mm Weight (Kg) 20Kg 25Kg Power Consumption 110W 110W Power Consumption on Standby Lifting Capacity...
- Page 15 Any damage to products during transit that is not checked and notified as “unchecked” or “damaged” upon receipt of delivery. Any part of your system that needs to be replaced during a warranty repair becomes the property of Future Automation.
- Page 16 Future Automation Unit 2 Kimpton Enterprise Park Claggy Road Kimpton Hertfordshire SG4 8HP United Kingdom Tel: +44 (0) 1438 833 577 Fax: +44 (0) 1438 833 565 Email: info@futureautomation.co.uk www.futureautomation.co.uk...
