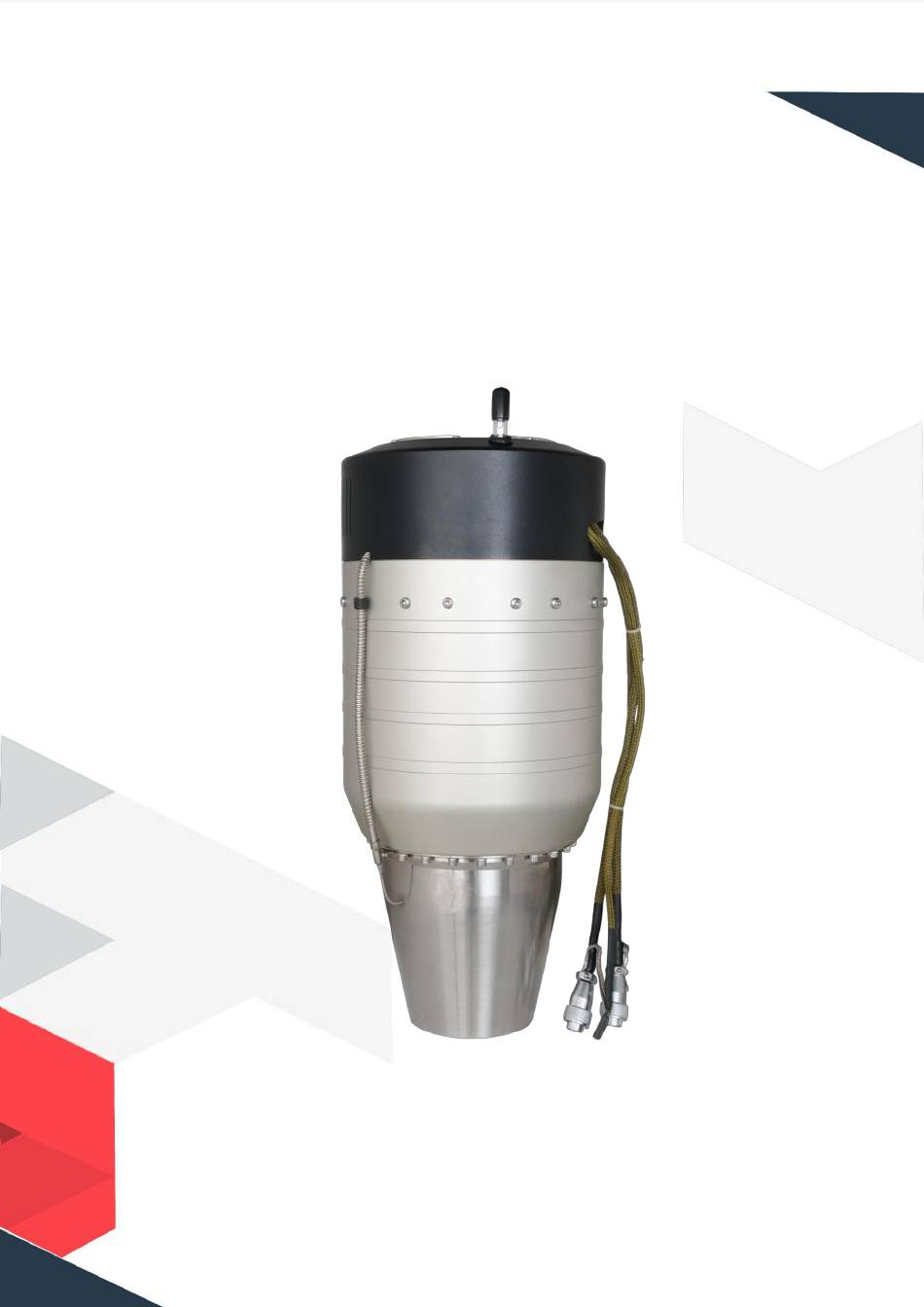

- Page 1 SWIWIN SW800PRO-Y ENGINE TECHNICAL MANUAL http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD...
- Page 2 engine.
-
Page 3: Table Of Contents
4. INSTALLATION AND DEBUGGING..............13 5. ENGINE USAGE INSTRUCTIONS..............14 5.1 ENGINE PACKING LIST................14 5.2 ENGINE CONNECTION DIAGRAM............15 5.3 DEFINITION OF PIN CORRESPONDING INTERFACE....... 17 5.4 REGARDING THE CONTROL PROTOCOL........... 18 5.5ENGINE CONNECTION INSTRUCTIONS DIFFERENT Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... - Page 4 5.6.8 OTHER PARAMETER SETTING INTERFACE......30 5.6.9 TEST PARAMETER SETTING INTERFACE........31 5.6.10 DATA CHART DISPLAY INTERFACE..........31 5.6.11 SET LANGUAGE INTERFACE............32 5.6.12 TEMPERATURE CORRECTION............33 6. ENGINE DEBUGGING..................34 6.1 ENGINE ASSEMBLY..................34 6.2 ENGINE TEST RUN..................34 Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD...
- Page 5 SERIAL PORT ADAPTER CABLE CONNECTORS....................44 9.2UPGRADER COMPATIBILITY..............44 10. STORAGE、LUBRICATION AND OIL TANK..........45 10.1STORAGE AND LUBRICATION...............45 10.2ENGINE OIL TANK..................45 11. ENGINE MAINTENANCE AND UPKEEP............46 12. AFTER SALES SERVICE................. 47 13. DISCLAIMER....................... 50 Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD...
-
Page 6: Product Overview
1.PRODUCT OVERVIEW welcome to use the swiwin sw800pro-y engine. thank you very much for your trust and support. this engine has the following characteristics: 1. as a new type of high thrust turbojet engine, sw800pro-y has advantages such as flameout restart, 5000 meter low-temperature start, high ceiling, and high thrust to weight ratio, providing users with a better experience. -
Page 7: Product Specifications
2.PRODUCT SPECIFICATIONS 2.1 DIMENSIONAL DRAWING Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... -
Page 8: Basic Parameters Of Engine
300m/s supply voltage 18v-32v starting system one key electronic start rpm range 25,000-65,000 exhaust temperature 750℃ fuel consumption 1850g/min fuel aviation kerosene lube oil 3%-5% maintenance cycle 25h/time Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... -
Page 9: Parameters Of Engine Operation Control
0.8s ejection voltage run voltage 2.5V rpm stable cool 2,000 rpm note: all data are measured at isa condition（temperature：15℃＆pressure：1atm）. Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... -
Page 10: Safety Instructions
3. SAFETY INSTRUCTIONS 3.1 SAFETY NOTICE 1.thank you for using the swiwin micro turbojet engine. the working state of the turbojet engine is essentially highly extreme mechanical work, which poses a certain degree of danger. the operator must be familiar with the operating points and recognize the risks before use. -
Page 11: Engine Noise Protection
2. testers should seek medical attention promptly if they experience any adverse reactions (including but not limited to dizziness, tinnitus, nausea, loss of appetite, difficulty breathing, arrhythmia, etc.). Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... -
Page 12: Safe Distance
5 meters in front of the engine (intake direction) and 40 meters on both sides. when the engine is running, all personnel must be in a safe area. Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... -
Page 13: Hazardous Areas Of The Engine
personnel. -
Page 14: Fire Handling Methods
0.5 seconds to pulse inject carbon dioxide into the interior of the aircraft. 3.if there is scattered fuel on the ground, try to tow the aircraft away from the danger zone first, and then extinguish the flames on both the aircraft and the ground. Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... -
Page 15: Installation And Debugging
4. INSTALLATION AND DEBUGGING SWIWIN SW800PRO-Y ENGINE INSTALLATION FIXED ENGINE sw800pro-y engine are equipped with dedicated fixing clamps. before operating the engine, the clamp has already been installed on the engine. you only need to fix the clamp on the test bench. -
Page 16: Engine Usage Instructions
5.1 ENGINE PACKING LIST open the package, the engine packing list is as follows Connector RS232 serial port Engine body Fixed Bracket Upgrade Tool (One to Two) Power cable Signal plug k7 Power Plug K2 Tubing Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... -
Page 17: Engine Connection Diagram
5.2 ENGINE CONNECTION DIAGRAM open the packaging, familiarize yourself with each component, and connect them as shown in the following diagram. (receiver, battery, remote control, and computer need to be provided by oneself) RS232/422 SERIAL PORT TOOL Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... - Page 18 (diffuser, shaft tube, combustion chamber, nozzle ring, hardened intake port, etc.), rotor system (impeller, main shaft, inlet bearing, rear turbine, etc.), and all components are tightly matched with high...
-
Page 19: Definition Of Pin Corresponding Interface
efficiency. -
Page 20: Regarding The Control Protocol
2：R- 5：T- 6：T+ note: unless otherwise specified, the default ecu interface for sw800pro-y engine is defined as rs232, communication protocol zk, and baud rate 9600. if you need rs422 interface definition, please contact swiwin after-sales personnel to purchase. 5.4 REGARDING THE CONTROL PROTOCOL 1.throttle signal... - Page 21 ②The data recording content includes but is not limited to engine speed, engine throttle, oil pump voltage, engine status, and error messages. ③Provide engine data analysis software for post flight data analysis. Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD...
-
Page 22: Starting Modes
5.5ENGINE CONNECTION INSTRUCTIONS FOR DIFFERENT STARTING MODES 5.5.1 ENGINE CONTROLLED BY REMOTE CONTROL USE THE REMOTE CONTROL TO START THE CONNECTION METHOD (THE RECEIVER, BATTERY, REMOTE CONTROL, AND COMPUTER NEED TO BE PROVIDED) Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... - Page 23 25000 rpm, the engine reaches idle and the start is successful. afterwards, the engine does not require onboard battery power and can generate electricity autonomously, with a maximum output voltage of approximately 50v. Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD...
-
Page 24: 2Activate Connection Mode Using Rs232/422
5.5.2ACTIVATE CONNECTION MODE USING RS232/422 COMMUNICATION PROTOCOL Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... - Page 25 25000 rpm, the engine reaches idle and the start is successful. afterwards, the engine does not require onboard battery power and can generate electricity autonomously to meet operational needs. Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD...
-
Page 26: Gsu User Manual
②the oil pump value is the output voltage multiplied by 1000. for example, if the maximum speed output is 4.0v, it will display 4000; ③the temperature unit can be switched between celsius or fahrenheit and has calibration function; Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... -
Page 27: Ecu Setting Interface
pump voltage: the driving voltage of the oil pump during ignition. if the oil pump cannot rotate smoothly or waits for too long to rotate during each ignition, increase this value. control the oil output during startup, the higher the voltage, the more oil is supplied during startup. Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... - Page 28 GSU SCREEN ISPLAY： START-UP PUMP VOLTAGE： RPM STARTUP RAMP： PUMP STARTUP RAMP : GLOW PLUG: VALVE: IGNITION RPM: PREHEA tRPM: RPM OFF STARTER: Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD...
-
Page 29: Engine Operating Parameter Setting Interface
GSU CREENDISPLAY： ENGINE RUNNING RPM ACC: RPM DEC: MAX RPM: IDLE RPM: MIN RPM: MAX TEMP: LOW COLT: RESTART GLOW LUG: PUML IMIT: Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... -
Page 30: Interface
requirements uart-stop bit ： The factory setting is 2, which can be adjusted according to customer requirements GSU THE SCREEN WILL DISPLAY： RC STUDY MAX： IDLE： FAILSATETIME： PROTOCOL： UART-BAND RATE： UART-STOP BIT： Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... -
Page 31: Starting Motor Parameter Setting Interface
GSU THE SCREEN WILL DISPLAY RPM： Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... -
Page 32: Other Parameter Setting Interface
clearbatused: after the test is completed, reset all the battery used in the ecu to zero (for recording purposes) adjust temp: adjust according to the environment. pump type: adjust according to the oil pump used. Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... -
Page 33: Test Parameter Setting Interface
5.6.10 DATA CHART DISPLAY INTERFACE data chart: record the status of engine start-up and operation. different colored curves represent different meanings. green represents speed, red represents temperature, light blue represents oil pump, and blue represents voltage. Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... -
Page 34: Set Language Interface
5.6.11 SET LANGUAGE INTERFACE by selecting, the monitor can be set to different languages such as english, 中文（简体） , 中文（繁体） and espanol. GSU THE SCREEN WILL DISPLAY： SET LANGUAGE ENGLISH 中文（简体） 中文（繁体） SPANISH RESET CONFIG Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... -
Page 35: Temperature Correction
'ad just temp' and click '+-' to adjust the temperature up and down, keeping corrected temperature consistent with the ambient temperature. Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... -
Page 36: Engine Debugging
6. ENGINE DEBUGGING 6.1 ENGINE ASSEMBLY the sw800pro-y engine adopts an integrated design of engine body, ecu, and tcu, which is easy to install and use. this engine is a precision instrument composed of high-precision components. each new machine undergoes strict dynamic balancing, bare machine testing, and whole machine testing before leaving the factory, and the test results are recorded. -
Page 37: Brief Process Of Ground Testing
Shutdown cooling your needs accelerator Please test Percentage other functions control engine operation After the engine stops running, continue to dissipate heat for 3 minutes or use an auxiliary cooling device Complete the trial run Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... -
Page 38: Engine Installation
6.5 SAFETY the testing site and equipment meet the requirements, pay attention to personnel safety, and start the test (see safety instructions for details). Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... -
Page 39: Engine Operation Process Diagram
6.6 ENGINE OPERATION PROCESS DIAGRAM Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... -
Page 40: Parameters Related To Engine Startup And Operation
Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... -
Page 41: Frequently Asked Questions
4. check the wear starter assembly, clutch, and status of the clutch and replace it parameters. immediately if it is severely worn. 5. check Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... - Page 42 3. check if the screws of the compressor tighten all screws and wheel and rear turbine are tight. 4. check if components Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD...
- Page 43 Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD...
- Page 44 1. check if the spindle is rotating. 2. check if repair the starter motor or the display has each wire harness is short circuited. 3. spindle, repair various circuits current check if the battery is leaking or replace the battery. cannot ignite Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD...
-
Page 45: Ecu Error Fault Analysis
2. during preheating: the exhaust temperature is greater than the set maximum temperature value 3. during acceleration: the exhaust temperature is greater than the set maximum temperature value for 4 seconds Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... -
Page 46: Compatibility
SERVER 2003 （32、 64 位） /VISTA/WINDOWS 7 YHL-B232 AN EXTERNAL POWER SOURCE （32、64 位）、WINDOWS 8、WINDOWS10 EQUIPPED WITH 5V/500MA POWER OUTPUTS 9.2UPGRADER COMPATIBILITY NAME PERFORMANCE INDEX COMPATIBILITY SUPPORT COMPUTER SYSTEMS ： UPGRADER ----- WINDOWS7、WINDOWS 8、WINDOWS10 （ZK-LINK V1.4） Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... -
Page 47: Storage、Lubrication And Oil Tank
10. STORAGE、LUBRICATION AND OIL TANK 10.1STORAGE AND LUBRICATION 1.all models of swiwin engines can use kerosene or diesel as fuel, and are mixed with 3% -5% lubricating oil. this mixed lubricating oil is also used in the bearing lubrication system, and it is recommended to use xuan yun brand or mobil pegasus no.2 lubricating oil. -
Page 48: Engine Maintenance And Upkeep
time. -
Page 49: After Sales Service
2. swiwin promises to provide free product warranty service within the valid warranty period from the date of product sale, and customers do not need to pay for replacement parts. - Page 50 Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD...
- Page 51 3. if you need the engine to be returned to the factory for maintenance and repair, please log in to the official website of swiwin company http://www.swiwin.com or swiwin official account to contact customer service, fill in the 《...
-
Page 52: Disclaimer
Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD... - Page 53 Page http://www.swiwin.com SWIWIN TURBOJET EQUIPMENT CO.,LTD...
